Macintosh Classic II FPU card
author: Tobrew
2 layer board of 2.70 x 2.56 inches (68.6 x 65.0 mm)
Uploaded:
May 29, 2026
Shared:
May 29, 2026
Total Price:
$34.55

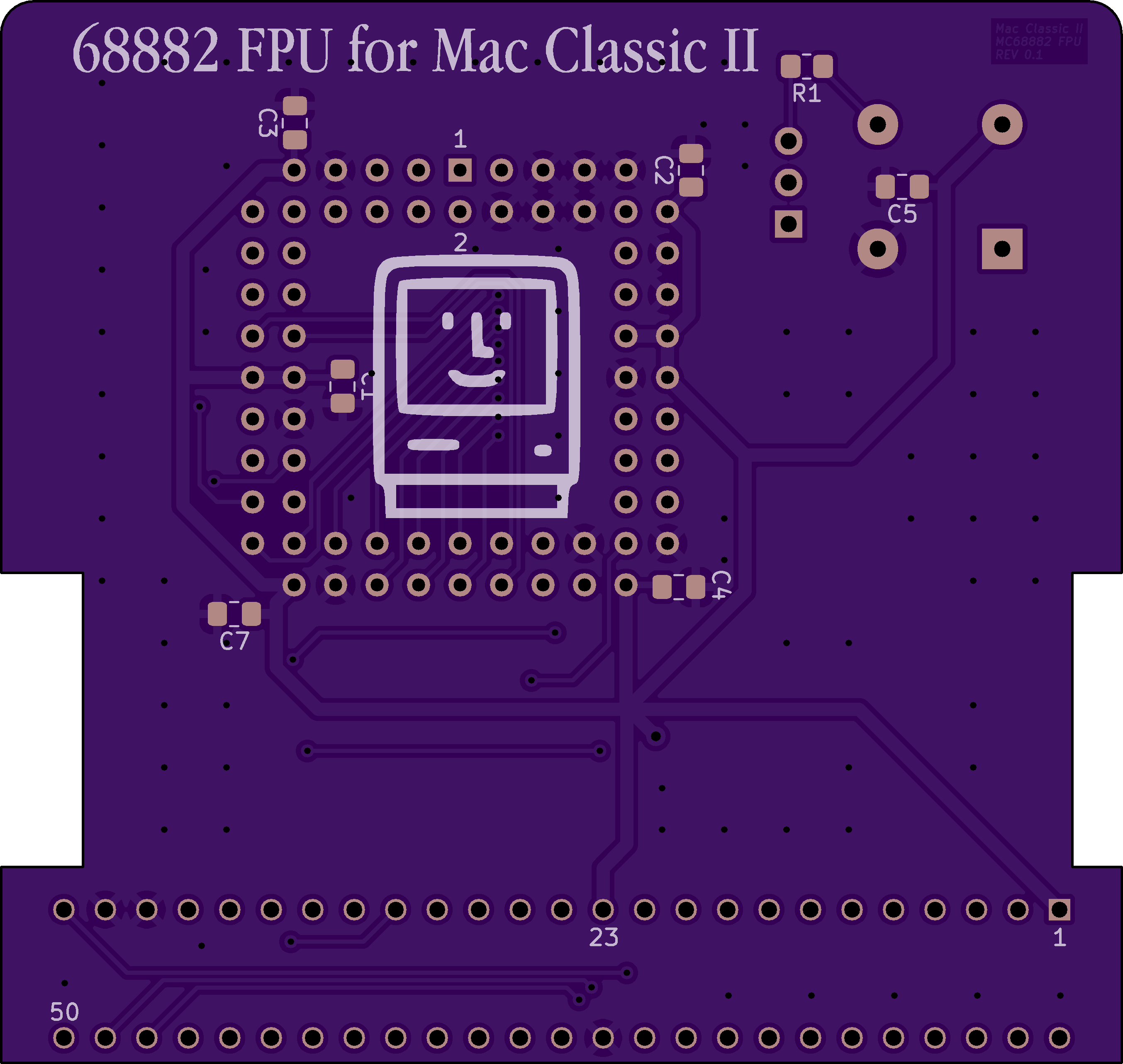

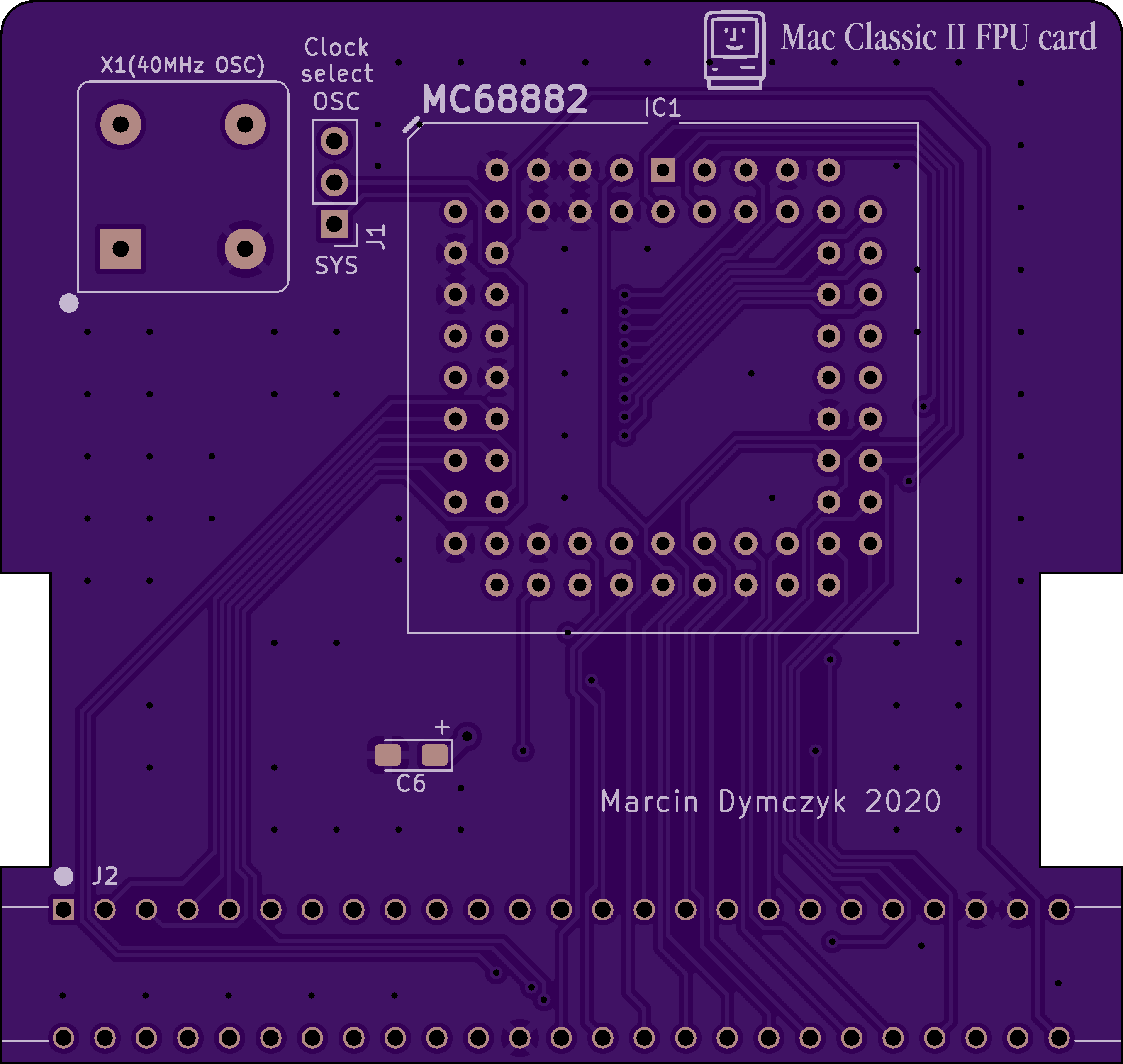

Expansion card that adds an MC68882 FPU to your Macintosh Classic II. The board has two layers to keep the PCB cost down. It offers a switchable clock source between the system clock (16 MHz, synchronous operation) and a crystal oscillator on the board (40 MHz, asynchronous operation; tested with MC68882FN40A, 50 MHz might also work).
Project by Marcin Dymczyk
