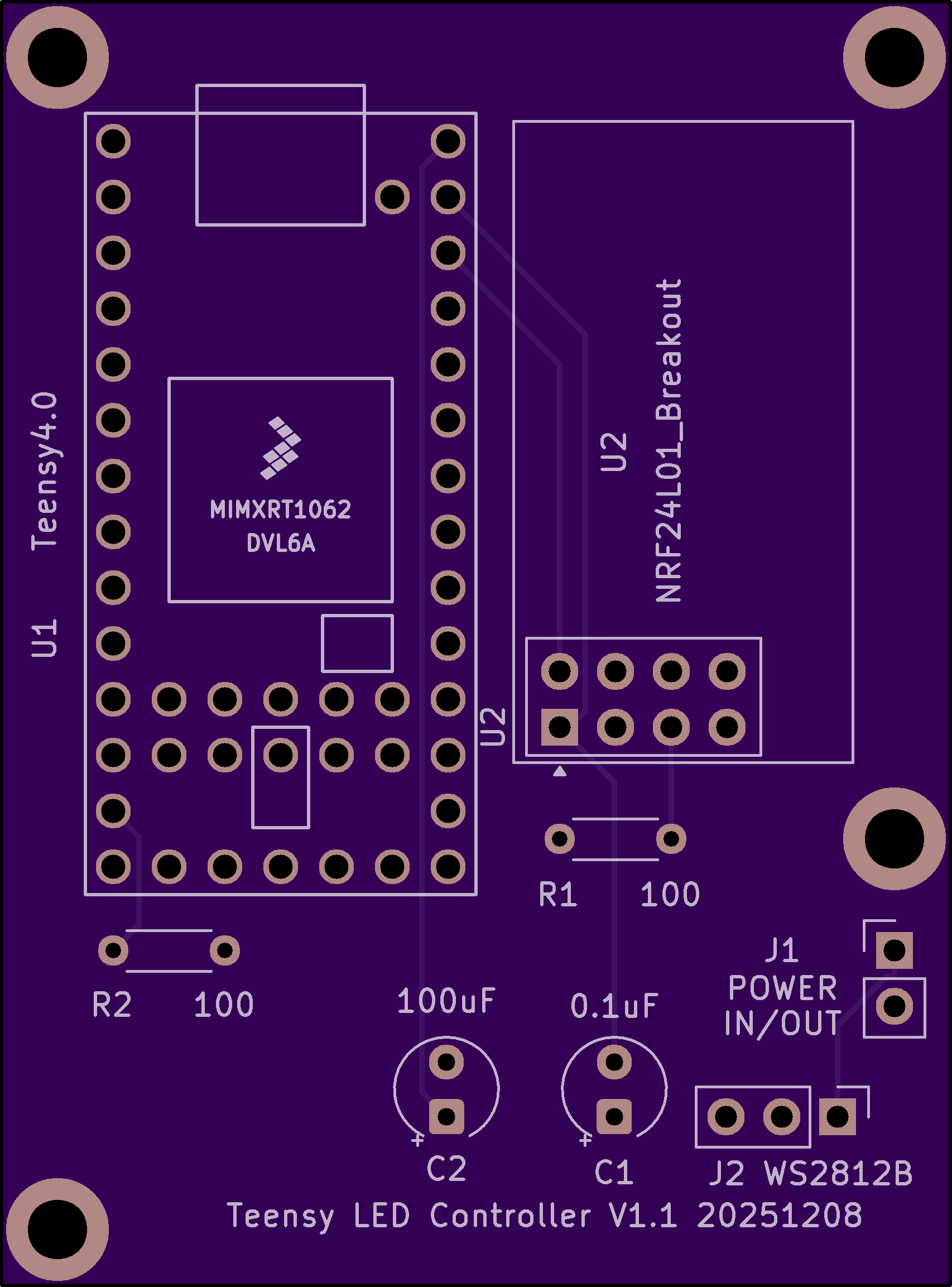

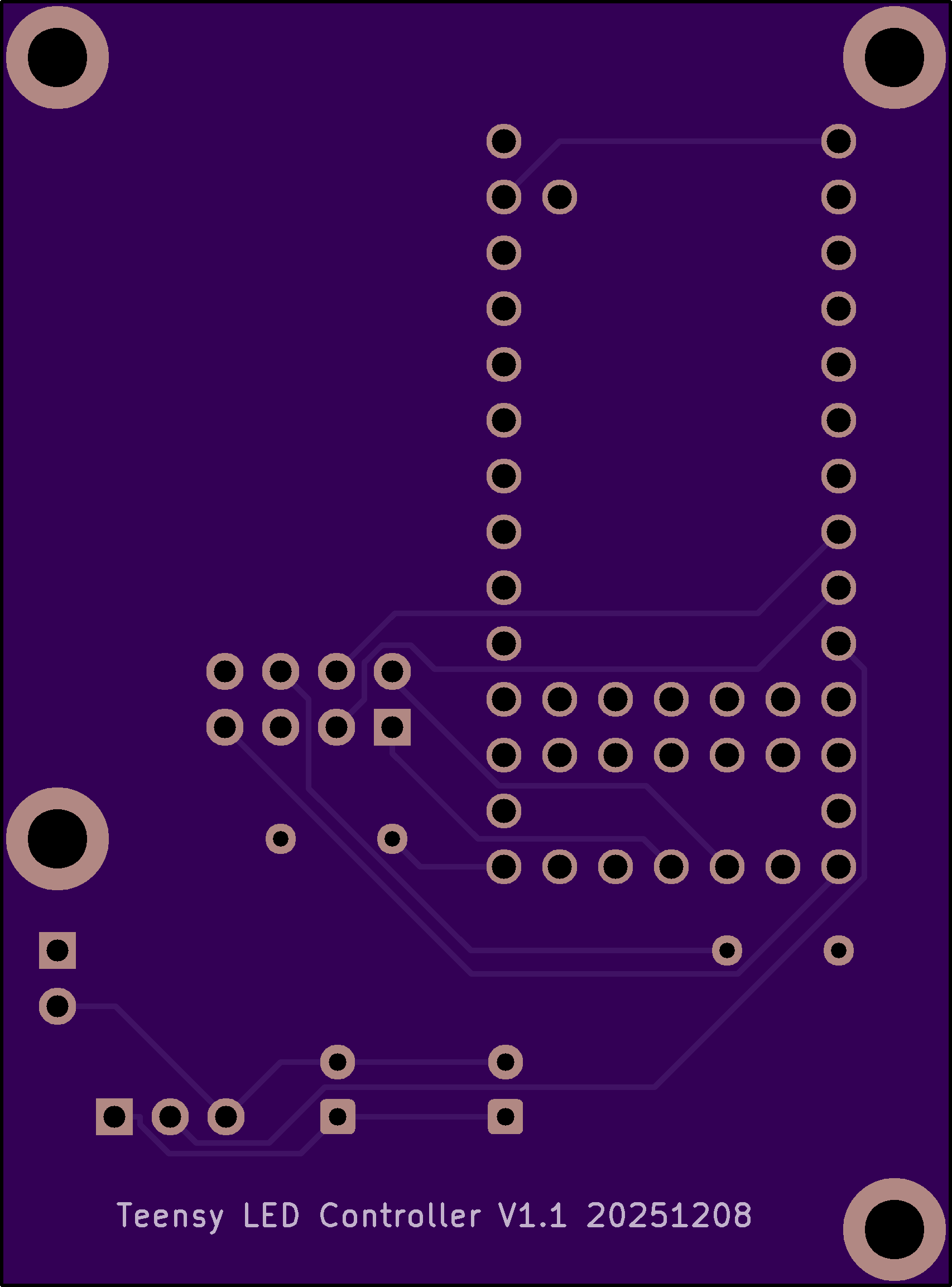

Teensy LED Controller w/ radio V1.1 (20251208)
author: kd5rxt-mark
2 layer board of 1.70 x 2.30 inches (43.2 x 58.4 mm)
Uploaded:
December 09, 2025
Shared:
December 09, 2025
Total Price:
$19.50
Version 1.1 of the Teensy 4.0 + NRF24L01 transceiver PCB, for remote control (pattern, individual LED color, speed, brightness, radio channel, radio power level, etc.) of up to 3 WS2832B LED strips (up to 30m - 900 LEDs per controller w/ appropriate 5VDC / 50W power supply).
