Macintosh Classic II FPU Card v2
author: Tobrew
2 layer board of 2.70 x 2.56 inches (68.6 x 65.0 mm)
Uploaded:
June 23, 2026
Shared:
June 23, 2026
Total Price:
$34.55

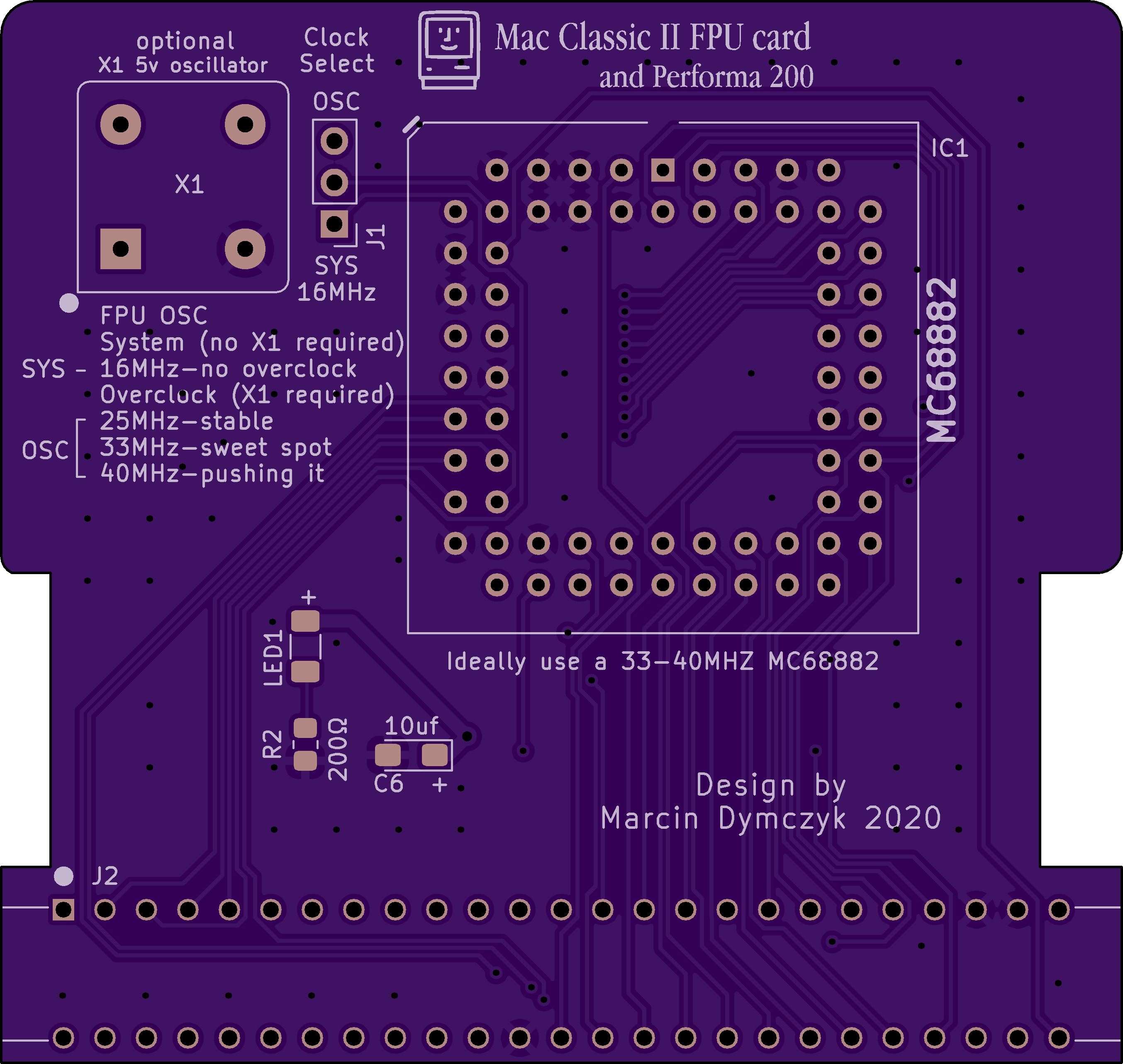

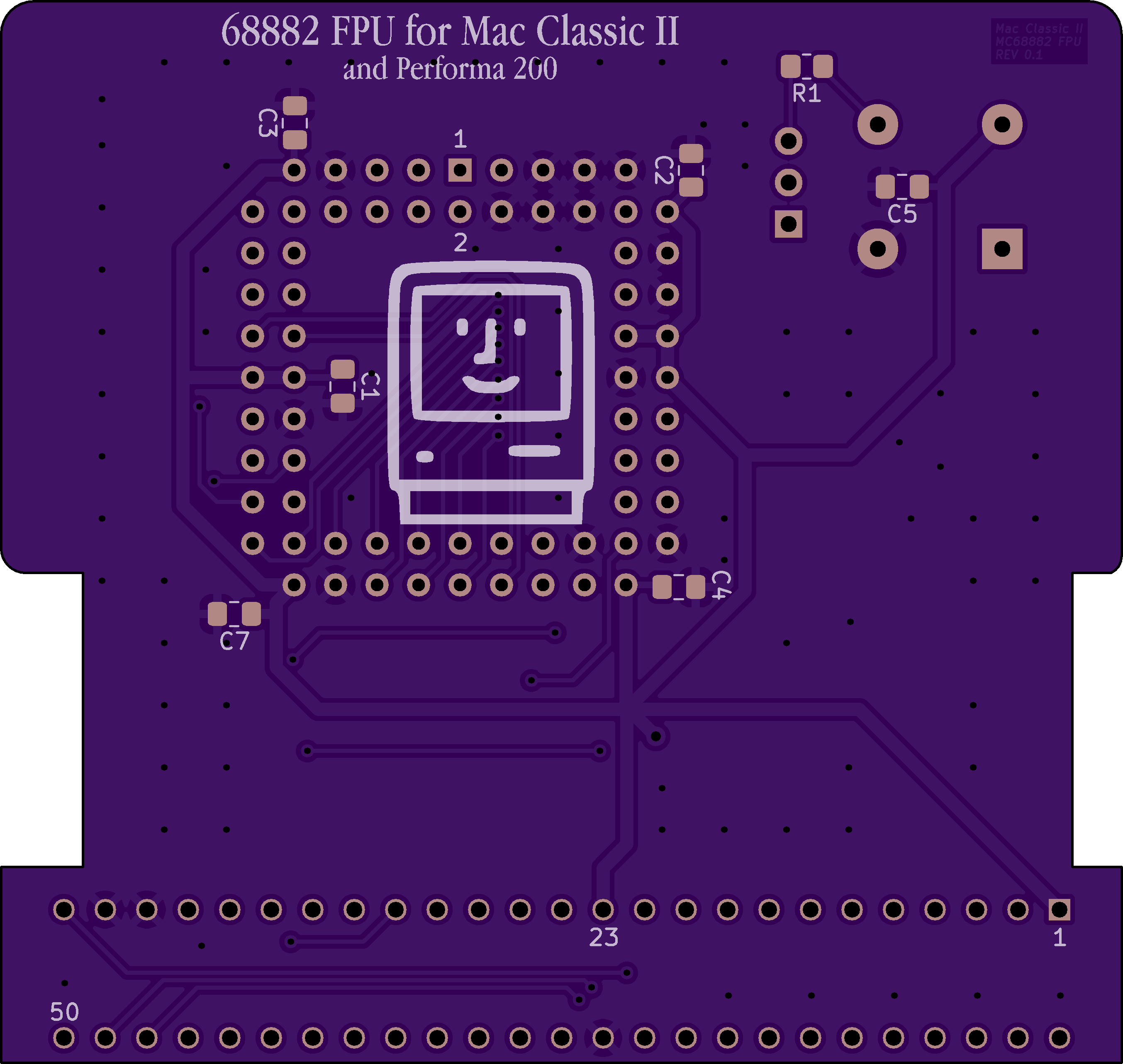

Expansion card that adds an MC68882 FPU to your Macintosh Classic II. The board has two layers to keep the PCB cost down. It offers a switchable clock source between the system clock (16 MHz, synchronous operation) and a crystal oscillator on the board (20,32, or 40 MHz, asynchronous operation depending on your crystal and FPU chip. If you just want a stock 16MHz FPU, leave off the oscillator and use a MC68882FN16A chip). If you want to overclock, use a faster FPU chip such as a MC68882FN40A, and the appropriate oscillator. It has been shown that the FPU can be overclocked up to 40MHz, but based on experience, keeping it around 25-33MHz maintains better CPU performance.
I added a pad for an optional 1206 LED and a spot for a 200ohm resistor.
Project by Marcin Dymczyk, Modifications by me
