Footswitch3PDT - Rev205.kicad_pcb

author: Sanj

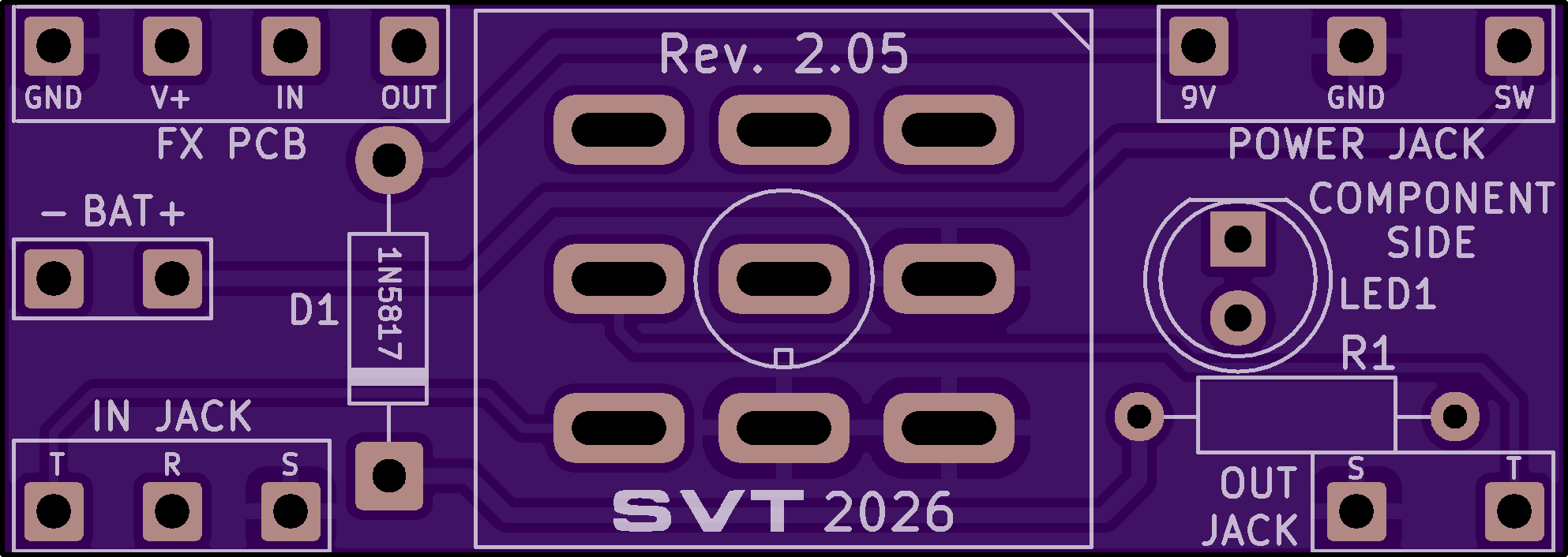

Top

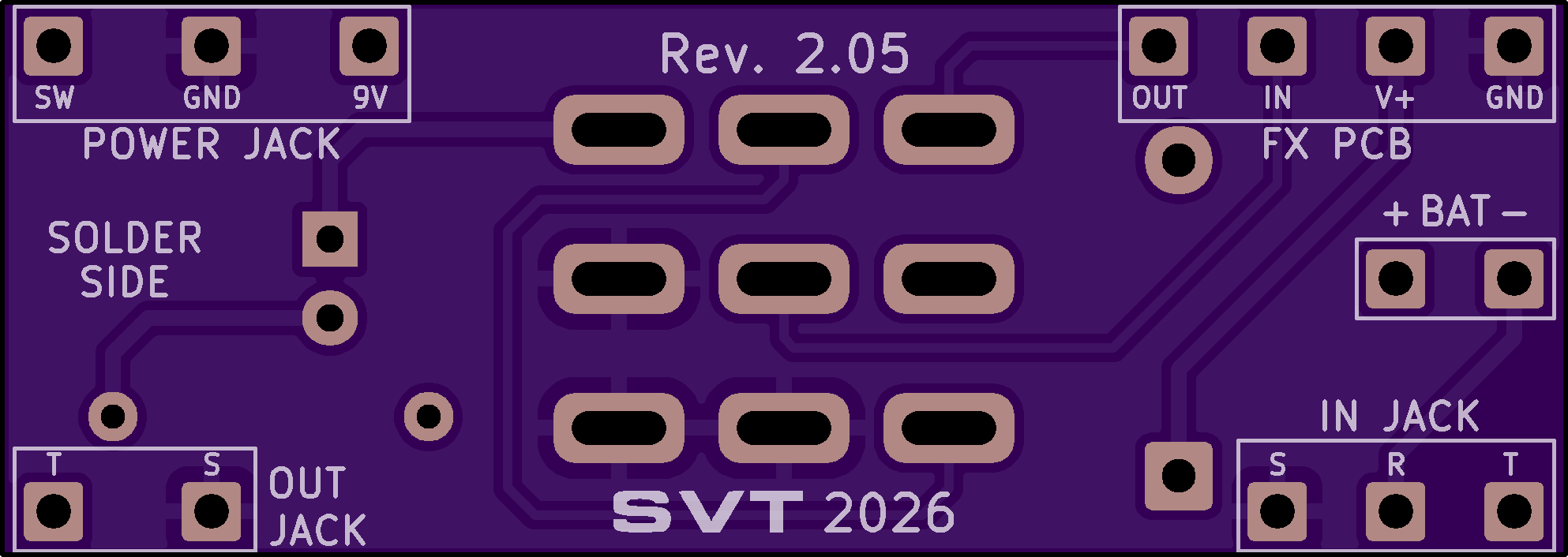

Bottom

2 layer board of 1.98 x 0.70 inches (50.3 x 17.8 mm)
Uploaded: June 12, 2026
Shared: June 12, 2026
Total Price: $6.90

True bypass footswitch adapter board for guitar effects pedal projects. Includes provisions for single color LED with through-hole resistor, external DC power input jack with switched barrel (V+), optional 9V battery clip input and polarity protection diode. Effect input signal is also grounded in bypass.

True bypass footswitch adapter board for guitar effects pedal projects. Includes provisions for single color LED with through-hole resistor, external DC power input jack with switched barrel (V+), optional 9V battery clip input and polarity protection diode. Effect input signal is also grounded in bypass.

Top
Bottom
