sidepcb15-03

author: Barbouri
Top
Bottom

2 layer board of 1.10 x 1.02 inches (28.0 x 25.8 mm)
Uploaded: April 14, 2020
Shared: September 30, 2022
Total Price: $5.60

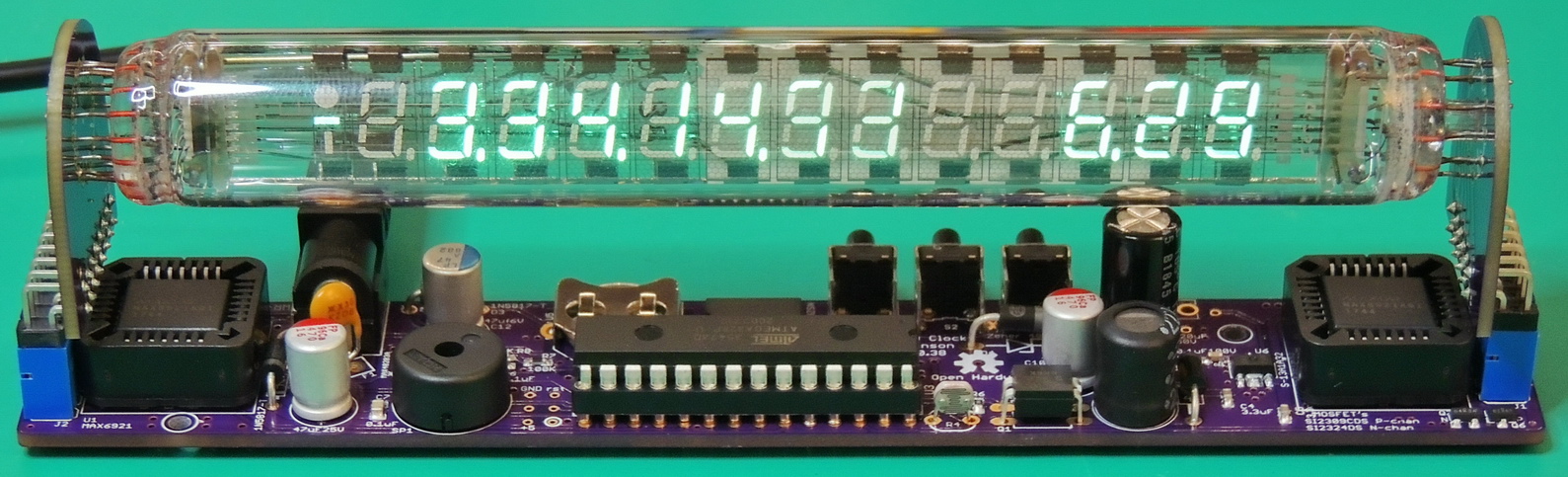

13 Segment Clock side board with grids and elements 15 pins Version 0.3 for 13 digit IceTube clock Revision 0.38

https://www.barbouri.com/2020/07/04/iv-27-icetube-clock-project/ IceTube Clock Main Rev. 0.38

Side PCB 15 pin for IceTube Clock Main board Rev. 0.38

13 Segment Clock side board with grids and elements 15 pins Version 0.3 for 13 digit IceTube clock Revision 0.38

https://www.barbouri.com/2020/07/04/iv-27-icetube-clock-project/ IceTube Clock Main Rev. 0.38

Side PCB 15 pin for IceTube Clock Main board Rev. 0.38
