THAT Balanced Direct Out PCB for Auditronics Grandson Consoles v1.1 (8/25)

author: theepicureanshoppe
Top
Bottom

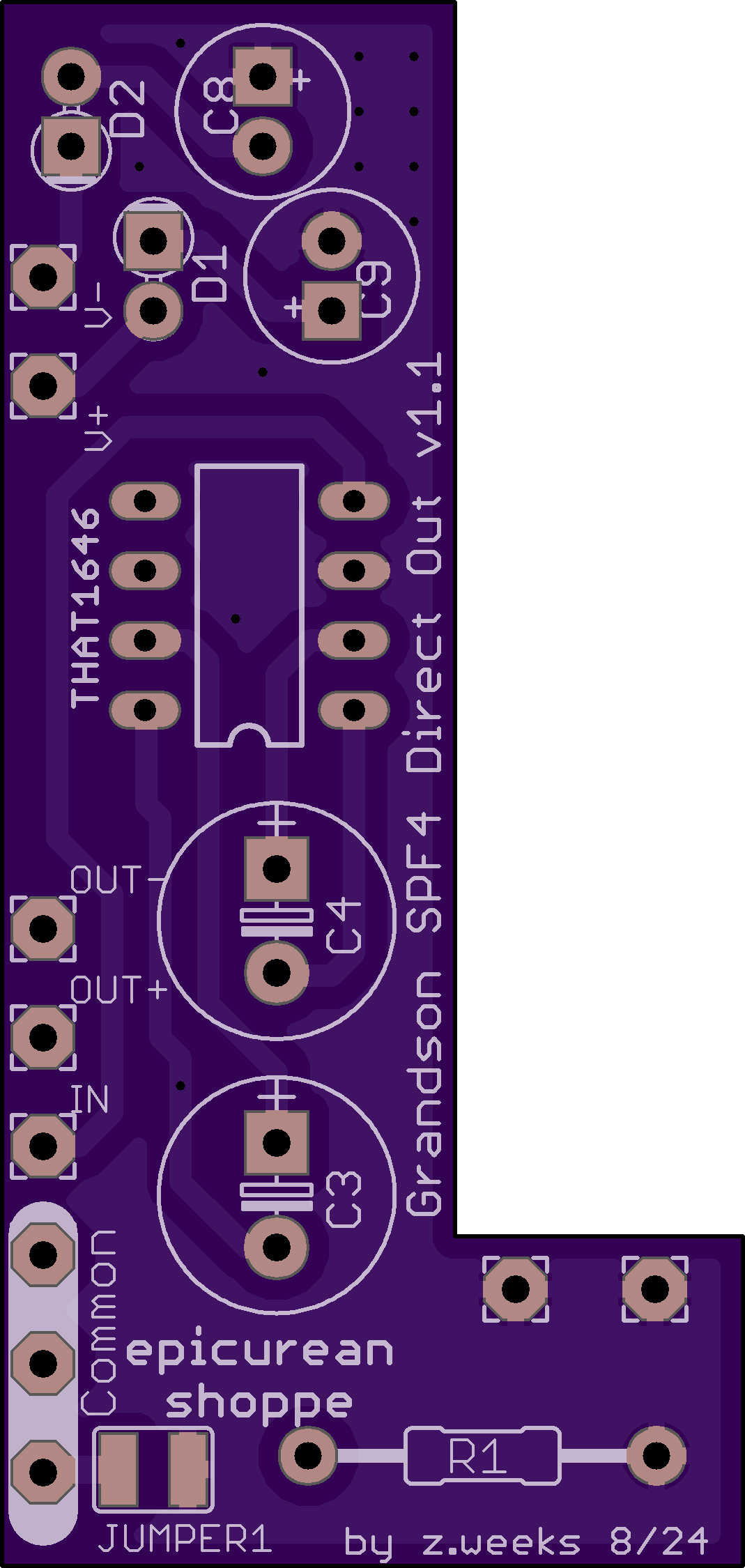

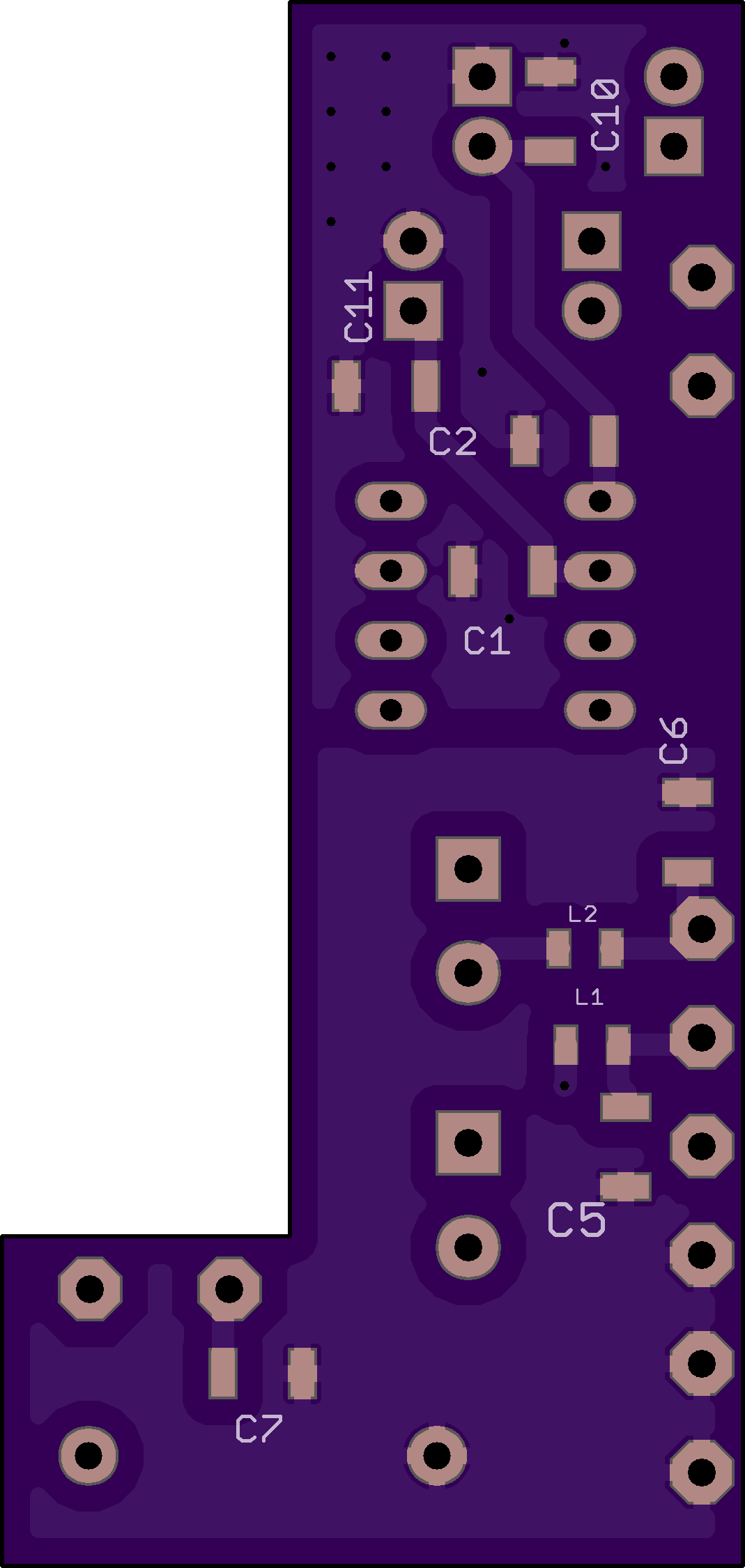

2 layer board of 1.06 x 2.24 inches (27.0 x 57.0 mm)
Uploaded: February 24, 2026
Shared: February 24, 2026
Total Price: $11.90

updated SMD cap footprints so you can use 1206 size caps for easier hand-soldering. V1 uses 0603 and 0805 size caps. BUILD DOCS + ALL INFO: https://docs.google.com/document/d/11GjGoDzG8-ncFnFUh2UUky1k9n0ca2OzJeHXqkIrFqc/edit?usp=sharing

updated SMD cap footprints so you can use 1206 size caps for easier hand-soldering. V1 uses 0603 and 0805 size caps. BUILD DOCS + ALL INFO: https://docs.google.com/document/d/11GjGoDzG8-ncFnFUh2UUky1k9n0ca2OzJeHXqkIrFqc/edit?usp=sharing

Top
Bottom
  • Actions

      Ordering shared project

      Hey there! Before ordering, make sure you have all the info you need to complete and use this design. This usually means a component list, and sometimes additional information such as assembly notes, source code, or usage guides.
      Since this is a project designed by a community member, it may contain design errors that prevent it from working as intended. OSH Park cannot place any guarantees about the functionality or correctness of the design.
