SMA oscilloscope terminator

author: Ted-Dunning
Top
Bottom

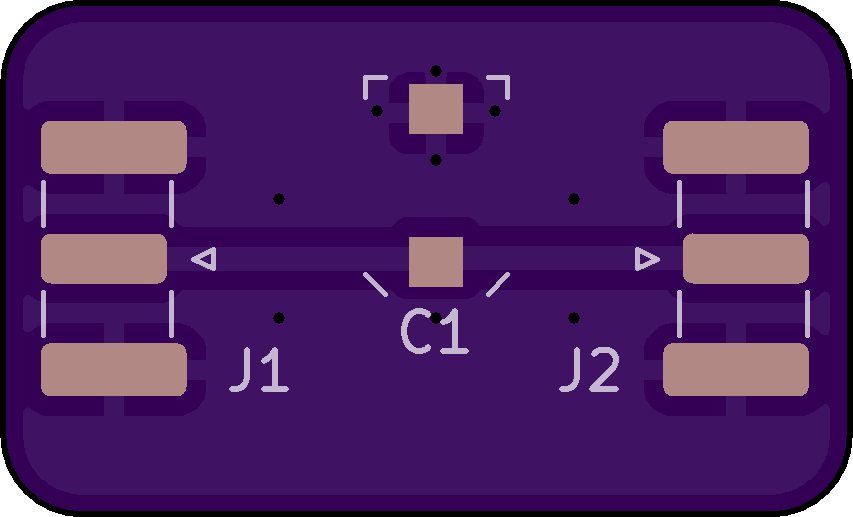

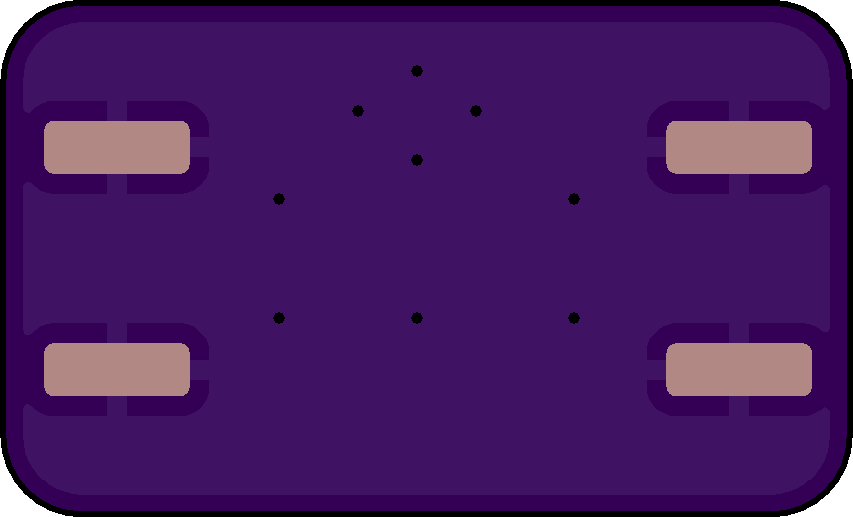

2 layer board of 0.85 x 0.51 inches (21.5 x 13.0 mm)
Uploaded: December 21, 2025
Shared: December 21, 2025
Total Price: $2.15

This circuit is designed to be mounted close to the oscilloscope input and serves much as the similar circuit that is in most 10x probes. Together with the SMA oscilloscope probe, you can have a low cost 10x probe terminated with SMA connectors.

See the github repo for more info

This circuit is designed to be mounted close to the oscilloscope input and serves much as the similar circuit that is in most 10x probes. Together with the SMA oscilloscope probe, you can have a low cost 10x probe terminated with SMA connectors.

See the github repo for more info
