Raspberry Pi Power via screw terminal, including on/off switch

author: Thomas-Welsch

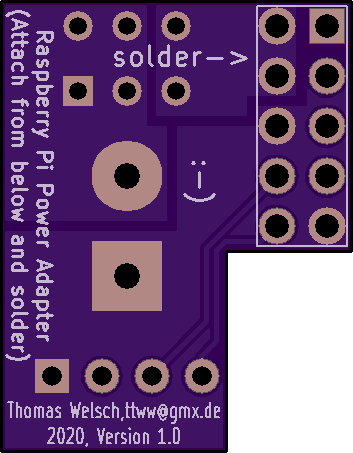

Top
Bottom

2 layer board of 0.71 x 0.91 inches (17.9 x 23.0 mm)
Uploaded: June 18, 2020
Shared: July 09, 2020
Total Price: $3.15

Raspberry Pi power support board with screw terminal and switch to solder from the bottom side of the Raspberry without blocking pins.

Switch type: THT JS202011CQN

Screw terminal type: RUNCCI-YUN 100PCS300V10A

It was made to power some RPI4s inside a Kubernetes cluster with a 5V power supply and simple wires. The RPI4s are cooled by an alu case

Additionally, there is an easy access to the serial line via a pin header, eg. to connect an ESPxxXX.

Raspberry Pi power support board with screw terminal and switch to solder from the bottom side of the Raspberry without blocking pins.

Switch type: THT JS202011CQN

Screw terminal type: RUNCCI-YUN 100PCS300V10A

It was made to power some RPI4s inside a Kubernetes cluster with a 5V power supply and simple wires. The RPI4s are cooled by an alu case

Additionally, there is an easy access to the serial line via a pin header, eg. to connect an ESPxxXX.
