CPLD Test Board XC2C2A v0.2
4 layer board of 0.51 x 1.11 inches (12.8 x 28.1 mm)
Uploaded:
April 25, 2016
Shared:
June 08, 2016
Total Price:
$5.50
New version of Xilinx XC2C2A-QFG32 CPLD, fixing the LDO pinout problem
New version of Xilinx XC2C2A-QFG32 CPLD, fixing the LDO pinout problem
CPLD
2 layer board of 0.70 x 2.00 inches (17.9 x 50.9 mm)
Uploaded:
April 08, 2016
Shared:
May 03, 2016
Total Price:
$7.05

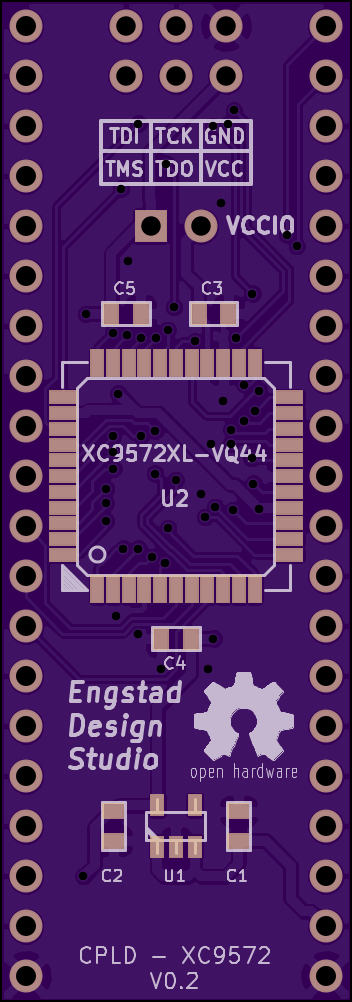

A simple breakout for the Xilinx XC9572 CPLD
The only additional component is the 3.3V LDO regulator. If you already have 3.3V available, a pin is available to bypass it. Inputs and outputs are 3.3V if you insert a jumper; otherwise, the outputs are powered from the VCCIO pin. While the IO is …
Show full description
A simple breakout for the Xilinx XC9572 CPLD
The only additional component is the 3.3V LDO regulator. If you already have 3.3V available, a pin is available to bypass it. Inputs and outputs are 3.3V if you insert a jumper; otherwise, the outputs are powered from the VCCIO pin. While the IO is …
Show full description

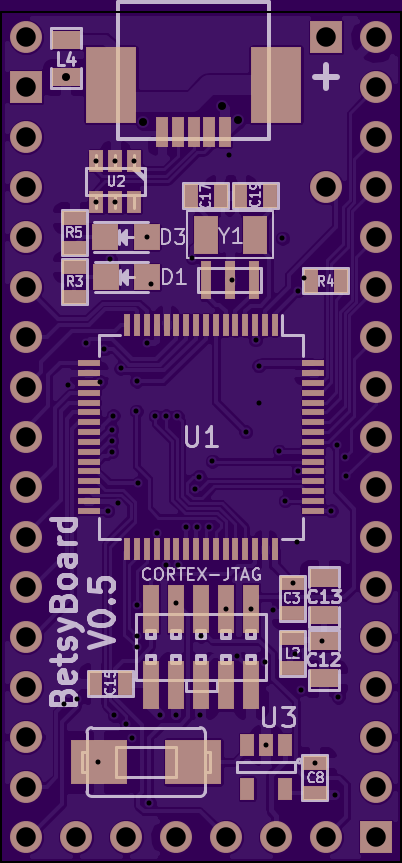

BetsyBoard V0.5 - STM32L4 breakout
4 layer board of 0.80 x 1.70 inches (20.4 x 43.3 mm)
Uploaded:
February 05, 2016
Shared:
February 05, 2016
Total Price:
$13.70
A small STM32L4xx breakout/dev board.
This version adds dip-switch for boot-mode and battery connection. It also goes back to using non-BGA power regulator.
A small STM32L4xx breakout/dev board.
This version adds dip-switch for boot-mode and battery connection. It also goes back to using non-BGA power regulator.
