Shared Projects by GG_CUSTOMS_

Gameboy Pocket Color Headphone Jack Board to restore the headphone output feature on your modded pocket color using Xipher´s Desing method.

It´s a simple but efective board, you just have to assemble the board using the PJ393 stereo jack and solder the board to the respective pads on the GBC modified board. The speaker the speaker have to be wired as Xipher´s described on his videos.

Order as a flex PCB.

I´ll be sharing a video tutorial as soon as I can.

If you have any questions, feel free to contact me on: https://linktr.ee/gg_customs_

This is a USB type C jack that I specifically designed for Gameboy Pocket to wire to a lipo charging module. You need to solder it directly to the motherboard and replacing the DC jack connector, allowing you to have a better look on your build and get more room on the battery compartment. Can be charged with any USB-C charger safely, the jack board has a circuit on it that only provides 5v max input.

Instructions: USB-C BOARD. 1.- Solder 5.1k ohm resistors 0603 size to R1 and R2. 2.- Place and solder a USB-C 6 pin female jack to the board, you can bend the front anker pins so they can fit on the board or trim those ones. The USB-C port that you need should look like this one: https://aliexpress.com/item/4001054493231.html?spm=a2g0o.productlist.0.0.61233a56aRLM7o&algo_pvid=11ce47ef-8b4e-459f-82dd-ff9aaf936088&aem_p4p_detail=202111082245423538519152746340044004769&algo_exp_id=11ce47ef-8b4e-459f-82dd-ff9aaf936088-7&pdp_ext_f=%7B%22sku_id%22%3A%2210000013821822616%22%7D

GAMEBOY POCKET MOTHERBOARD. 1.- Remove the DC input connector from the motherboard. 2.- Clean the pads. 3.- Place the USB-C JACK BOARD to the Gameboy motherboard and solder the pads on the bottom of the board correctly. If you don’t solder the bottom pads to the Gameboy mother board the Gameboy WONT WORK. 4.- Solder the pads on the top of the board to the corresponding Positive (+) and negative (-) pads of your lipo charging module. 5.- Enjoy.

Order it with 0.8mm thickness.

If you have any questions feel free to contact me on: https://linktr.ee/gg_customs_

This is a USB type C jack that I specifically designed for the Gameboy Color to wire to a lipo charging module. You need to solder it directly to the motherboard and replacing the DC jack connector, allowing you to have a better look on your build and get more room on the battery compartment. Can be charged with any USB-C charger safely, the jack board has a circuit that only provides 5v max input.

Instructions: USB-C BOARD. 1.- Solder 5.1k ohm resistors 0603 size to R1 and R2. 2.- Place and solder a USB-C 6 pin female jack to the board, you can bend the front anker pins so they can fit on the board or trim those ones. The USB-C port that you need should look like this one: https://aliexpress.com/item/4001054493231.html?spm=a2g0o.productlist.0.0.61233a56aRLM7o&algo_pvid=11ce47ef-8b4e-459f-82dd-ff9aaf936088&aem_p4p_detail=202111082245423538519152746340044004769&algo_exp_id=11ce47ef-8b4e-459f-82dd-ff9aaf936088-7&pdp_ext_f=%7B%22sku_id%22%3A%2210000013821822616%22%7D

GAMEBOY COLOR MOTHERBOARD. 1.- Remove the DC input connector from the motherboard. 2.- Clean the pads. 3.- Place the USB-C JACK BOARD to the Gameboy motherboard and solder the pads on the bottom of the board correctly. If you don’t solder the bottom pads to the Gameboy mother board the Gameboy WONT WORK. 4.- Solder the pads on the top of the board to the corresponding Positive (+) and negative (-) pads of your lipo charging module. 5.- Enjoy. OPTIONAL. You can also add wireless charging module to all the circuit, you just need to solder the positive and negative wires to the ones on top of the USB-C JACK board that are marked as “W+” and “W-“. You can order it with 1.6mm thickness or 0.8mm.

If you have any questions, feel free to contact me on: https://linktr.ee/gg_customs_

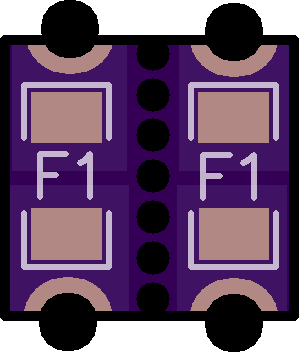

This board is a “F1” fuse adapter that I desgined for the gameboy pocket. You can solder any SMD fast acting fuse you want in a 1206 package. For the GBP it´ s recommended to have a 0.5A fuse but I just throw a 1 amp fuse “H” on my build because of the mods I just have on it. It doesn´ t matter what thickness you choose, I tested it with a 1.6mm board an it work´ s just fine.

If you have any questions about it, feel free to message me on instagram: https://www.instagram.com/gg_customs_
