3.5mm Phone Jack Breakout Board

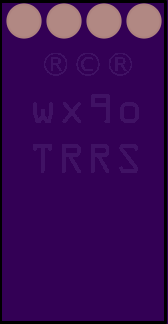

Top

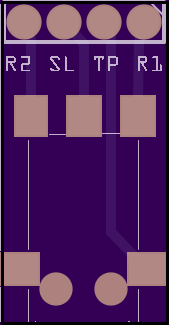

Bottom

2 layer board of 0.42 x 0.81 inches (10.7 x 20.6 mm)
Uploaded: March 29, 2013
Shared: February 11, 2018
Total Price: $1.70

3.5mm TRRS 4-pole phone jack breakout board. Fits Lumberg 1503 13 VP3.

3.5mm TRRS 4-pole phone jack breakout board. Fits Lumberg 1503 13 VP3.

Top
Bottom
