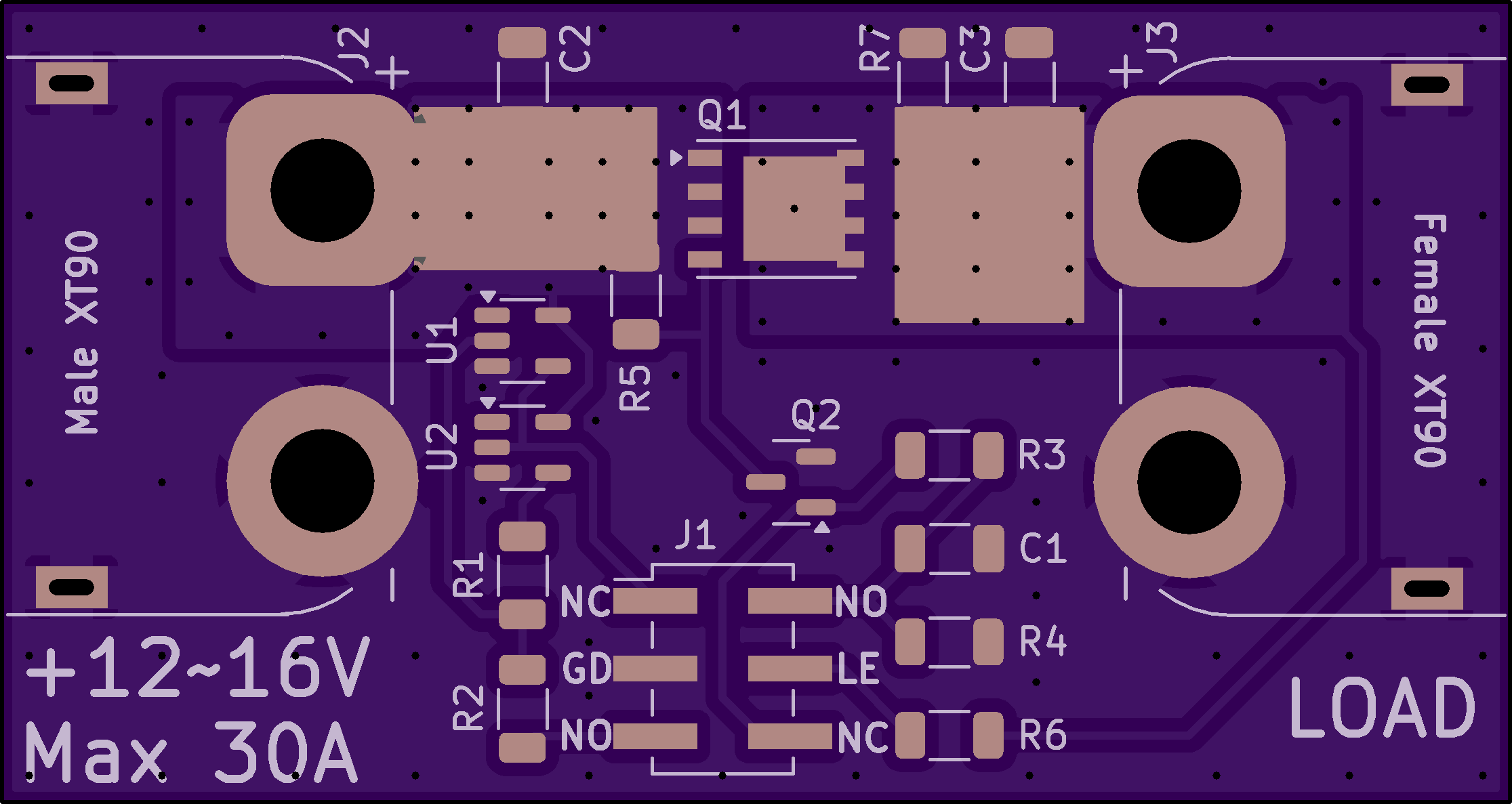

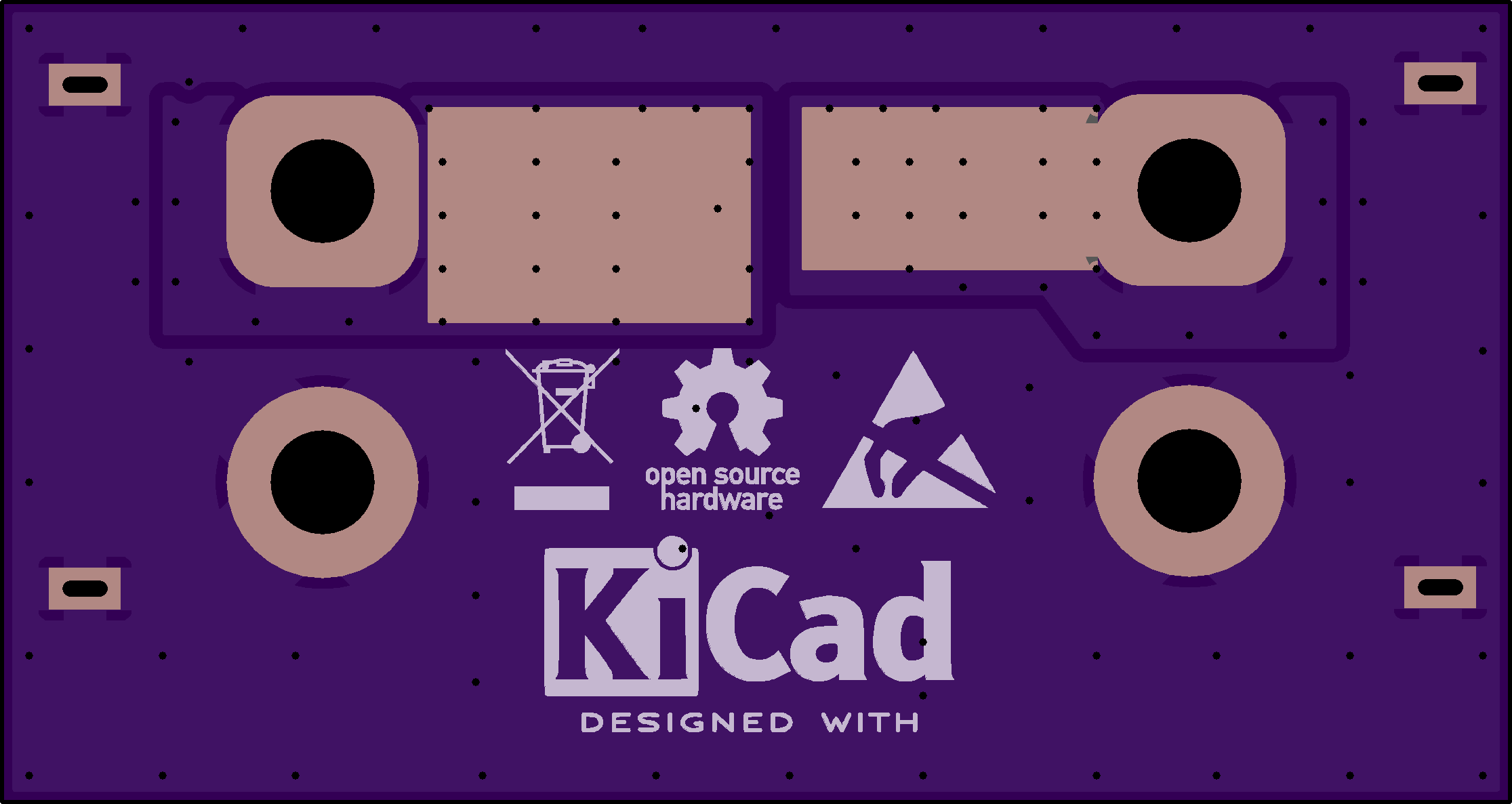

Radio Power Switch - SMT XT90
2 layer board of 2.22 x 1.18 inches (56.5 x 30.0 mm)
Uploaded:
May 11, 2025
Shared:
May 11, 2025
Total Price:
$13.10
Used for linking a 12-16V power supply to a load drawing up to 30 amps (when exposed copper pours are given a paste application). When NO contacts close (and NC contacts open), power switches on. When the same happens again, power switches off. LED indicates a hot load, or an active switch. DOES …
Show full description
Used for linking a 12-16V power supply to a load drawing up to 30 amps (when exposed copper pours are given a paste application). When NO contacts close (and NC contacts open), power switches on. When the same happens again, power switches off. LED indicates a hot load, or an active switch. DOES …
Show full description
MIMIK Smart Card Analyzer *UNTESTED*
2 layer board of 4.53 x 2.13 inches (115.1 x 54.0 mm)
Uploaded:
September 08, 2020
Shared:
September 08, 2020
Total Price:
$48.15
ISO/IEC 7816-compliant smart card sniffer/emulator. Intended for open source security research and penetration testing. Requires 0.8mm thickness. Design is untested – use at your own risk. BOM will be posted once verified to NOT release magic smoke, but you can probably get the gist from the Ger…
Show full description
ISO/IEC 7816-compliant smart card sniffer/emulator. Intended for open source security research and penetration testing. Requires 0.8mm thickness. Design is untested – use at your own risk. BOM will be posted once verified to NOT release magic smoke, but you can probably get the gist from the Ger…
Show full description
growLITE v1.0
2 layer board of 2.84 x 2.80 inches (72.1 x 71.1 mm)
Uploaded:
December 12, 2019
Shared:
December 12, 2019
Total Price:
$39.70
Small (~40 uMol/s), experimental grow light for indoor gardening and hydroponics. An STM32G0 controls light intensity and timing, with selectable recipes and a low-power LCD.
Small (~40 uMol/s), experimental grow light for indoor gardening and hydroponics. An STM32G0 controls light intensity and timing, with selectable recipes and a low-power LCD.
