rj11 jst xh
2 layer board of 1.00 x 0.57 inches (25.5 x 14.5 mm)
Uploaded:
October 18, 2016
Shared:
November 23, 2016
Total Price:
$2.85

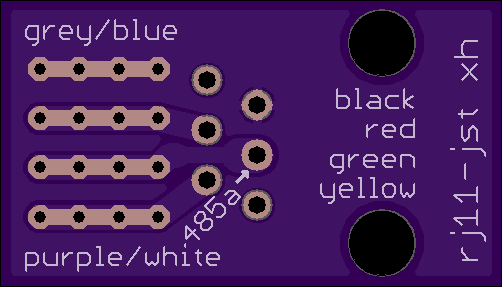

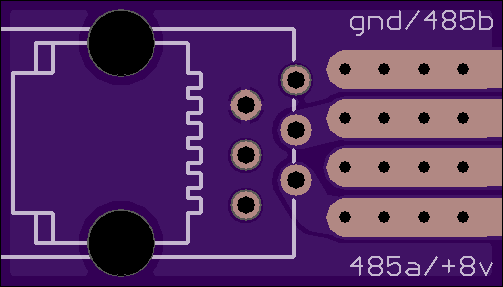

connects a rj11 6p4c socket to a 4 wire jst xh female header. The pins of the jst header are not through hole, but they must be soldered flat on the board : so the flat ribbon cable on the rj11 side and the wires on the jst side are lined up
