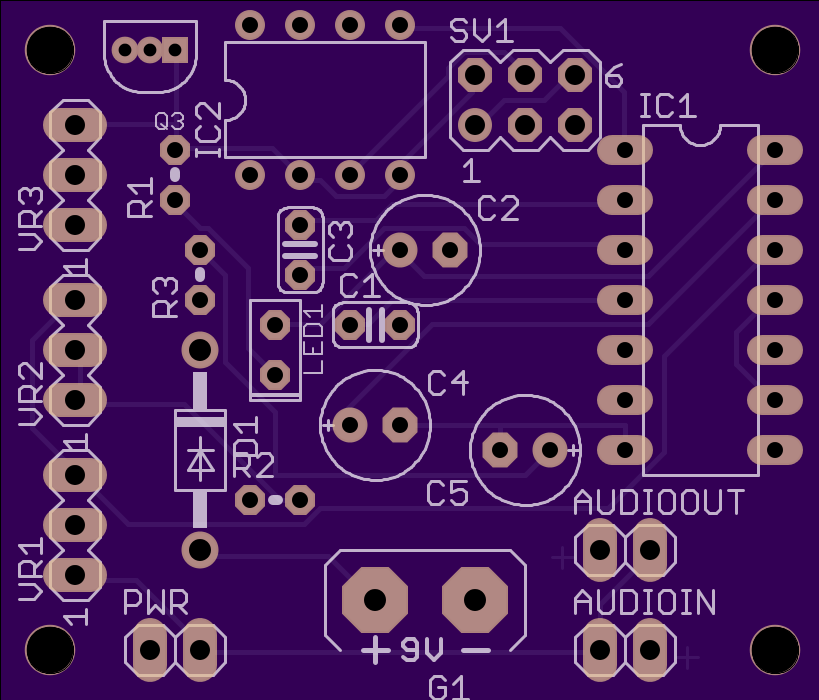

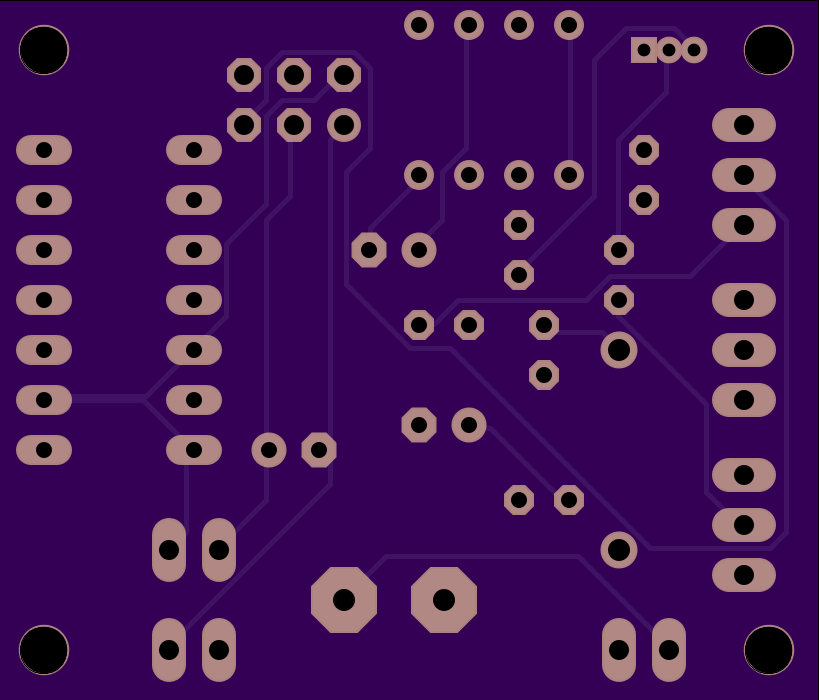

pwm motor controller
2 layer board of 2.04 x 1.75 inches (51.8 x 44.4 mm)
Uploaded:
June 11, 2016
Shared:
June 14, 2016
Total Price:
$17.80
dual motor speed controller using 40106 chip, pots are 100k, diodes are 1n4004, resistors are 22k, and transistors are 2n3904/2n2222 caps are 103's and 220uf
