TMC5130 Breakout Rev2

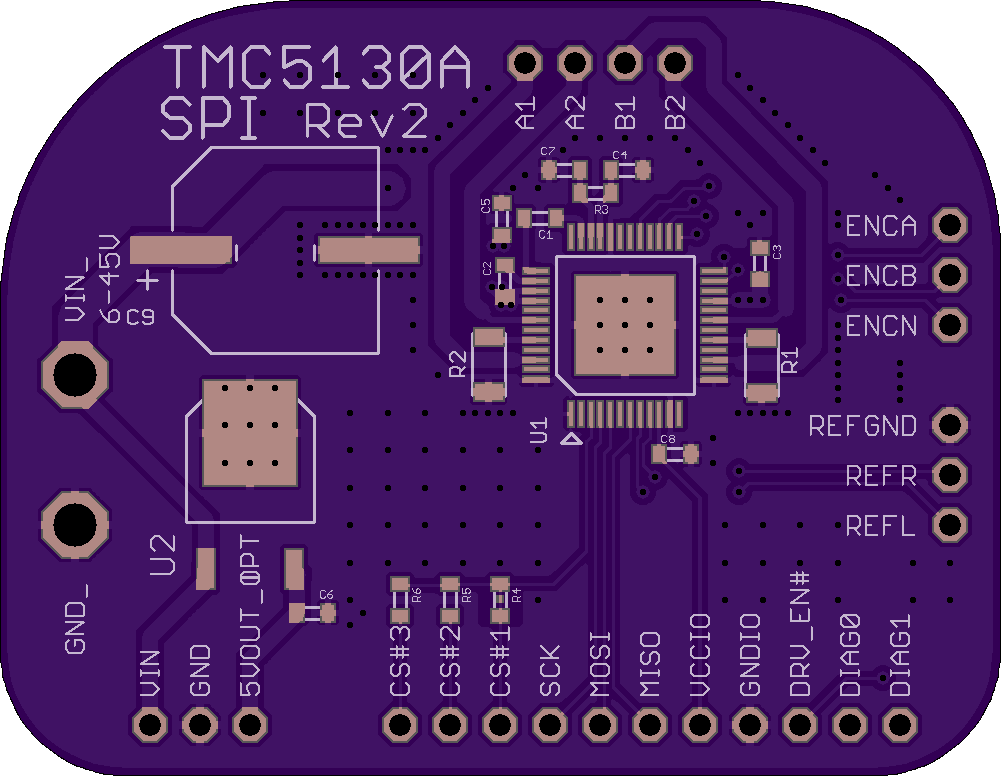

Top

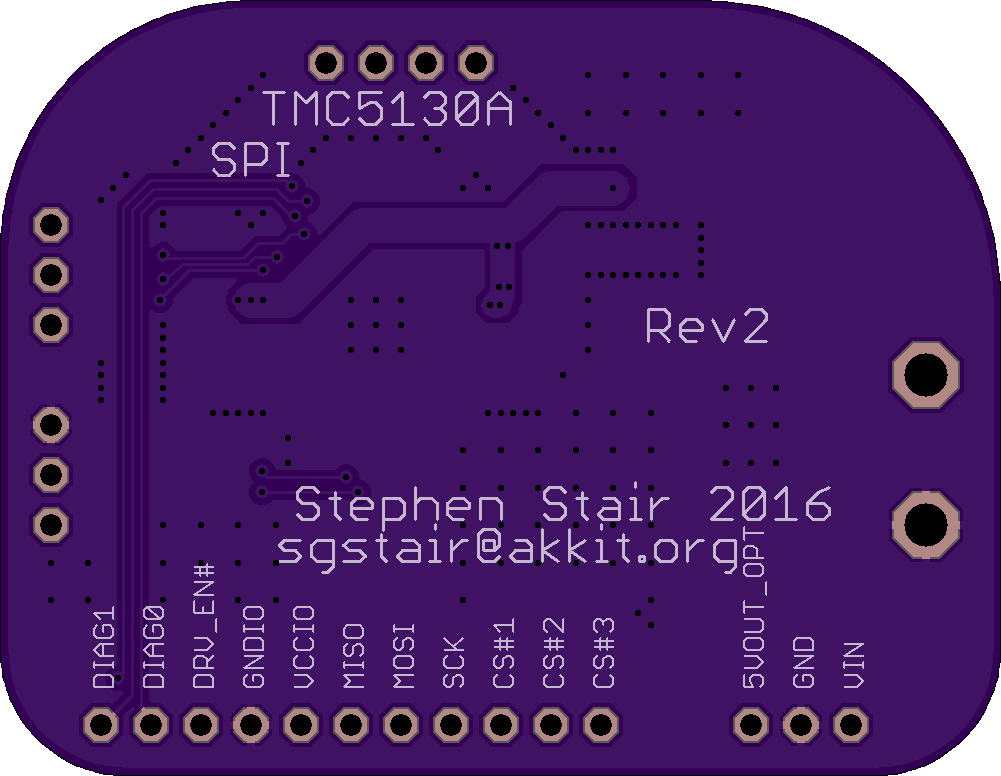

Bottom

2 layer board of 2.00 x 1.55 inches (50.8 x 39.4 mm)
Uploaded: November 26, 2016
Shared: December 14, 2016
Total Price: $15.50

Simple breakout board for using TMC5130 motor driver chip

Parts:

U1 TMC5130 - Digikey 1460-1126-1-ND
U2 5V 500mA LDO (optional) ONSemi MC78M05CDTRKG - Digikey MC78M05CDTRKGOSCT-ND
C1 22nF 50V+ 0603 - Digikey 1276-6534-1-ND
C2,C3,C5 0.1uF 50V+ 0603 - Digikey 12…

Show full description

Simple breakout board for using TMC5130 motor driver chip

Parts:

U1 TMC5130 - Digikey 1460-1126-1-ND
U2 5V 500mA LDO (optional) ONSemi MC78M05CDTRKG - Digikey MC78M05CDTRKGOSCT-ND
C1 22nF 50V+ 0603 - Digikey 1276-6534-1-ND
C2,C3,C5 0.1uF 50V+ 0603 - Digikey 12…

Show full description

Top
Bottom
  • Actions

      Ordering shared project

      Hey there! Before ordering, make sure you have all the info you need to complete and use this design. This usually means a component list, and sometimes additional information such as assembly notes, source code, or usage guides.
      Since this is a project designed by a community member, it may contain design errors that prevent it from working as intended. OSH Park cannot place any guarantees about the functionality or correctness of the design.
      Order Board
    • Order Board
    • Download
    • Permalink
    • Embed link
Embeddable link to order this shared Project

BMI055 Breakout

Top
Bottom

2 layer board of 0.70 x 0.80 inches (17.8 x 20.3 mm)
Uploaded: August 16, 2014
Shared: August 16, 2014
Total Price: $2.75

Simple breakout of partial BMI055 functionality that I made to integrate this part into another project

C1: 1uF

C2: 0.01uF

R1: 10k (interrupt line pullup)

The capacitor values aren't critical, but this chip should have some bypass cap installed for local power stability.

Simple breakout of partial BMI055 functionality that I made to integrate this part into another project

C1: 1uF

C2: 0.01uF

R1: 10k (interrupt line pullup)

The capacitor values aren't critical, but this chip should have some bypass cap installed for local power stability.
