LED Matrix Motherboard 2

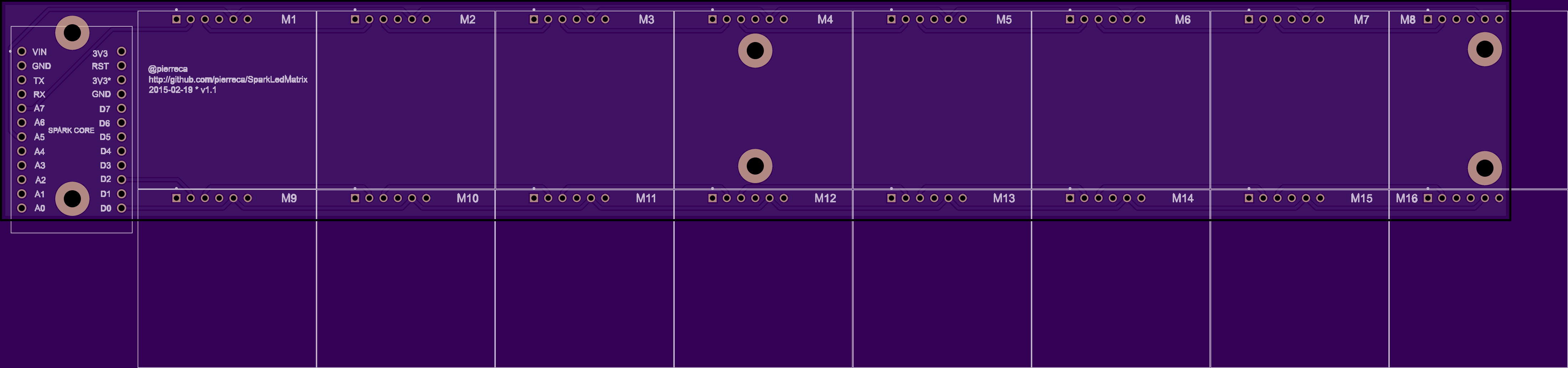

Top

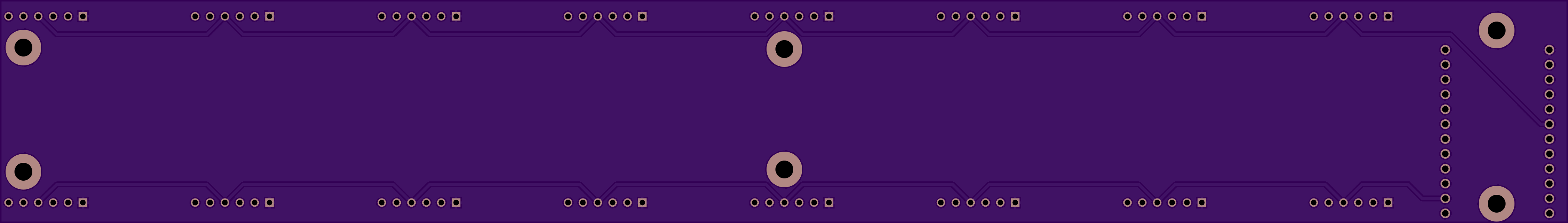

Bottom

2 layer board of 10.60 x 1.56 inches (269.2 x 39.5 mm)
Uploaded: February 20, 2015
Shared: February 23, 2015
Total Price: $82.40

Works with my NFM-12883 Backpack module

Works with my NFM-12883 Backpack module

Top
Bottom
  • Actions

      Ordering shared project

      Hey there! Before ordering, make sure you have all the info you need to complete and use this design. This usually means a component list, and sometimes additional information such as assembly notes, source code, or usage guides.
      Since this is a project designed by a community member, it may contain design errors that prevent it from working as intended. OSH Park cannot place any guarantees about the functionality or correctness of the design.
      Order Board
    • Order Board
    • Download
    • Permalink
    • Embed link
Embeddable link to order this shared Project

LED Matrix Backpack v1.1

Top
Bottom

2 layer board of 1.26 x 1.26 inches (32.0 x 31.9 mm)
Uploaded: February 08, 2015
Shared: February 08, 2015
Total Price: $7.90

PCB hooking up a MAX7219 (or AS1100PL) with an NFM-12883 LED Matrix

PCB hooking up a MAX7219 (or AS1100PL) with an NFM-12883 LED Matrix

Top
Bottom
