2 layer board of 0.88 x 0.50 inches (22.4 x 12.8 mm)
Uploaded:
November 12, 2017
Shared:
December 24, 2017
Total Price:
$2.20

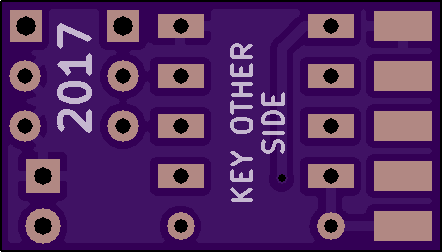

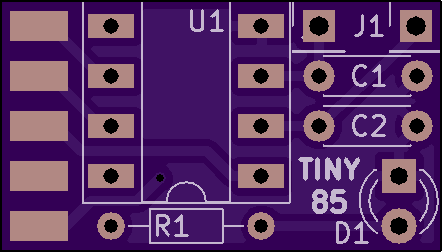

A little baby programming board for USBASP. Solder on a 10-pin shrouded header onto the edge of it, just like on the USBASP. Make sure the key notch is facing UP! Also contains positions for two capacitors, and an empty spot (J1) for a female header, for inserting a crystal in case one is needed…
A little baby programming board for USBASP. Solder on a 10-pin shrouded header onto the edge of it, just like on the USBASP. Make sure the key notch is facing UP! Also contains positions for two capacitors, and an empty spot (J1) for a female header, for inserting a crystal in case one is needed
Parts:
Shrouded 10-pin header
Single LED for power-on indicator, optional
Resistor (any value you like to make the LED a pleasant brightness), optional
8-pin DIP socket
Female header for plugging in a crystal, optional
2x Ceramic capacitors (22 pF or so, for the crystal), non-mandatory
