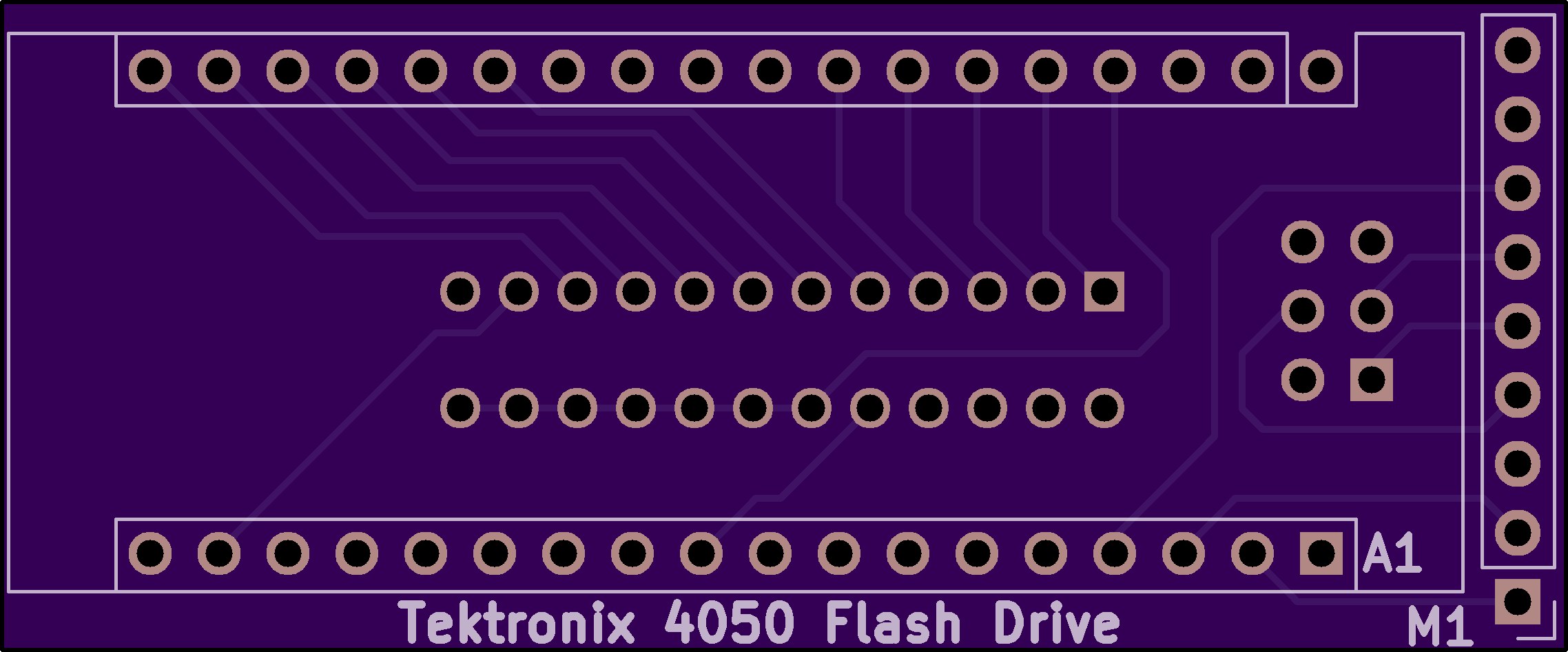

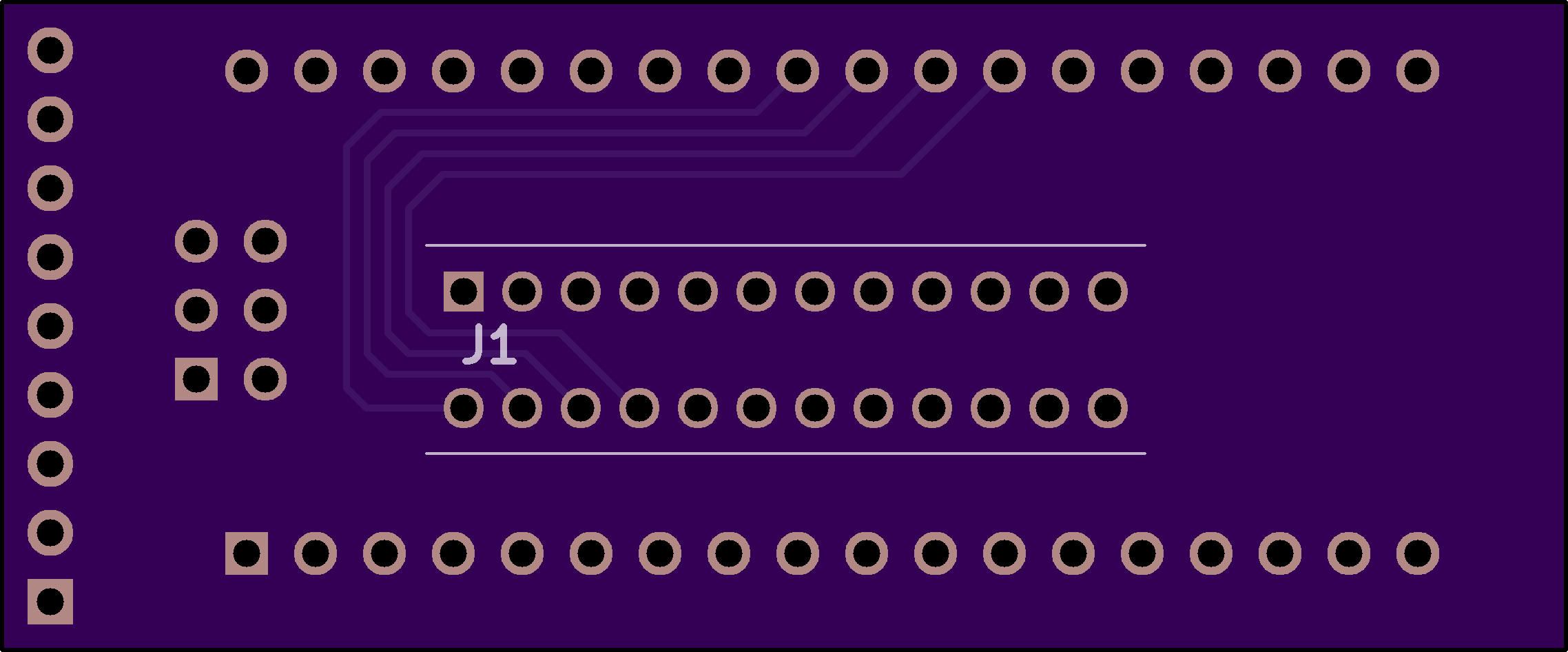

Tektronix 4050 Flash Drive

2 layer board of 2.27 x 0.94 inches (57.7 x 23.9 mm)
Uploaded: June 6th 2022
Shared: June 6th 2022
Total Price: $10.65

Tektronix 4050 Flash Drive https://github.com/mmcgraw74/Tektronix-4051-4052-4054-Program-Files/edit/master/Flash_Drive/README.md

BOM: 1. CS-Narrow-1284 (or 644) board (mouser.com) 2. 111-024-113L001 GPIB connector (mouser.com) 3. #2587 MicroSD board with Level Shifter (Pololu.com)

Tektronix 4050 Flash Drive https://github.com/mmcgraw74/Tektronix-4051-4052-4054-Program-Files/edit/master/Flash_Drive/README.md

BOM: 1. CS-Narrow-1284 (or 644) board (mouser.com) 2. 111-024-113L001 GPIB connector (mouser.com) 3. #2587 MicroSD board with Level Shifter (Pololu.com)
