RTD_Calibrator_PCB_V3R0_gerber

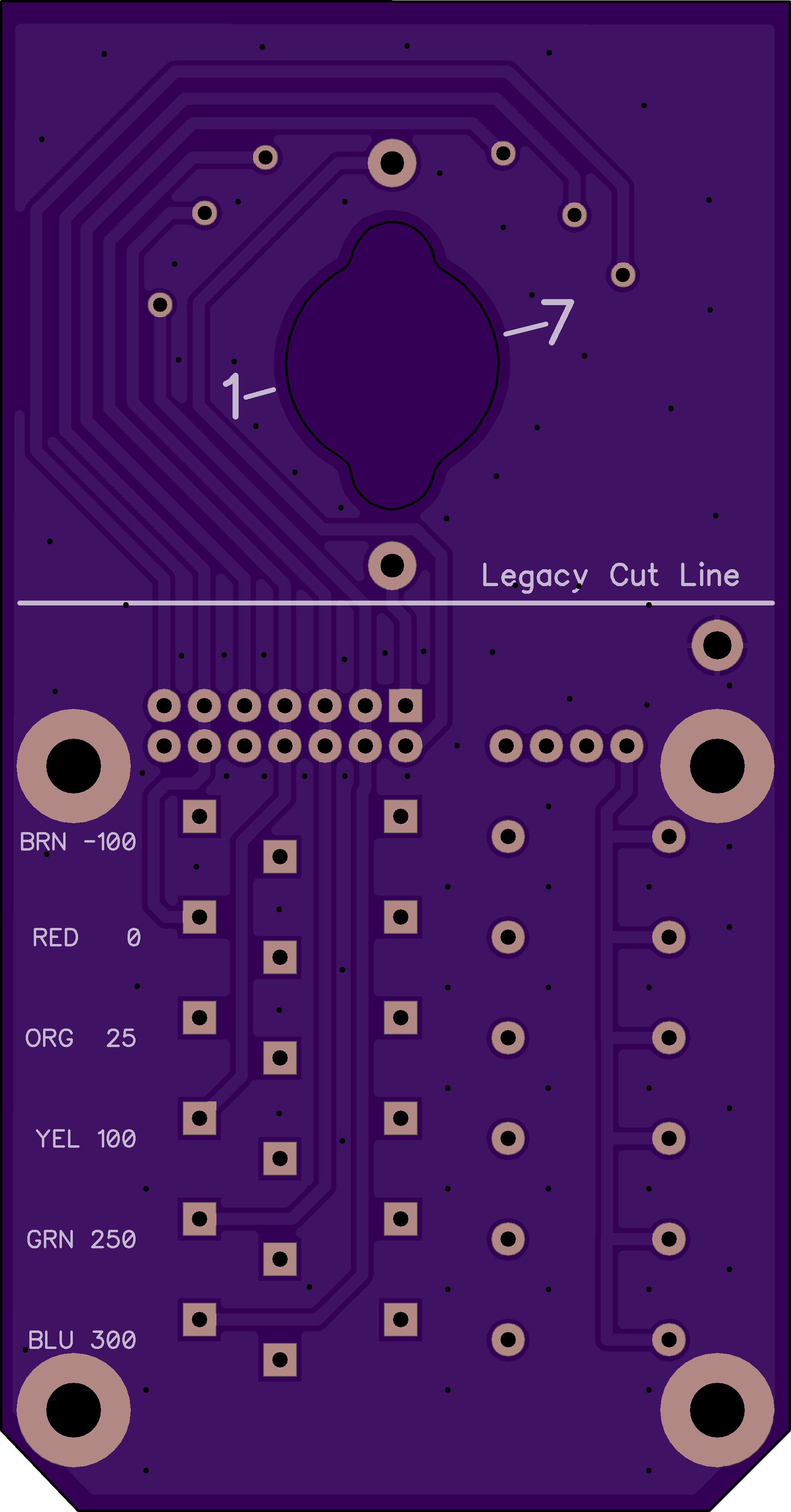

Top

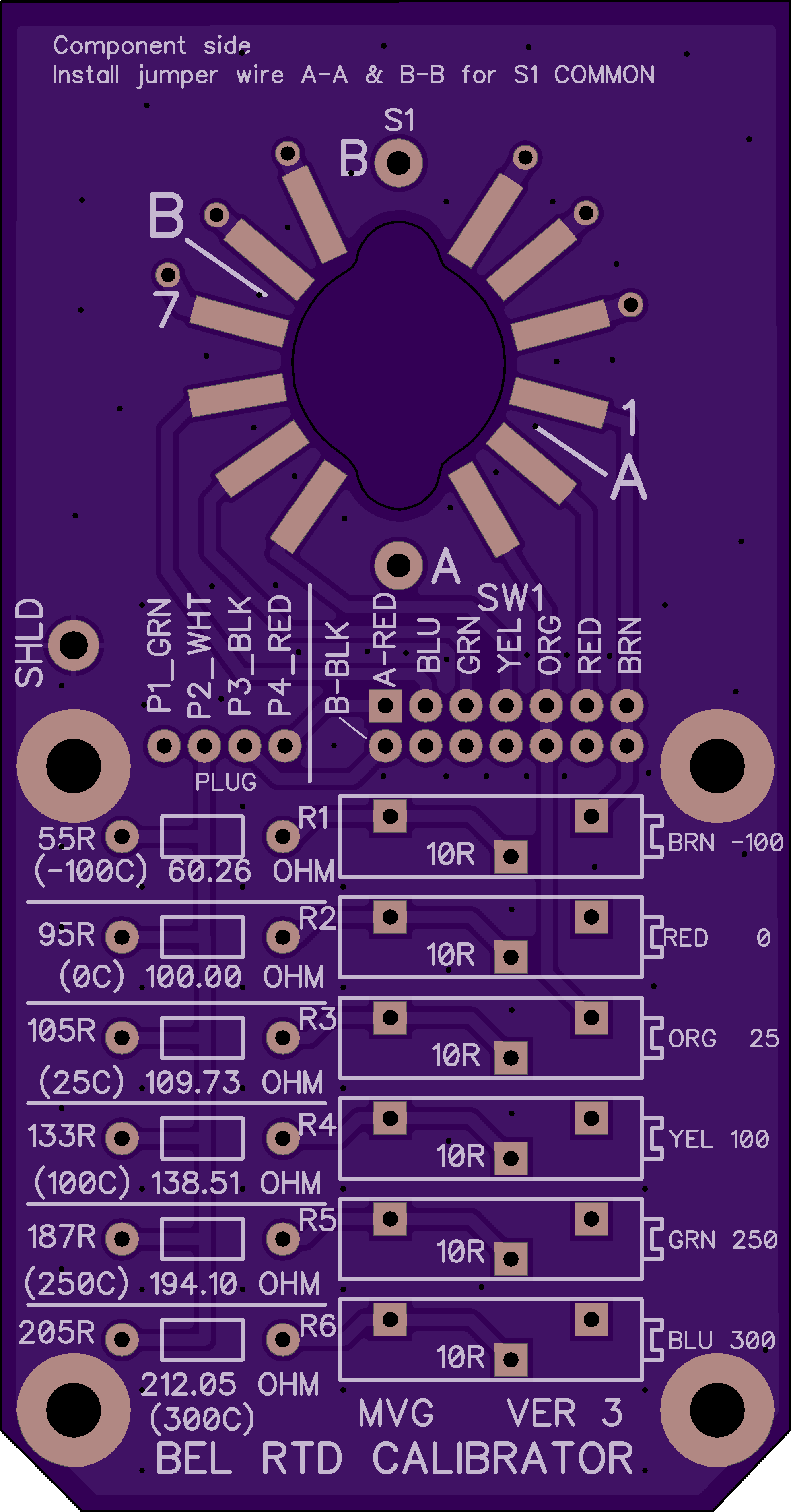

Bottom

2 layer board of 1.96 x 3.75 inches (49.8 x 95.2 mm)
Uploaded: June 20, 2025
Shared: June 20, 2025
Total Price: $36.75

Version 3.0 RTD calibrator PCB adds section to allow soldering of rotary switch directly on to PCB. Effectively makes the through hole switch a surface mount. Negates the need for most hand wiring. Two jumper wires must be used to connect the Switch commons to the PCB. Added section can be cut …

Show full description

Version 3.0 RTD calibrator PCB adds section to allow soldering of rotary switch directly on to PCB. Effectively makes the through hole switch a surface mount. Negates the need for most hand wiring. Two jumper wires must be used to connect the Switch commons to the PCB. Added section can be cut …

Show full description

Top
Bottom
  • Actions

      Ordering shared project

      Hey there! Before ordering, make sure you have all the info you need to complete and use this design. This usually means a component list, and sometimes additional information such as assembly notes, source code, or usage guides.
      Since this is a project designed by a community member, it may contain design errors that prevent it from working as intended. OSH Park cannot place any guarantees about the functionality or correctness of the design.
      Order Board
    • Order Board
    • Download
    • Permalink
    • Embed link
Embeddable link to order this shared Project

RSO_Encoder_Test_Cable_adapter_V1R0

Top
Bottom

2 layer board of 0.59 x 0.88 inches (15.0 x 22.4 mm)
Uploaded: September 23, 2024
Shared: September 23, 2024
Total Price: $2.60

RSO encoder test cable adapter DB15M solder cup edge mount with Hirose DF-11-12DP-3DS using Brookfield RSO-2026 cable assembly.
