ACTIV interface
2 layer board of 4.14 x 2.17 inches (105.0 x 55.1 mm)
Uploaded:
October 30, 2020
Shared:
October 30, 2020
Total Price:
$44.80
The interface PCB to house the screen and the buttons and potentiometer for the ACTIV ventilator system. BoM, source code, and instructions can be found at: https://gitlab.com/luihp/activvent
Available as per the CC-BY-SA licence.
The interface PCB to house the screen and the buttons and potentiometer for the ACTIV ventilator system. BoM, source code, and instructions can be found at: https://gitlab.com/luihp/activvent
Available as per the CC-BY-SA licence.

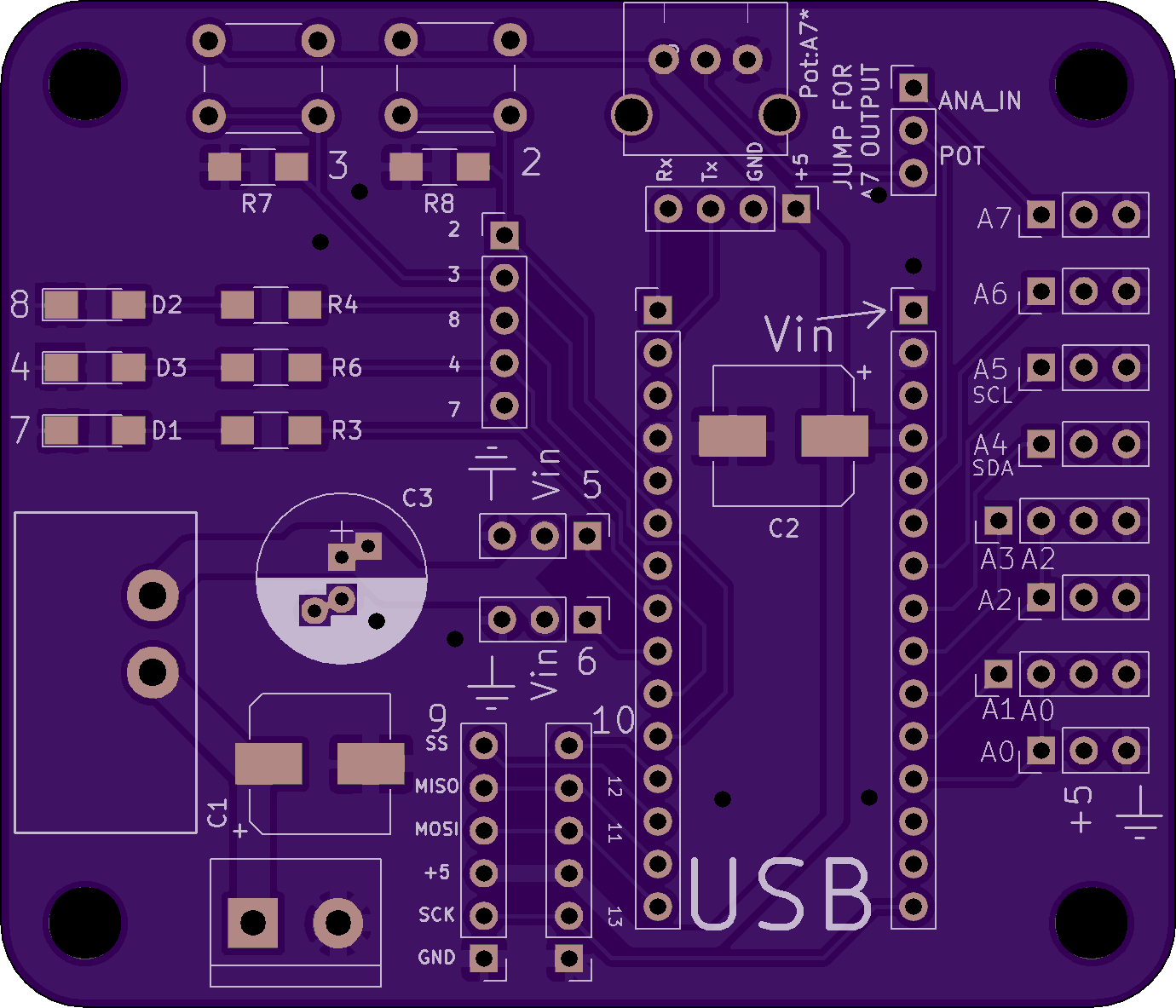

ACTIV Arduino base
2 layer board of 2.76 x 2.37 inches (70.1 x 60.1 mm)
Uploaded:
September 01, 2020
Shared:
September 01, 2020
Total Price:
$32.65

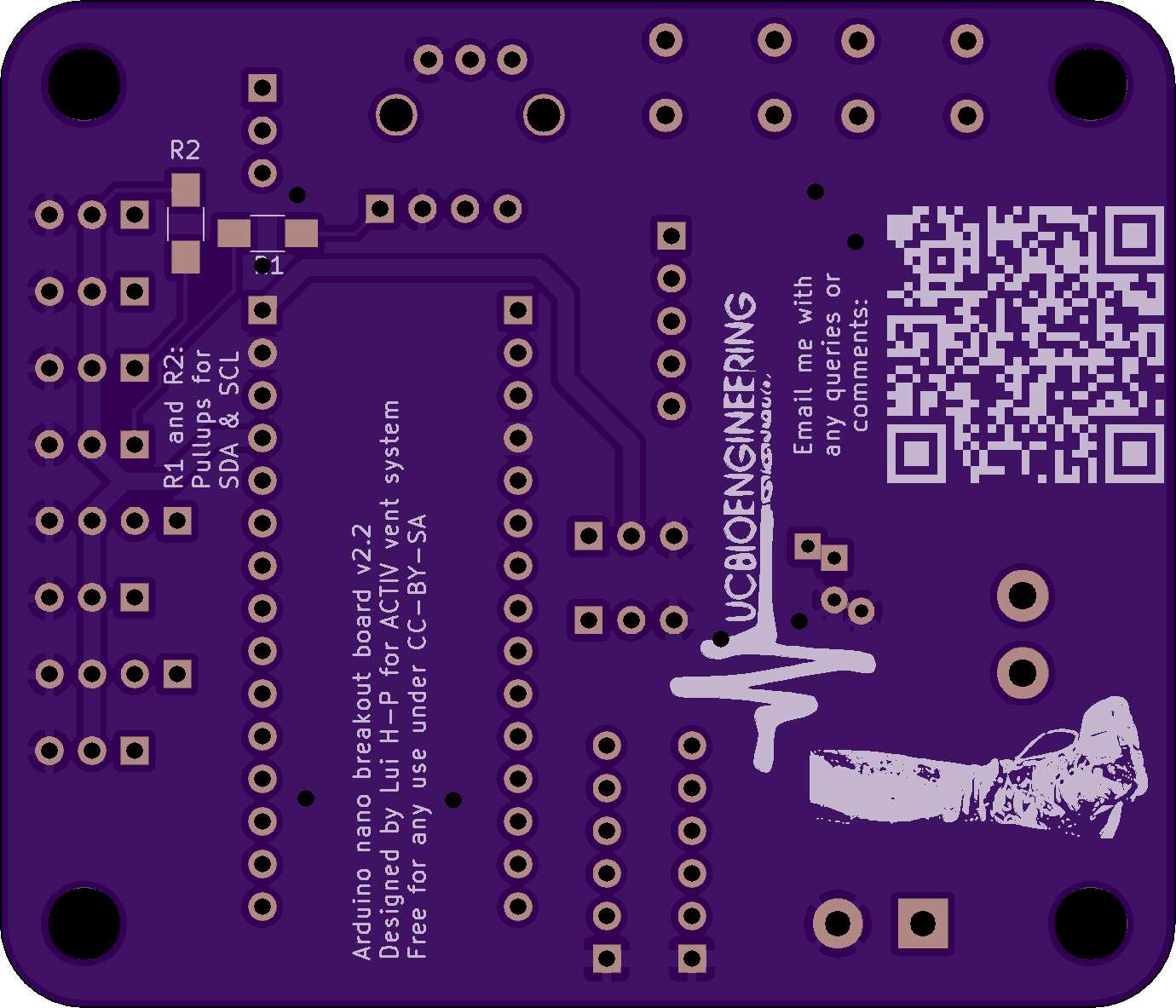

Arduino breakout board which is designed for use with the ACTIV ventilation system (https://gitlab.com/luihp/activvent)
Arduino breakout board which is designed for use with the ACTIV ventilation system (https://gitlab.com/luihp/activvent)

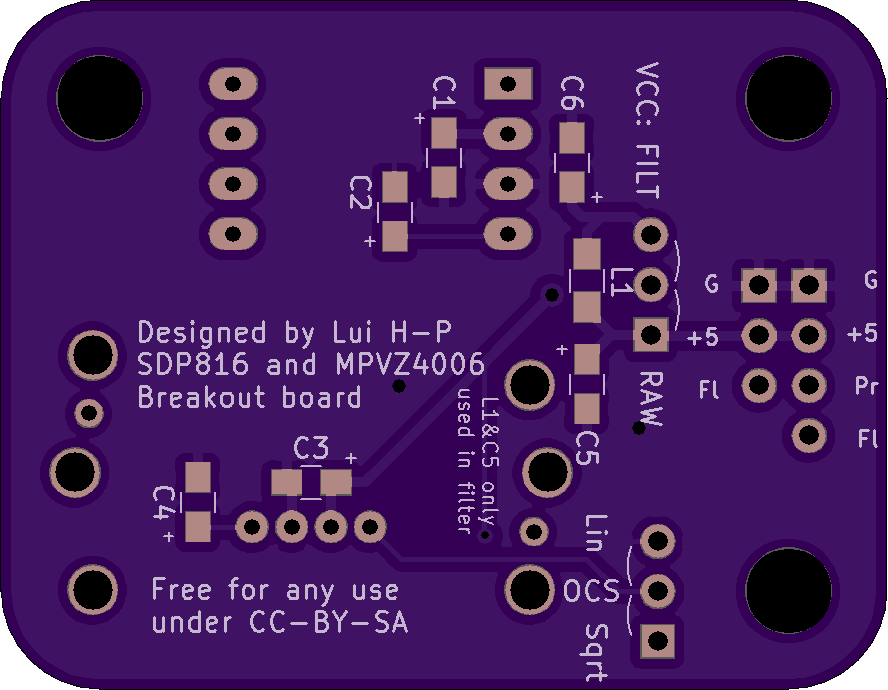

ACTIV sensor breakout.
2 layer board of 1.77 x 1.38 inches (45.1 x 35.0 mm)
Uploaded:
September 01, 2020
Shared:
September 01, 2020
Total Price:
$12.20

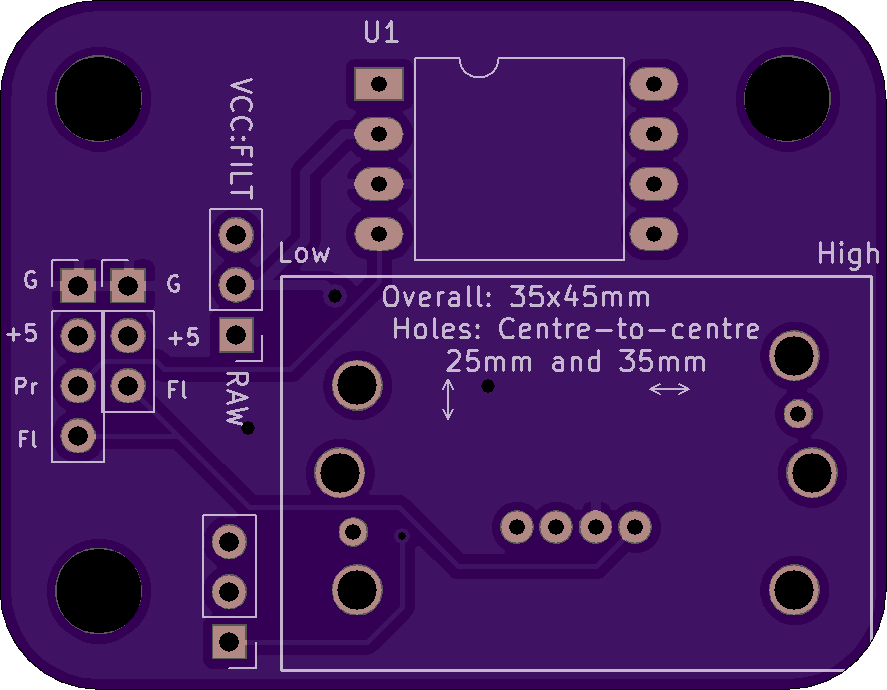

Combined sensor breakout for SDP816 and MPVZ4006. Designed to be part of the ACTIV vent system (https://gitlab.com/luihp/activvent).
Combined sensor breakout for SDP816 and MPVZ4006. Designed to be part of the ACTIV vent system (https://gitlab.com/luihp/activvent).
