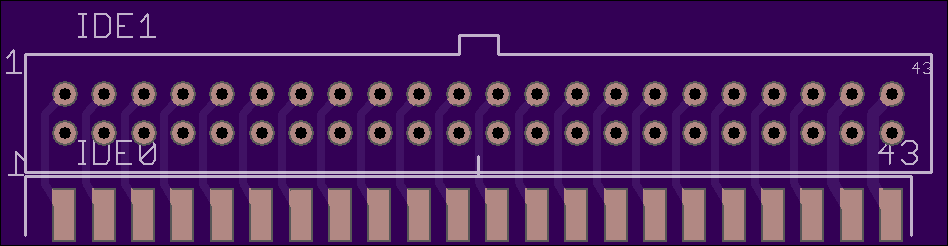

KA47jr 1.1

2 layer board of 1.90 x 0.49 inches (48.2 x 12.4 mm)
Uploaded: July 8th 2017
Shared: July 20th 2018
Total Price: $4.60

44 pin IDE riser

  • Thicker lines
  • Extra thick powerlines

44 pin IDE riser

  • Thicker lines
  • Extra thick powerlines
Embeddable link to order this shared Project

KA47twin 1.2

2 layer board of 1.89 x 0.71 inches (48.0 x 18.1 mm)
Uploaded: July 9th 2017
Shared: July 20th 2018
Total Price: $6.70

44 pin IDE riser for two devices

  • cable select, master on top
  • manual routing, less bends

44 pin IDE riser for two devices

  • cable select, master on top
  • manual routing, less bends
