Millennia Pro Laser Software Command Interlock
2 layer board of 1.97 x 2.76 inches (50.1 x 70.1 mm)
Uploaded:
May 20th 2022
Shared:
May 20th 2022
Total Price:
$27.20

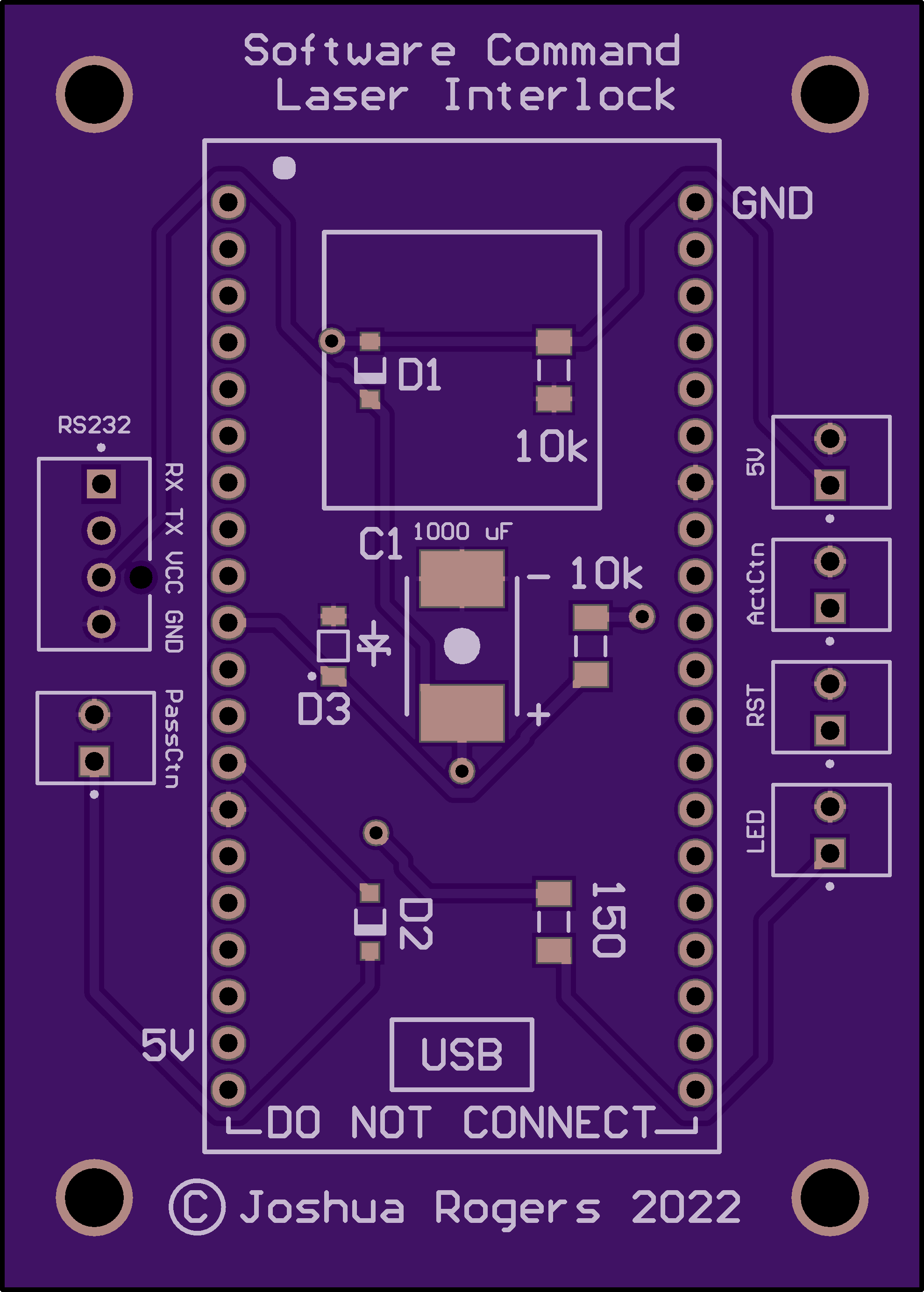

A board to power and breakout the signal pins to an ESP32 NodeMCU development board serving as an interlock for a Millennia Pro pump laser.
A board to power and breakout the signal pins to an ESP32 NodeMCU development board serving as an interlock for a Millennia Pro pump laser.
AOM pulse modulator v2
2 layer board of 1.88 x 1.61 inches (47.8 x 41.0 mm)
Uploaded:
October 29th 2021
Shared:
October 29th 2021
Total Price:
$15.15
A circuit that takes an RF oscillator signal and gates it with a TTL pulse using an ADG919 switch. There are two complementary outputs and power is from 5 V DC to the molex connector. Designed to be panel-mounted with the 4 x BNC connectors.
A circuit that takes an RF oscillator signal and gates it with a TTL pulse using an ADG919 switch. There are two complementary outputs and power is from 5 V DC to the molex connector. Designed to be panel-mounted with the 4 x BNC connectors.
Koheron laser driver room interlock
2 layer board of 2.11 x 1.18 inches (53.6 x 30.1 mm)
Uploaded:
March 8th 2021
Shared:
March 8th 2021
Total Price:
$12.45
A circuit for interlocking a Koheron laser driver with either a 12V active shutter line or normally closed room interlock circuit. When the room interlock 12V line goes low or the normally closed circuit opens, the LCK pin on the Koheron driver board is pulled low via the optocoupler. This boar…
Show full description
A circuit for interlocking a Koheron laser driver with either a 12V active shutter line or normally closed room interlock circuit. When the room interlock 12V line goes low or the normally closed circuit opens, the LCK pin on the Koheron driver board is pulled low via the optocoupler. This boar…
Show full description
Dual type laser interlock board
2 layer board of 3.49 x 1.24 inches (88.6 x 31.6 mm)
Uploaded:
March 4th 2021
Shared:
March 4th 2021
Total Price:
$21.65
A board that takes either 12 V active or normally closed circuit signal from a door interlock to power or shut off a low noise 12 V laser driver.
A board that takes either 12 V active or normally closed circuit signal from a door interlock to power or shut off a low noise 12 V laser driver.
Falling/rising edge detector circuit
2 layer board of 1.44 x 0.66 inches (36.6 x 16.9 mm)
Uploaded:
November 3rd 2020
Shared:
November 3rd 2020
Total Price:
$4.75
A circuit for detecting the falling or rising edge of a fast pulse, depending on the polarity of the diode pair
A circuit for detecting the falling or rising edge of a fast pulse, depending on the polarity of the diode pair
