2xHBridgeV03
2 layer board of 2.88 x 2.11 inches (73.2 x 53.6 mm)
Uploaded:
June 6th 2015
Shared:
July 4th 2015
Total Price:
$30.40
Arduino Compatible, Dual H-Bridge, with Solenoid Driver
Schematic, BOM, Gerbers available at: https://github.com/yoyoJosh/Arduino-Dual-H-Bridge
Arduino Compatible, Dual H-Bridge, with Solenoid Driver
Schematic, BOM, Gerbers available at: https://github.com/yoyoJosh/Arduino-Dual-H-Bridge

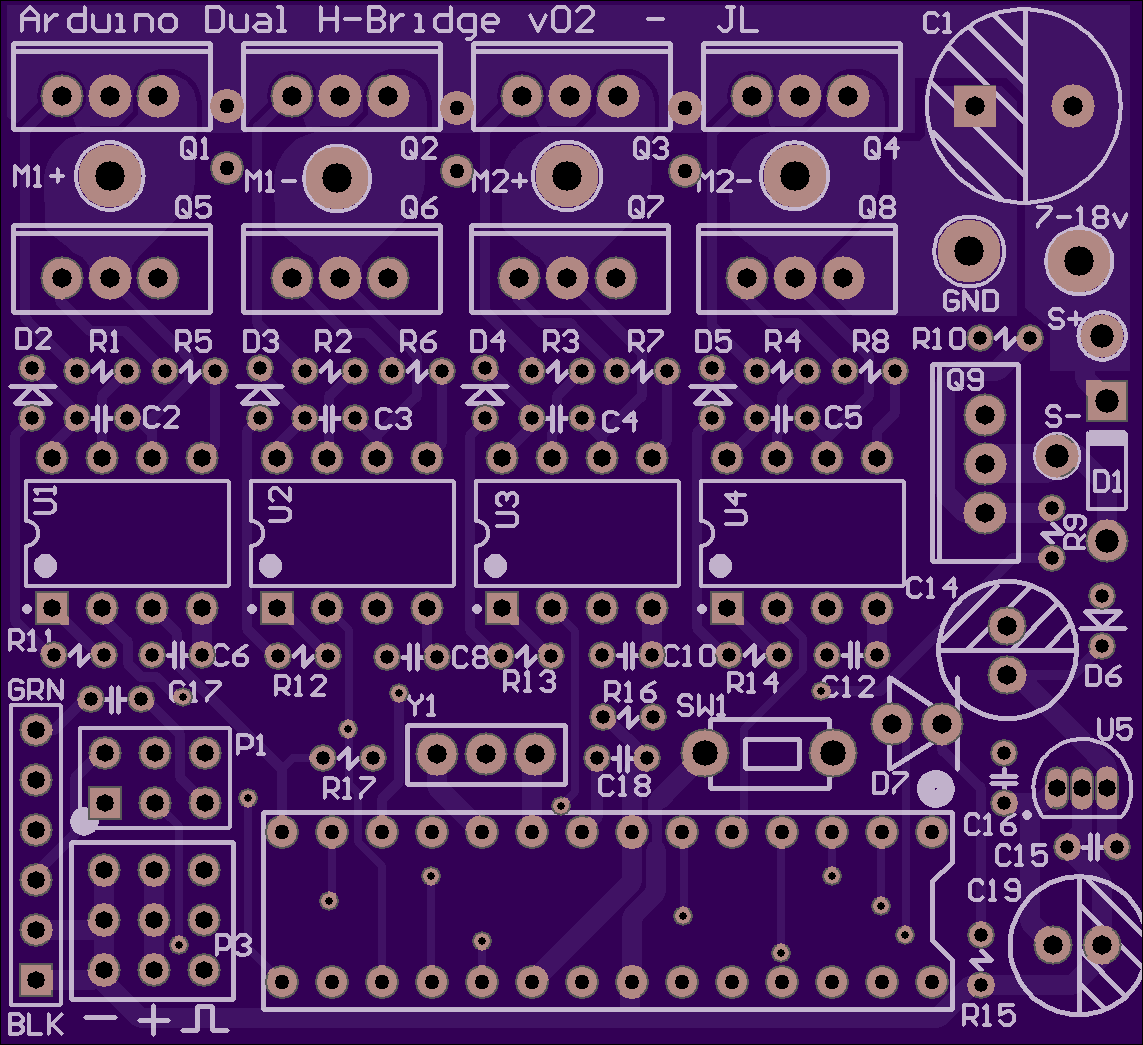

Arduino Dual H-Bridge
2 layer board of 2.28 x 2.09 inches (58.0 x 53.0 mm)
Uploaded:
July 3rd 2014
Shared:
July 23rd 2014
Total Price:
$23.80
Dual h-bridge motor driver and solenoid driver with an Arduino compatible controller
Dual h-bridge motor driver and solenoid driver with an Arduino compatible controller
