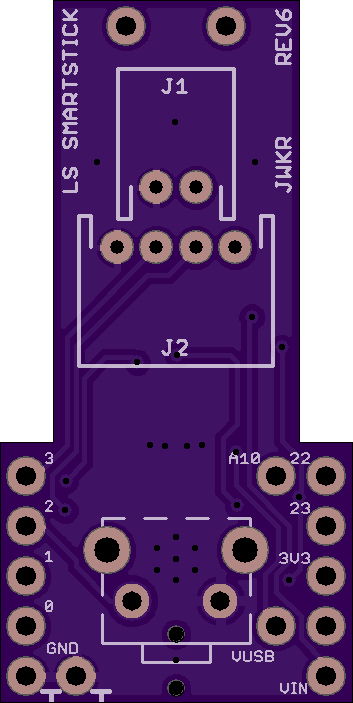

Smartstick REV6

Top

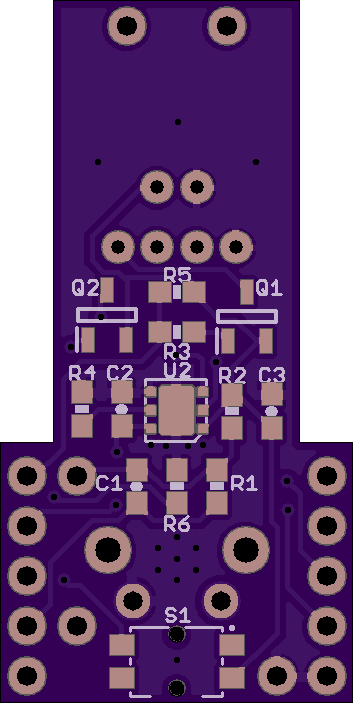

Bottom

2 layer board of 0.71 x 1.41 inches (17.9 x 35.7 mm)
Uploaded: July 01, 2019
Shared: July 25, 2019
Total Price: $4.95

Smartstick Board Revision 6

  • Changes program button to a power cutoff switch
  • Changes power cutoff switch to one with through-hole supports for longevity
  • LEDs now powered by battery directly
  • Updated LED cutoff MOSFET circuit

Smartstick Board Revision 6

  • Changes program button to a power cutoff switch
  • Changes power cutoff switch to one with through-hole supports for longevity
  • LEDs now powered by battery directly
  • Updated LED cutoff MOSFET circuit
Top
Bottom
