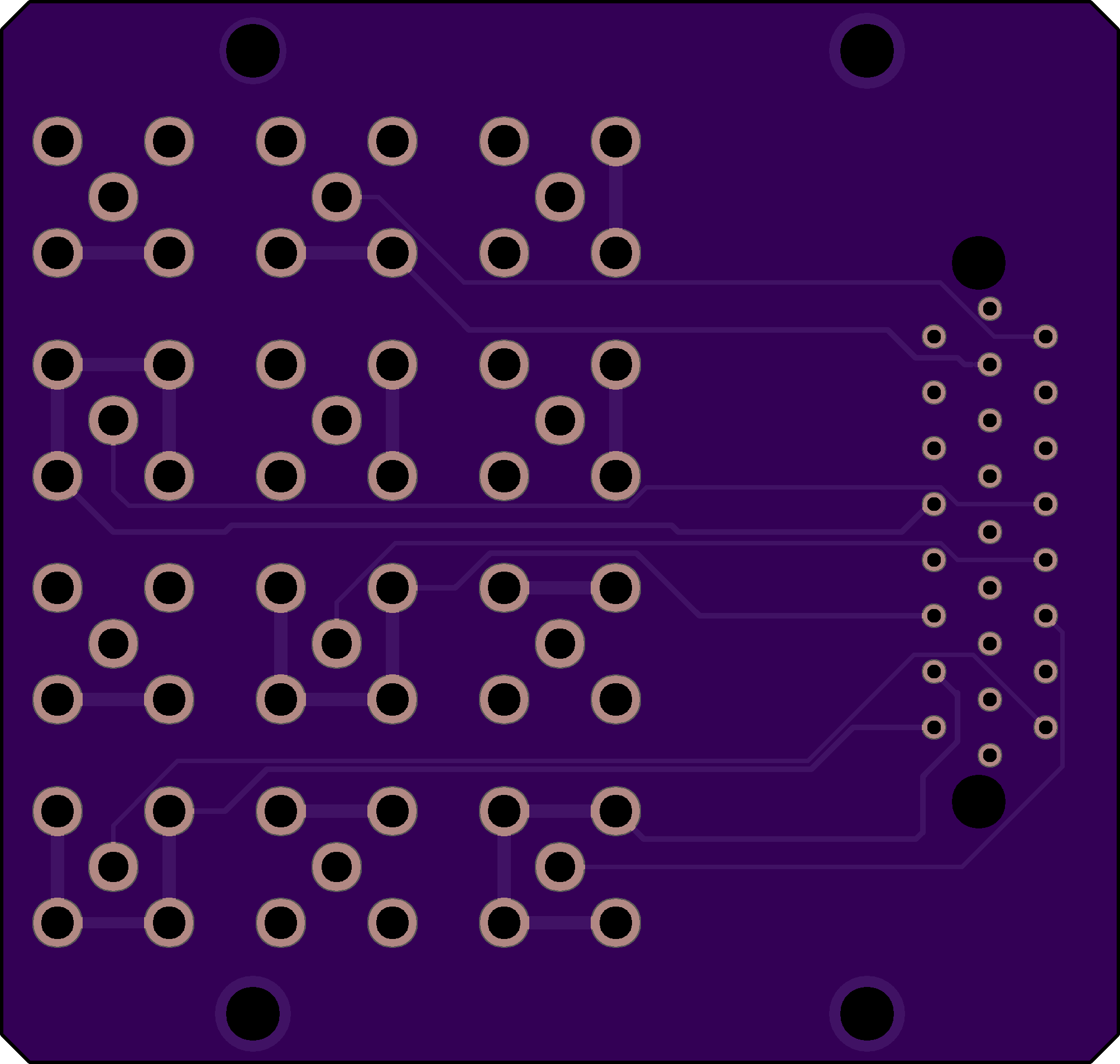

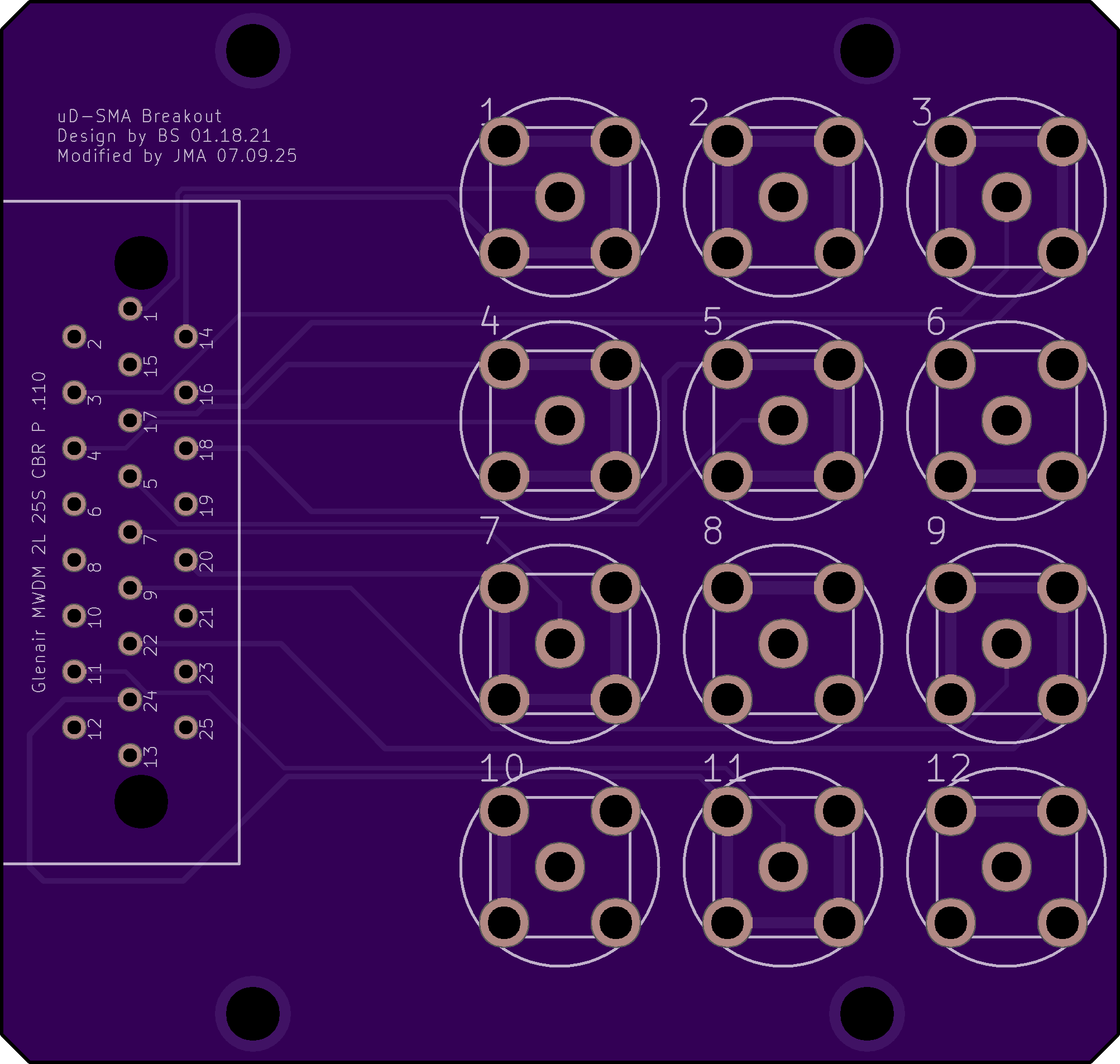

PCB_V6_DSUB-SMA_Corrected_Jadyn.kicad_pcb

2 layer board of 2.00 x 1.90 inches (50.8 x 48.3 mm)
Uploaded: July 10, 2025
Shared: July 10, 2025
Total Price: $19.00

Embeddable link to order this shared Project

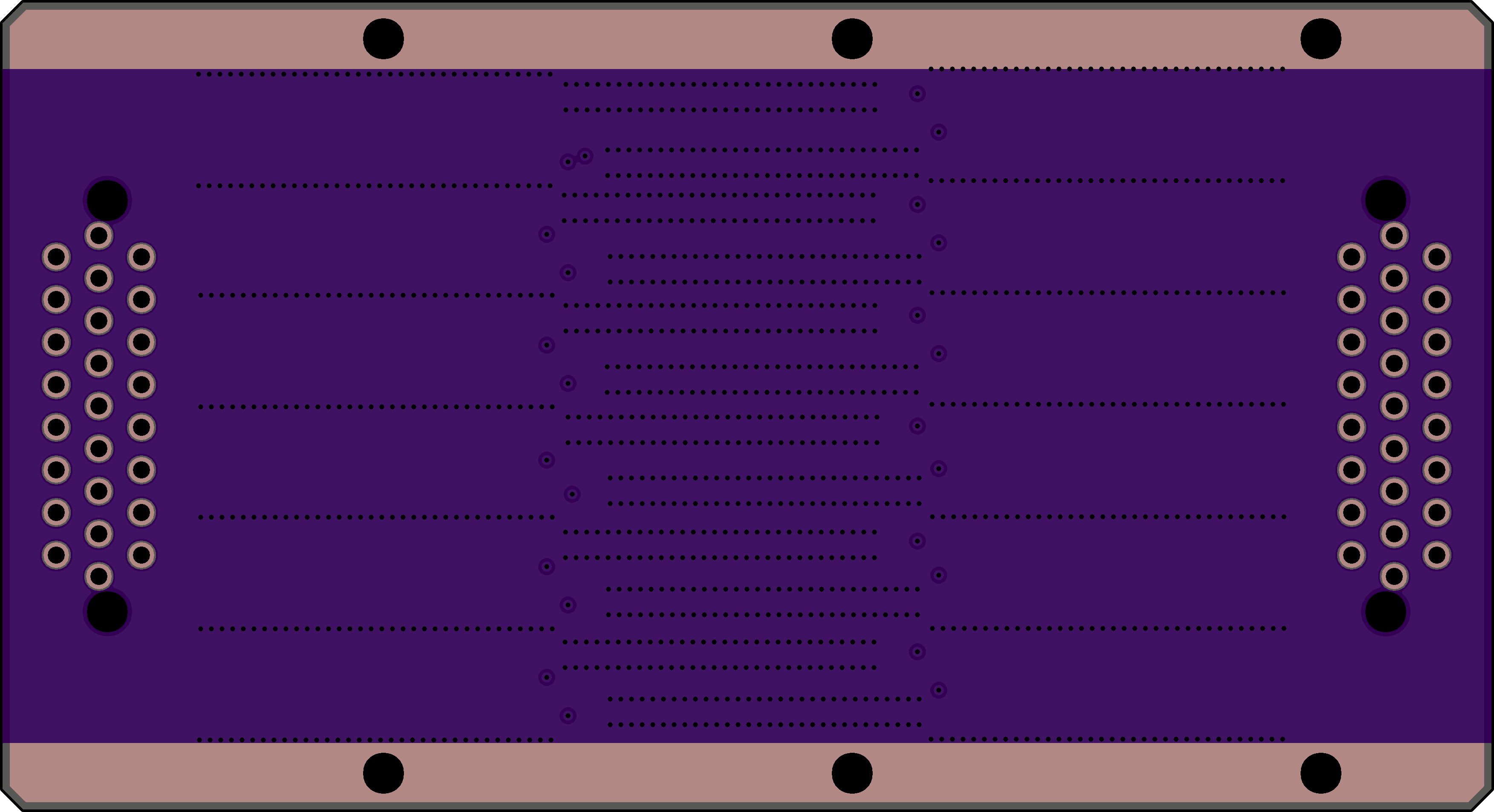

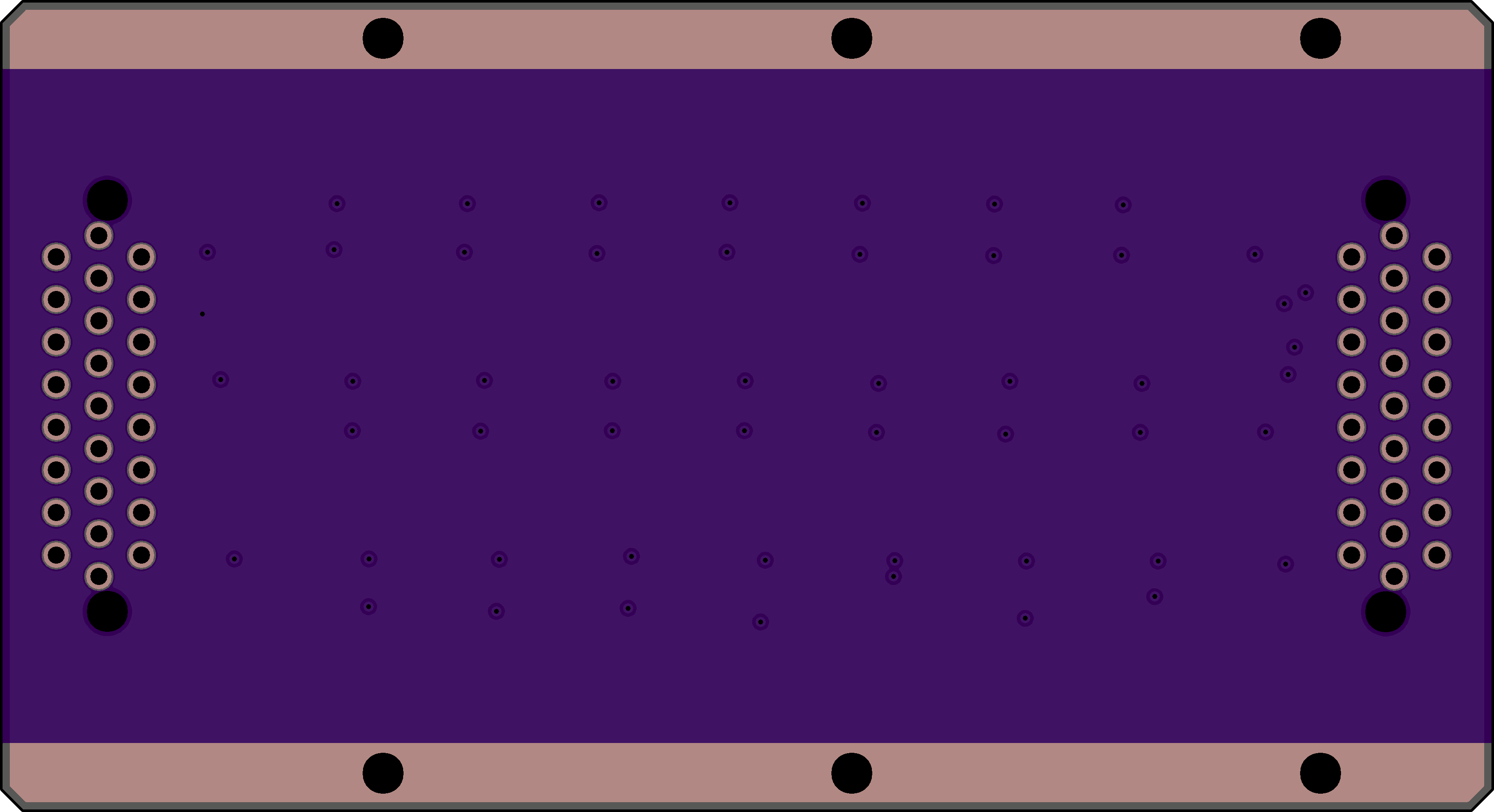

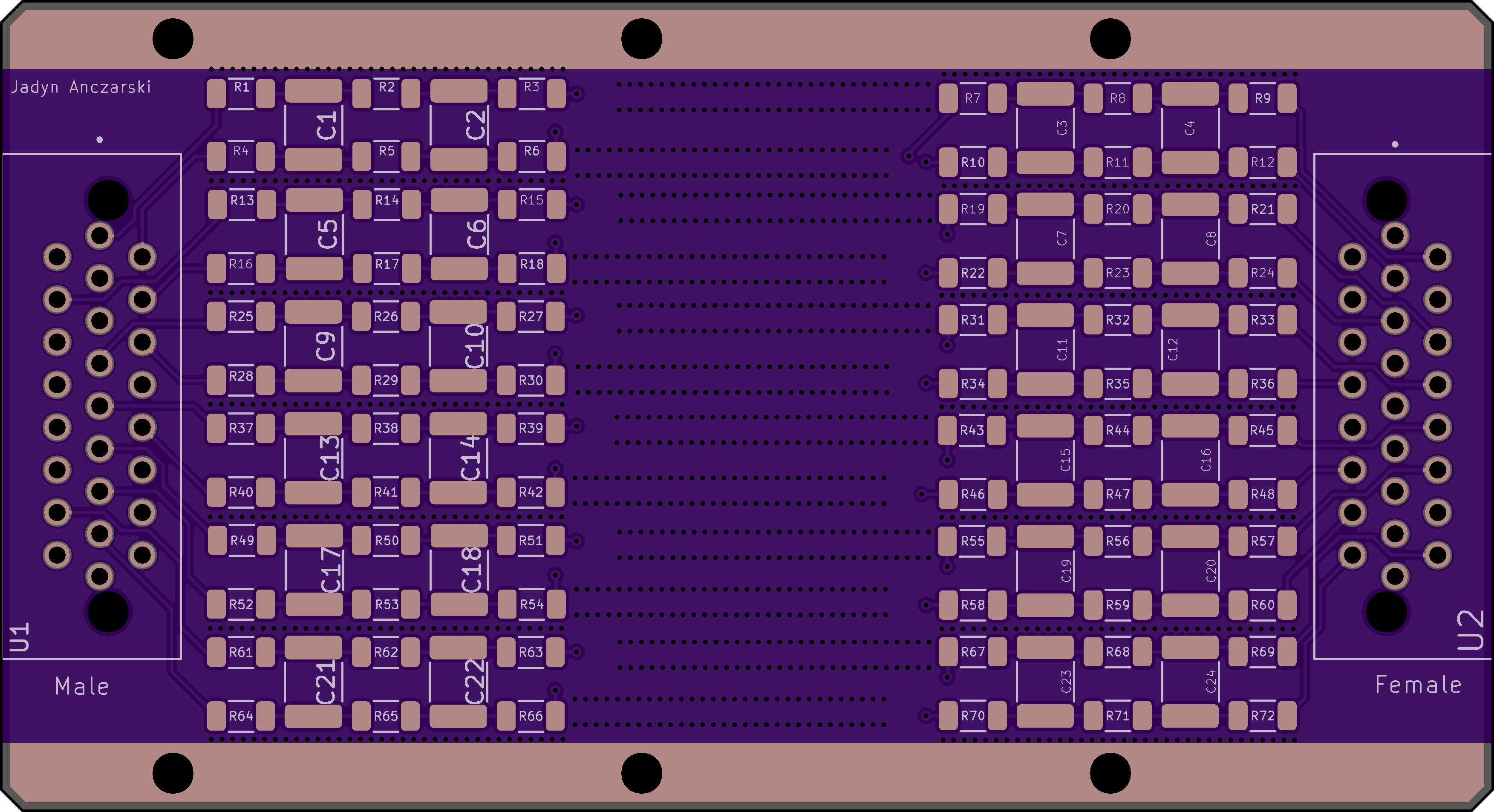

hemt_board_filter_V4.3.1.kicad_pcb

4 layer board of 8.51 x 2.36 inches (216.2 x 60.0 mm)
Uploaded: May 24, 2024
Shared: May 24, 2024
Total Price: $201.00

Embeddable link to order this shared Project

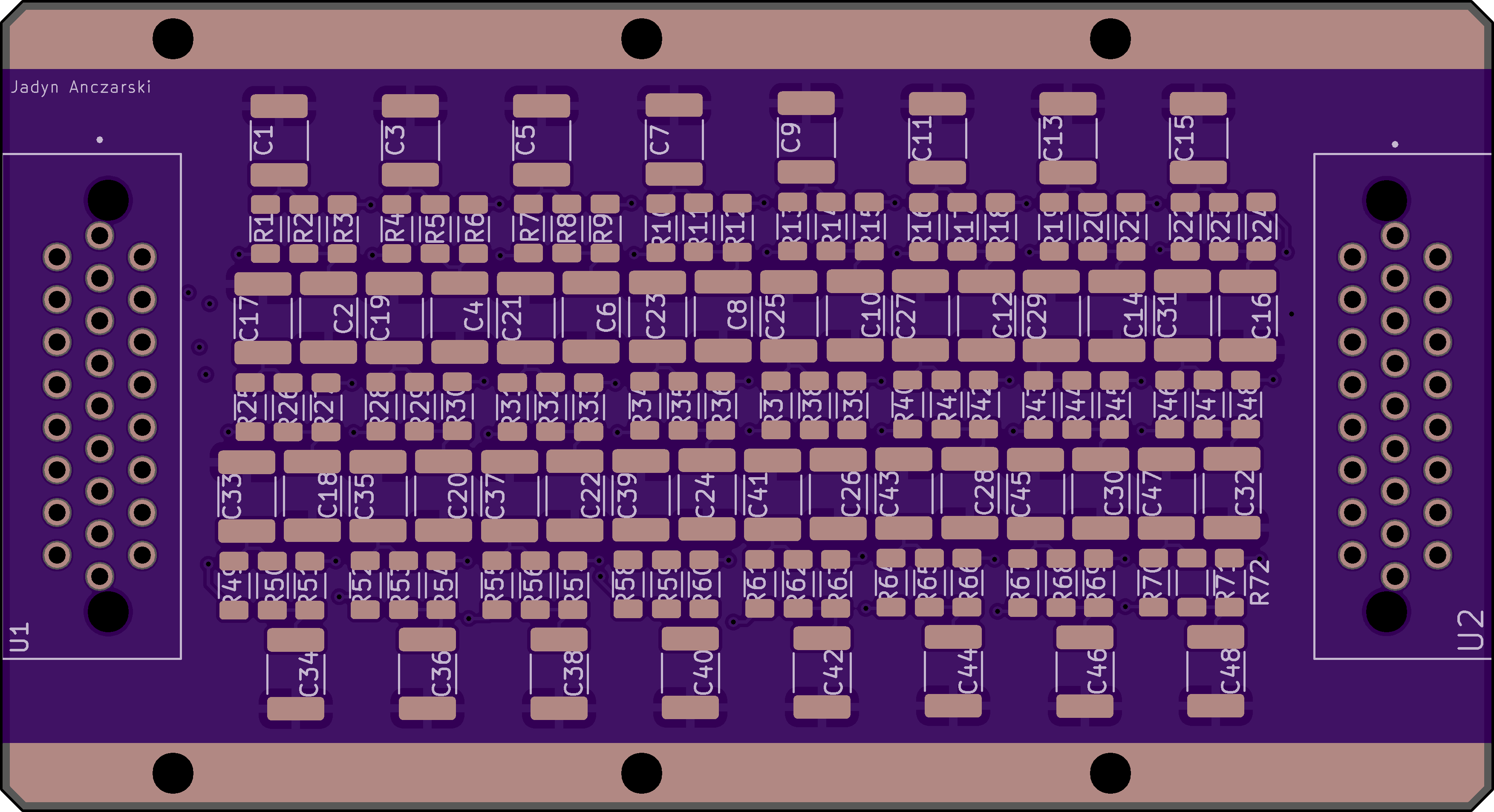

hemt_board_filter_v4.1.kicad_pcb

2 layer board of 8.50 x 2.36 inches (216.0 x 60.0 mm)
Uploaded: May 10, 2024
Shared: May 10, 2024
Total Price: $100.40

Embeddable link to order this shared Project

base_temp_v2_final.kicad_pcb

2 layer board of 1.85 x 2.24 inches (47.0 x 57.0 mm)
Uploaded: June 02, 2023
Shared: June 02, 2023
Total Price: $20.75

Embeddable link to order this shared Project

SplitStage-4K-V2.1.kicad_pcb

2 layer board of 2.92 x 2.86 inches (74.1 x 72.8 mm)
Uploaded: June 02, 2023
Shared: June 02, 2023
Total Price: $41.75

Embeddable link to order this shared Project
