ads7886.kicad_pcb
2 layer board of 1.52 x 0.54 inches (38.6 x 13.6 mm)
Uploaded:
February 25, 2020
Shared:
February 25, 2020
Total Price:
$4.05

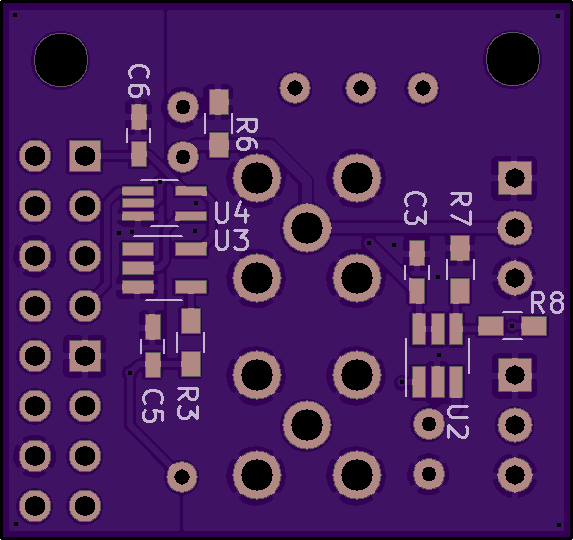

ADC mezzanine board updated for slightly wider inverter compatibility
ADC mezzanine board updated for slightly wider inverter compatibility
ADC Pi Hat 0.3
2 layer board of 1.15 x 1.08 inches (29.1 x 27.4 mm)
Uploaded:
January 28, 2020
Shared:
January 28, 2020
Total Price:
$6.15

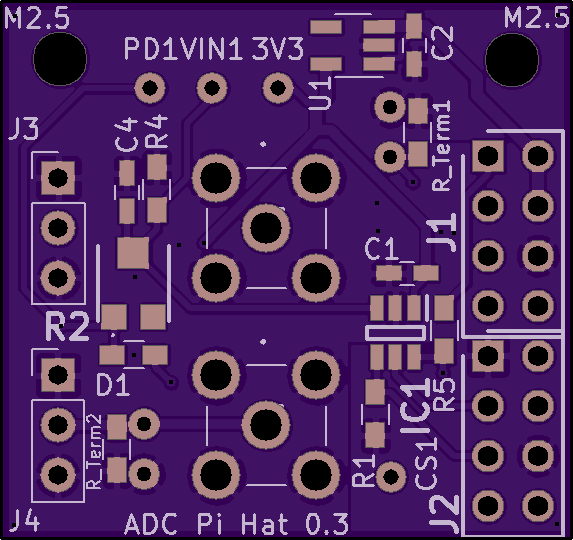

"ADC Pi Hat 0.3"
ADC Board for Raspberry Pi Zero W
ADS7886+High Speed Peak Detector
External and/or Pi Trigger
Pads for Peak Detector Gain Resistors
Pads for Input Termination Resistors
SMA or 2.54mm Analog Input
"ADC Pi Hat 0.3"
ADC Board for Raspberry Pi Zero W
ADS7886+High Speed Peak Detector
External and/or Pi Trigger
Pads for Peak Detector Gain Resistors
Pads for Input Termination Resistors
SMA or 2.54mm Analog Input
