XRF to Console (Based on Belfryboy's design)

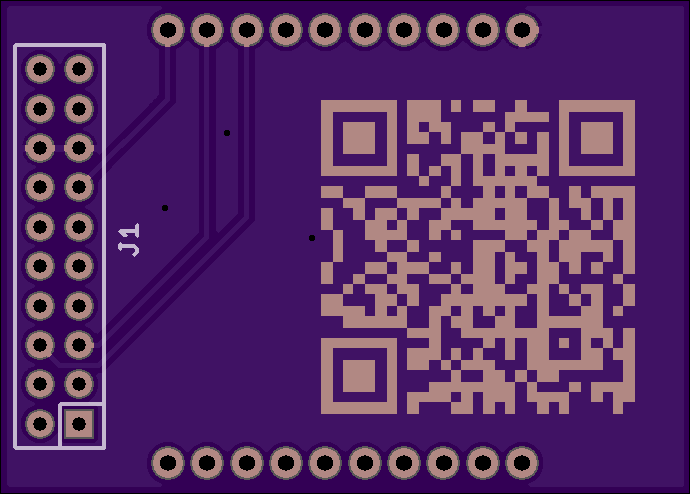

2 layer board of 1.38 x 0.99 inches (35.0 x 25.0 mm)
Uploaded:
May 16th 2018
Shared:
May 18th 2018
Total Price:
$6.75
This is a modified version of Belfryboy's XRF to console board for interfacing a Davis weather station console to an XBee style RF module.
The layout for U2 (at45db011d nor flash) was changed to an EIAJ package, and the capacitor was changed to a tantalum A profile. Otherwise, the layout is u…
Show full description
This is a modified version of Belfryboy's XRF to console board for interfacing a Davis weather station console to an XBee style RF module.
The layout for U2 (at45db011d nor flash) was changed to an EIAJ package, and the capacitor was changed to a tantalum A profile. Otherwise, the layout is u…
