fg_PMHB-01

Top
Bottom

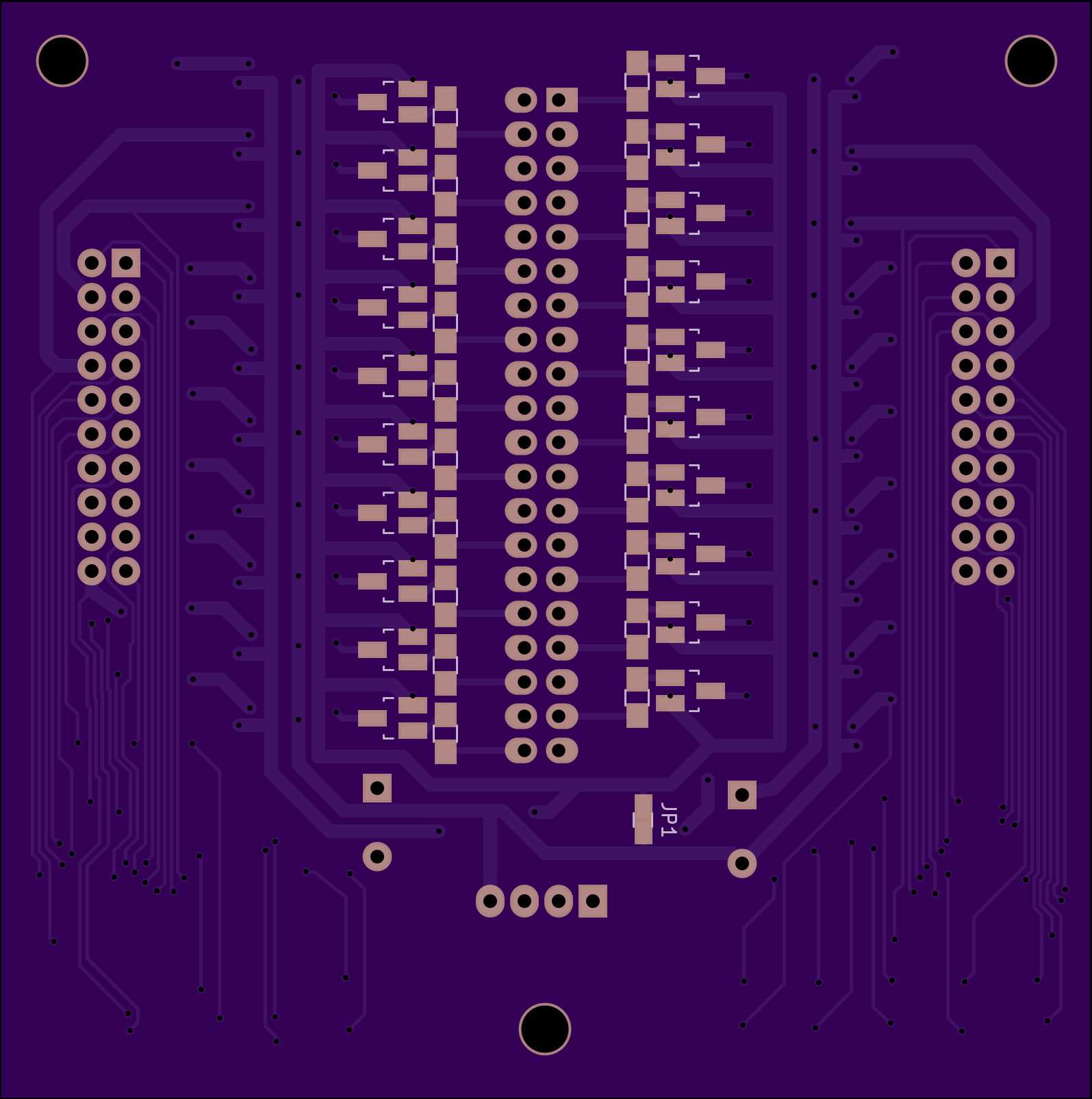

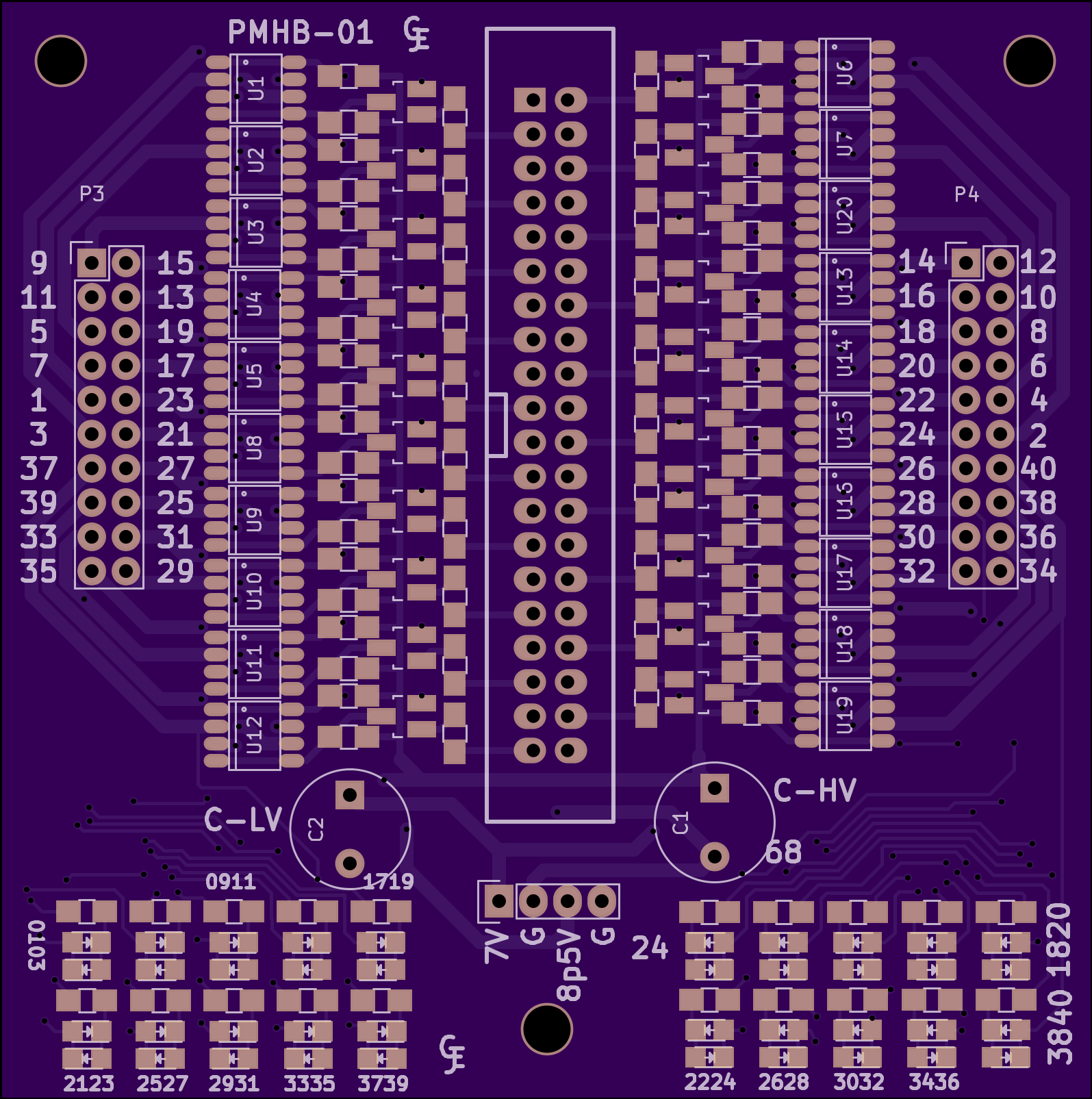

2 layer board of 3.19 x 3.21 inches (81.0 x 81.6 mm)
Uploaded: April 10, 2016
Shared: February 01, 2017
Total Price: $51.20

20 HBridges

40-pin 3V3 inputs, 2x20-pin <30V 2A outputs.

Ribbon cables galore.

20 HBridges

40-pin 3V3 inputs, 2x20-pin <30V 2A outputs.

Ribbon cables galore.

Top
Bottom
  • Actions

      Ordering shared project

      Hey there! Before ordering, make sure you have all the info you need to complete and use this design. This usually means a component list, and sometimes additional information such as assembly notes, source code, or usage guides.
      Since this is a project designed by a community member, it may contain design errors that prevent it from working as intended. OSH Park cannot place any guarantees about the functionality or correctness of the design.
      Order Board
    • Order Board
    • Download
    • Permalink
    • Embed link
Embeddable link to order this shared Project

fg_PMHB-01-SBO

Top
Bottom

2 layer board of 1.19 x 2.87 inches (30.2 x 72.9 mm)
Uploaded: March 27, 2016
Shared: February 01, 2017
Total Price: $17.05

Solder pad breakout for fg_PMHB-01

1.2x3" 40-pin socket for ribbon cable.

Solder pad breakout for fg_PMHB-01

1.2x3" 40-pin socket for ribbon cable.
