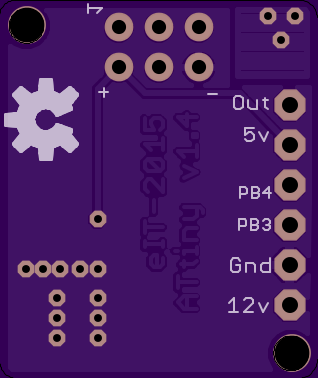

ATtiny uB-v1.4

Top

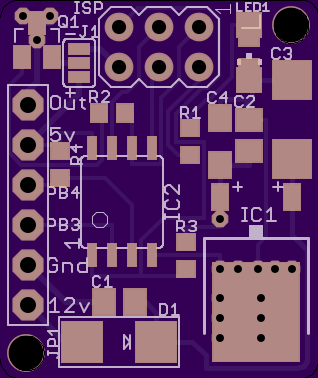

Bottom

2 layer board of 0.80 x 0.95 inches (20.2 x 24.0 mm)
Uploaded: January 25, 2015
Shared: January 25, 2015
Total Price: $3.75

ATtiny13/25 with power, ISP and headears.

  • Q1 can be NPN or PNP or logic level MOSFET N or P by proper selection on J1 solder jumper.
  • Qty Value Device Package Parts

1 SOLDERJUMPER_2WAYS SJ_3 J1
2 .1u C-EUC0805K C0805K C1, C3
2 10k R-EU_R0603 R0603 R3, R4
1 10u CPO…
