Roland compatible multi-bank MRAM memory card

2 layer board of 3.39 x 2.13 inches (86.0 x 54.0 mm)
Uploaded: December 19th 2021
Shared: December 24th 2021
Total Price: $35.95

An MRAM based modern memory card for many Roland instruments made in the late 80s and early 90s. GitHub project: https://github.com/dojoe/roland-mram-card

An MRAM based modern memory card for many Roland instruments made in the late 80s and early 90s. GitHub project: https://github.com/dojoe/roland-mram-card

Embeddable link to order this shared Project

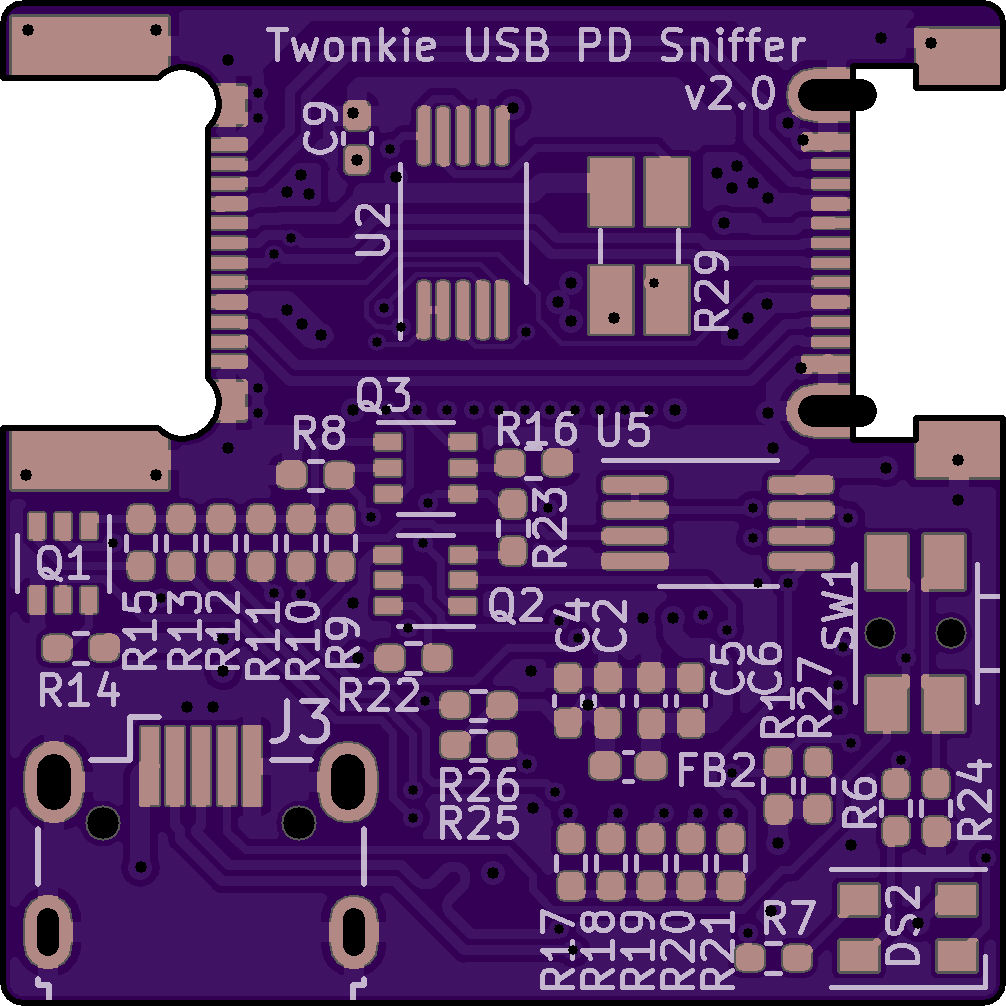

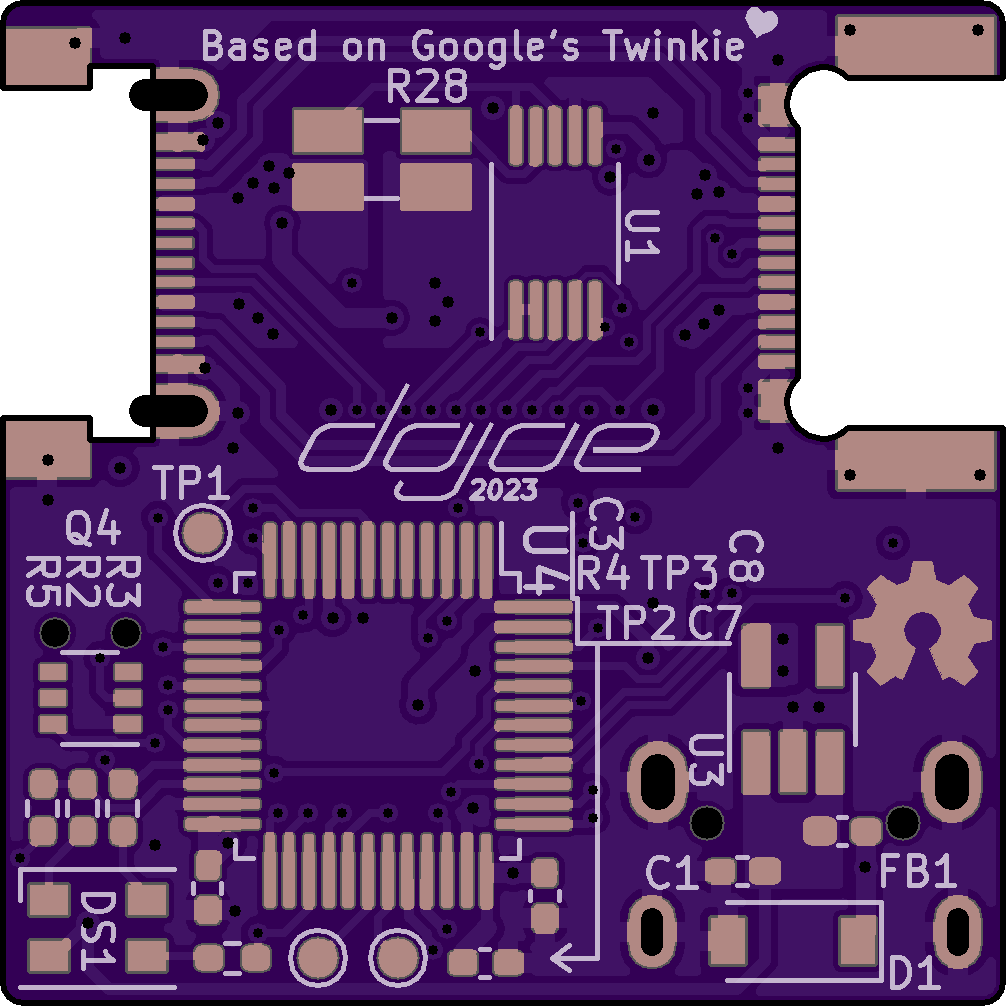

Twonkie USB PD Sniffer

4 layer board of 1.00 x 1.00 inches (25.5 x 25.5 mm)
Uploaded: February 13th 2021
Shared: February 16th 2021
Total Price: $10.00

A USB PD protocol sniffer and injector based on Google's Twinkie and optimized towards manufacturability by hand in one-off quantities.

A USB PD protocol sniffer and injector based on Google's Twinkie and optimized towards manufacturability by hand in one-off quantities.

Embeddable link to order this shared Project

K2500-PRAM-revA

2 layer board of 4.51 x 0.73 inches (114.4 x 18.6 mm)
Uploaded: October 15th 2017
Shared: October 7th 2018
Total Price: $16.45

K2500 PRAM board revision A

K2500 PRAM board revision A

Embeddable link to order this shared Project
