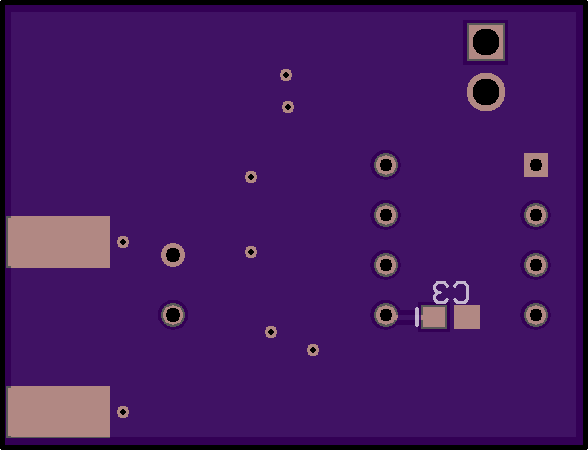

PULSEGEN1_R1p0_02_28_2020
2 layer board of 1.18 x 0.90 inches (29.9 x 22.9 mm)
Uploaded:
March 10th 2020
Shared:
March 10th 2020
Total Price:
$5.25
Pulse generator from B. Harbour
http://hackaday.io/project/170305-quick-and-simple-pulse-generator
Pulse generator from B. Harbour
http://hackaday.io/project/170305-quick-and-simple-pulse-generator
040108-1-osh
2 layer board of 3.86 x 0.97 inches (98.0 x 24.6 mm)
Uploaded:
May 13th 2019
Shared:
May 14th 2019
Total Price:
$18.65
poor man´s 1 GHz probe
https://www.elektormagazine.com/magazine/elektor-200410/17818
poor man´s 1 GHz probe
https://www.elektormagazine.com/magazine/elektor-200410/17818
