MegaRAM
2 layer board of 2.85 x 1.73 inches (72.4 x 44.0 mm)
Uploaded:
November 12th 2019
Shared:
November 14th 2019
Total Price:
$24.65

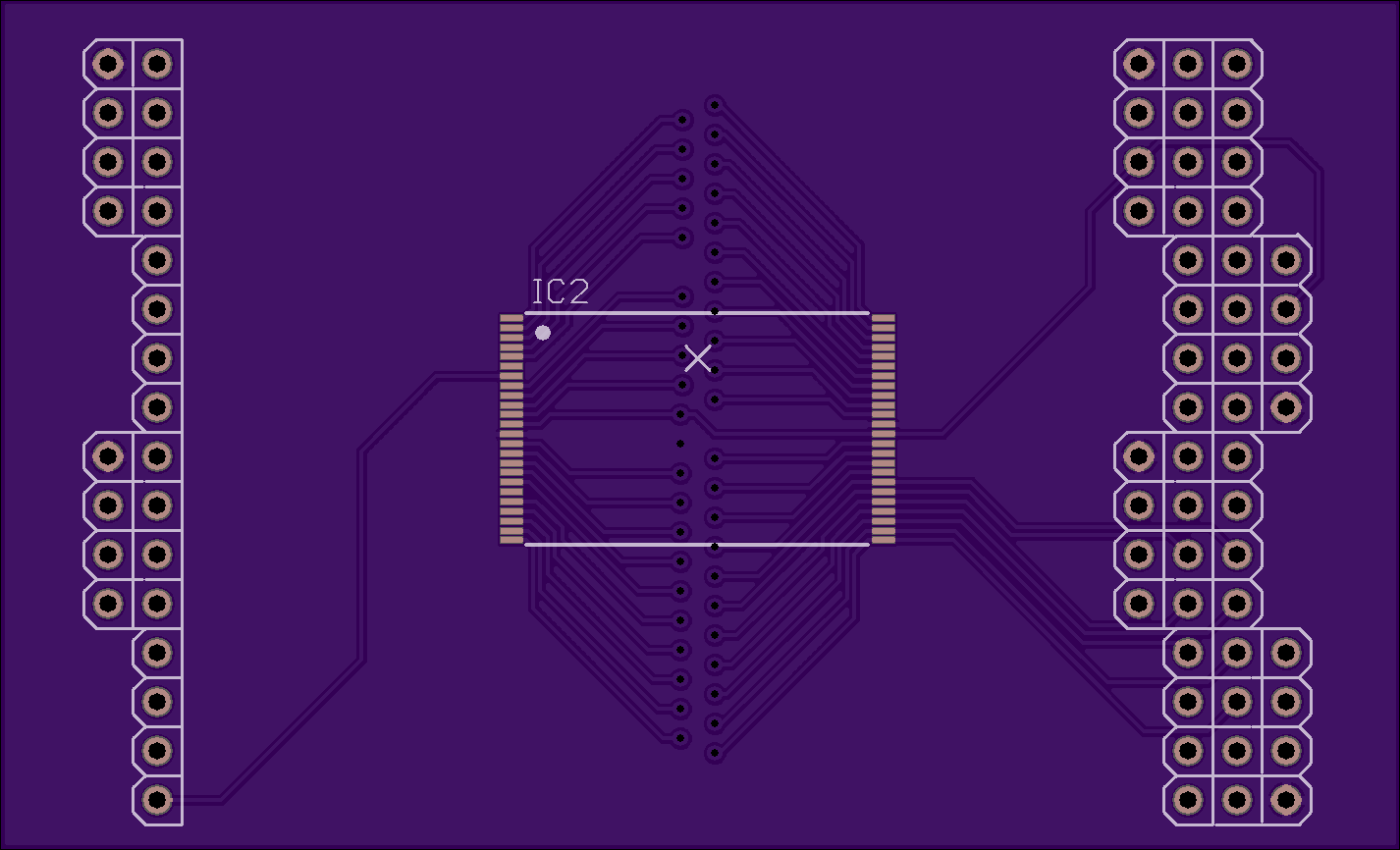

Megawing board that fits Pipistrello and Papilio FPGA boards. Provides dual 4Mbyte of fast 10ns SRAM. All memory has 16 bit data bus for increased throughput. Memory chip is a IS61WV204816BLL-10 or any other pin compatible.
Megawing board that fits Pipistrello and Papilio FPGA boards. Provides dual 4Mbyte of fast 10ns SRAM. All memory has 16 bit data bus for increased throughput. Memory chip is a IS61WV204816BLL-10 or any other pin compatible.
MegaFlash
2 layer board of 2.62 x 1.63 inches (66.6 x 41.4 mm)
Uploaded:
November 14th 2019
Shared:
November 14th 2019
Total Price:
$21.35
Megawing board that fits Pipistrello and Papilio FPGA boards. Provides 4Mbyte of fast 10ns SRAM and 16MByte of 55ns FLASH. All memory has 16 bit data bus for increased throughput. Memory chips are IS61WV204816BLL-10 and SST39LF800A-55
Megawing board that fits Pipistrello and Papilio FPGA boards. Provides 4Mbyte of fast 10ns SRAM and 16MByte of 55ns FLASH. All memory has 16 bit data bus for increased throughput. Memory chips are IS61WV204816BLL-10 and SST39LF800A-55
