QStat_Interface_XB_3

Top
Bottom

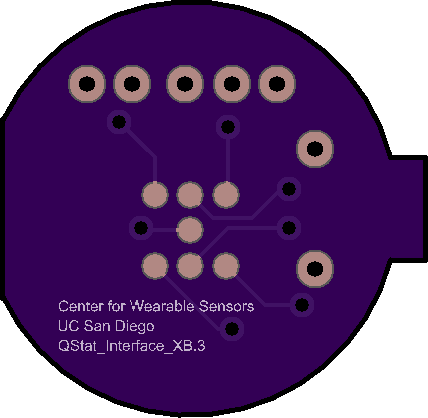

2 layer board of 0.86 x 0.84 inches (21.7 x 21.3 mm)
Uploaded: February 20, 2020
Shared: February 20, 2020
Total Price: $3.55

3.6mm pogo pin center to center spacing on top, standard 1.8mm on bottom

3.6mm pogo pin center to center spacing on top, standard 1.8mm on bottom

Top
Bottom
