FlexyTx_Breadboard_Breakout-v0.1e_2023-05-11
2 layer board of 2.02 x 1.13 inches (51.4 x 28.8 mm)
Uploaded:
May 11th 2023
Shared:
May 11th 2023
Total Price:
$11.45
Breadboard connector for RFM69CW (and other HopeRF radios) with 3v3 power supply, FTDI connection and breakout for all RFM signals. It uses FlexyPins by SolderParty to the radio can be tested without soldering it to the board.
Breadboard connector for RFM69CW (and other HopeRF radios) with 3v3 power supply, FTDI connection and breakout for all RFM signals. It uses FlexyPins by SolderParty to the radio can be tested without soldering it to the board.
RFM69_FlexyPin_Shield_0-E_2023-02-14
2 layer board of 2.05 x 1.25 inches (52.2 x 31.8 mm)
Uploaded:
February 14th 2023
Shared:
April 15th 2023
Total Price:
$12.85

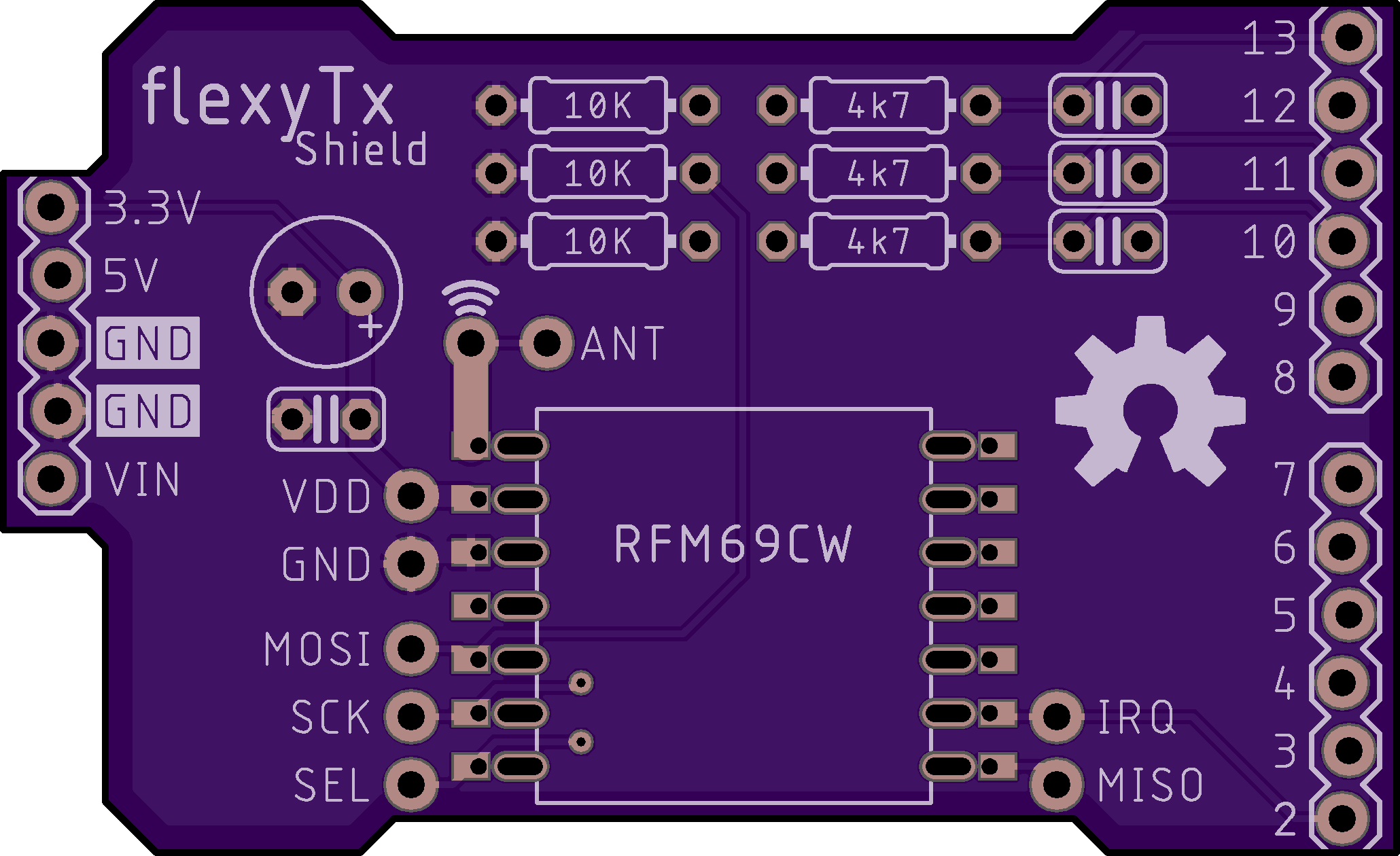

A breakout for RFM69CW HopeRF radios designed as a shield for Arduino Uno. It is notoriously difficult to connect HopeRF radios, which are 3v3 devices, to Arduino, which are 5V devices. The 47uF and .1uF capacitors in this design have worked for me.
A breakout for RFM69CW HopeRF radios designed as a shield for Arduino Uno. It is notoriously difficult to connect HopeRF radios, which are 3v3 devices, to Arduino, which are 5V devices. The 47uF and .1uF capacitors in this design have worked for me.
