My Projects

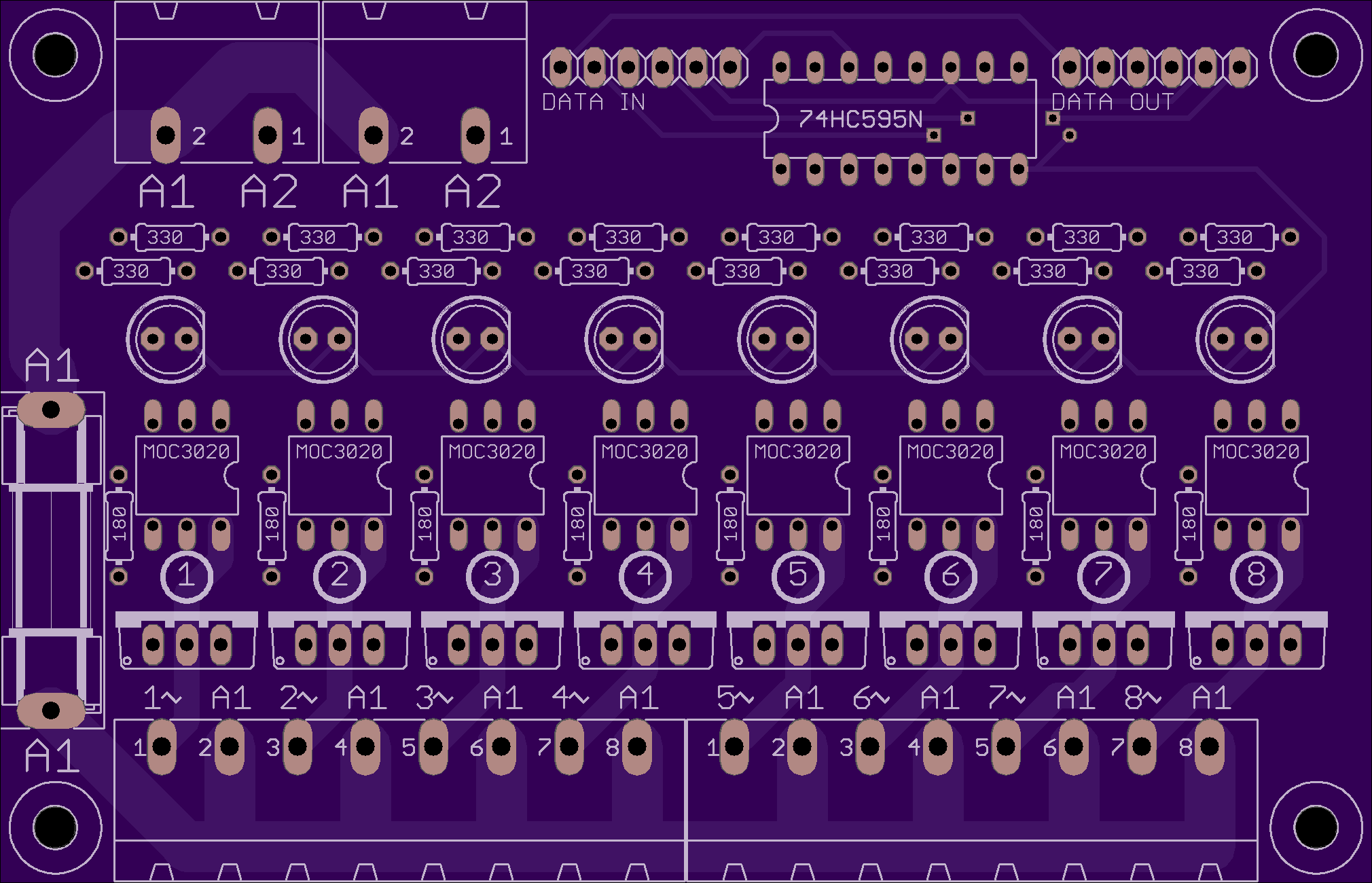

Triac Fanout Rev1

2 layer board of 4.04 x 2.60 inches (102.6 x 66.0 mm)
Uploaded: April 27th 2014
Shared: May 6th 2014
Total Price: $52.45

Shift register to 8x triacs

Shift register to 8x triacs

Embeddable link to order this shared Project

Dash7DuinoV1

2 layer board of 3.29 x 0.72 inches (83.6 x 18.2 mm)
Uploaded: January 22nd 2014
Shared: January 22nd 2014
Total Price: $11.80

My first board. :) Followed the "Make Your Own D*mn Board" from the recent MAKE Magazine.

My first board. :) Followed the "Make Your Own D*mn Board" from the recent MAKE Magazine.

Embeddable link to order this shared Project
