Shared Projects by ajacocks

Shared Projects by ajacocks

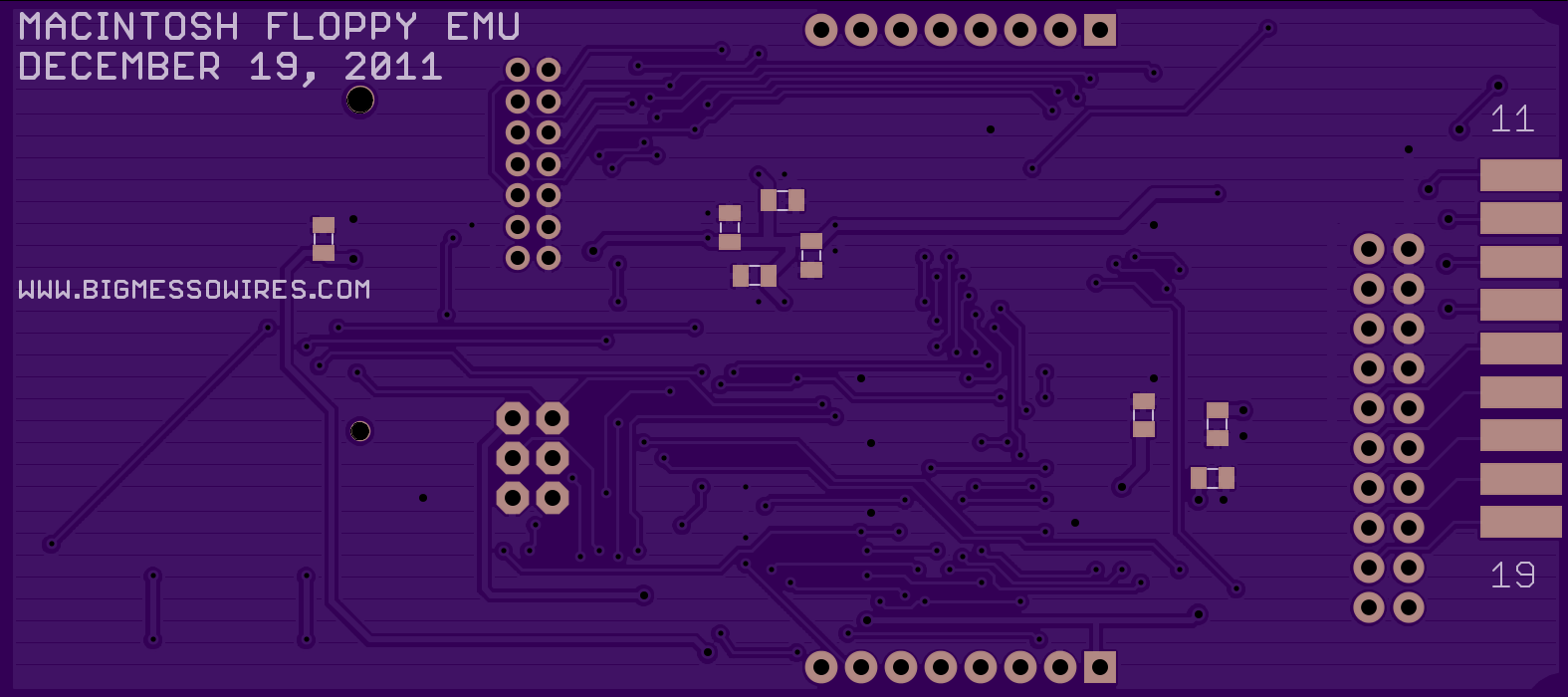

Floppy EMU

2 layer board of 3.94 x 1.75 inches (100.0 x 44.4 mm)
Uploaded: October 21st 2013
Shared: June 25th 2018
Total Price: $34.40

68k Mac floppy emulator

68k Mac floppy emulator

Embeddable link to order this shared Project

NIM

2 layer board of 0.89 x 2.56 inches (22.5 x 65.0 mm)
Uploaded: November 24th 2013
Shared: June 25th 2018
Total Price: $11.30

Nexys 3 I/O Pin Monitor

Nexys 3 I/O Pin Monitor

Embeddable link to order this shared Project

PI1541 Adapter

2 layer board of 2.24 x 2.56 inches (56.8 x 65.0 mm)
Uploaded: May 25th 2018
Shared: June 25th 2018
Total Price: $28.60

This is a PCB based on the Steve White schematic. You just plug on the top of a RPi 3 and you have a fully working 1541 disk emulator.

This is a PCB based on the Steve White schematic. You just plug on the top of a RPi 3 and you have a fully working 1541 disk emulator.

Embeddable link to order this shared Project

C128 Video DAC v2.1

2 layer board of 3.44 x 1.26 inches (87.3 x 32.0 mm)
Uploaded: March 24th 2014
Shared: February 1st 2016
Total Price: $21.65

Commodore 128 RGB output converter

Commodore 128 RGB output converter

Embeddable link to order this shared Project

Atari/Genesis Controller USB Adapter v0.2

2 layer board of 3.24 x 1.26 inches (82.2 x 32.0 mm)
Uploaded: October 11th 2014
Shared: October 11th 2014
Total Price: $20.40

USB adapter to allow use of Atari- or Genesis-style joysticks and control pads.

USB adapter to allow use of Atari- or Genesis-style joysticks and control pads.

Embeddable link to order this shared Project
