converter_2022-07-11

2 layer board of 0.91 x 0.88 inches (23.1 x 22.4 mm)
Uploaded: June 14, 2025
Shared: June 14, 2025
Total Price: $4.00

Last time I ordered this there were no slots drilled at J1 and J2 even though there were holes there when looking at the drill layer. I got another copy of the file from the author, though to me it looks the same.

Last time I ordered this there were no slots drilled at J1 and J2 even though there were holes there when looking at the drill layer. I got another copy of the file from the author, though to me it looks the same.

Embeddable link to order this shared Project

tcxo9d2_2023-01-19

2 layer board of 0.35 x 0.25 inches (8.9 x 6.4 mm)
Uploaded: January 19, 2023
Shared: April 03, 2023
Total Price: $0.40

for (tr)uSDX Y1 TCXO mod: two 0603 0.1uF’s (eg TMK107BJ104KA-T, or 0603YC104MAT2A, get 10) & one 27 MHz tcxo ie ECS-TXO-32CSMV-270-AN-TR; I’d solder tcxo first, it’s all very small

for (tr)uSDX Y1 TCXO mod: two 0603 0.1uF’s (eg TMK107BJ104KA-T, or 0603YC104MAT2A, get 10) & one 27 MHz tcxo ie ECS-TXO-32CSMV-270-AN-TR; I’d solder tcxo first, it’s all very small

Embeddable link to order this shared Project

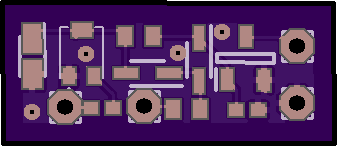

agc9Ctight_2021-04-15

2 layer board of 0.68 x 0.29 inches (17.2 x 7.4 mm)
Uploaded: April 15, 2021
Shared: April 26, 2021
Total Price: $0.95

titer QCX mini AGC

titer QCX mini AGC

Embeddable link to order this shared Project
