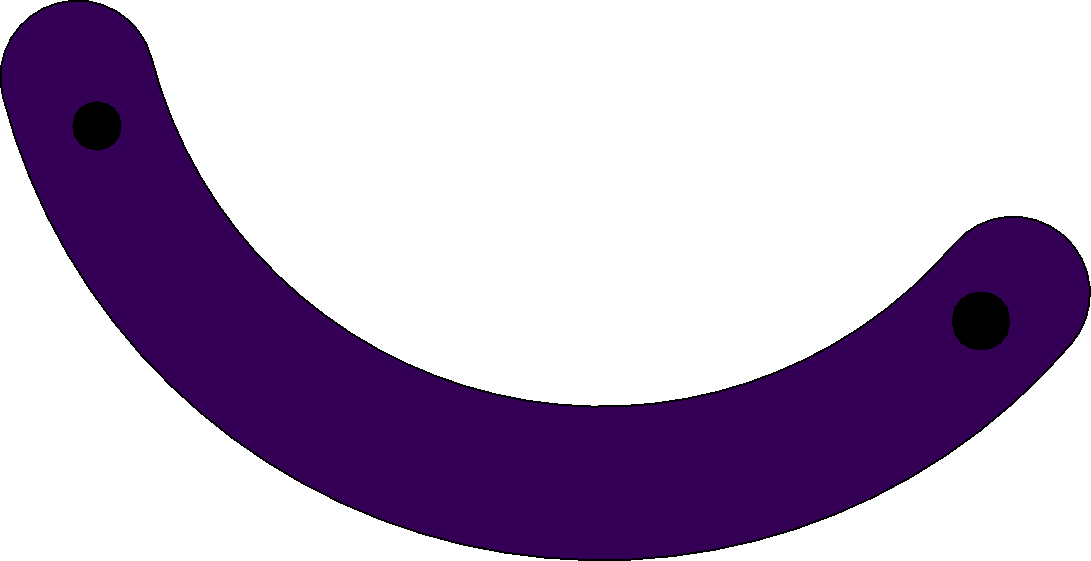

2 layer board of 2.18 x 1.12 inches (55.4 x 28.6 mm)
Uploaded:
April 30, 2020
Shared:
April 30, 2020
Total Price:
$12.25

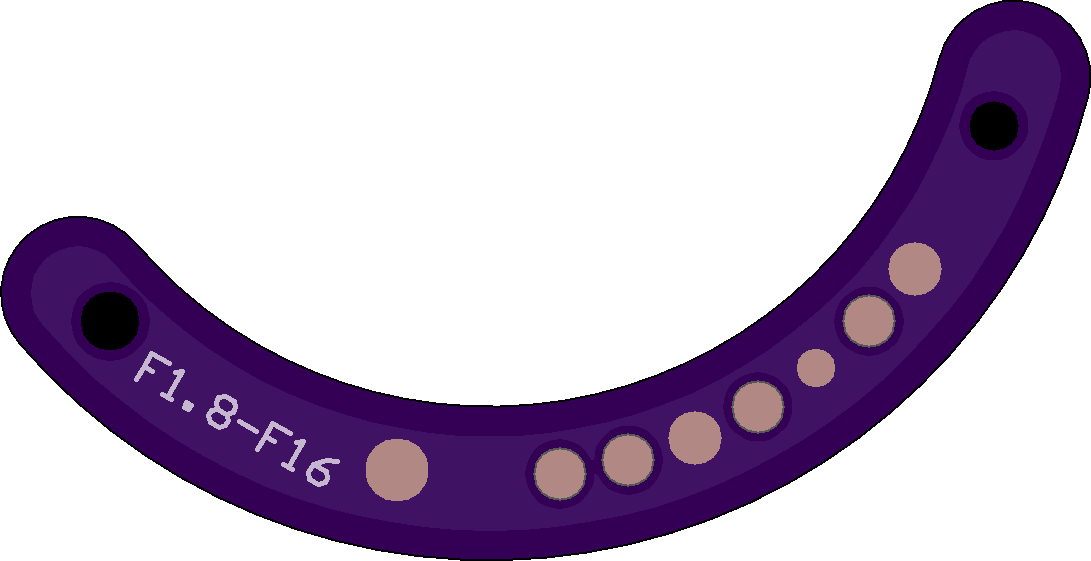

Pentax K mount Aperture simulator to M lenses for A mode for F1.7 (F1.8) fo F16
PCB project files, Gerber files in Circuit Studio format:
Github link
Possible variations:
| Pins | From | To |
| ———– |:—-…
Pentax K mount Aperture simulator to M lenses for A mode for F1.7 (F1.8) fo F16
PCB project files, Gerber files in Circuit Studio format:
Github link
Possible variations:
| Pins |
From |
To |
| 3 5 6 |
f 1.0 |
f 16 |
| 1 3 6 |
f 1.2 |
f 16 |
| 3 6 |
f 1.4 |
f 16 |
| 1 3 5 |
f 1.7 |
f 16 |
| 3 5 |
f 2.0 |
f 16 |
| 1 3 |
f 2.4 |
f 16 |
| 3 |
f 2.8 |
f 16 |
| 1 2 3 4 5 6 |
f 1.2 |
f 22 |
| 2 3 4 5 6 |
f 1.4 |
f 22 |
| 1 2 3 4 5 |
f 2.4 |
f 22 |
| 2 3 4 5 |
f 2.8 |
f 22 |
| 1 2 3 4 |
f 3.5 |
f 22 |
| 2 3 4 |
f 4.0 |
f 22 |
| 2 3 5 6 |
f 2.0 |
f 32 |
| 1 2 3 6 |
f 2.4 |
f 32 |
| 2 3 6 |
f 2.8 |
f 32 |
| 1 2 3 5 |
f 3.5 |
f 32 |
| 2 3 5 |
f 4.0 |
f 32 |
| 1 2 3 |
f 4.5 |
f 32 |
| 2 3 |
f 5.6 |
f 32 |
| 3 4 5 6 |
f 2.8 |
f 45 |
| 1 2 3 4 6 |
f 3.5 |
f 45 |
| 3 4 6 |
f 4.0 |
f 45 |
| 3 4 5 |
f 5.6 |
f 45 |
| 1 3 4 |
f 6.7 |
f 45 |
| 3 4 |
f 8 |
f 45 |
Show full description
