My Projects

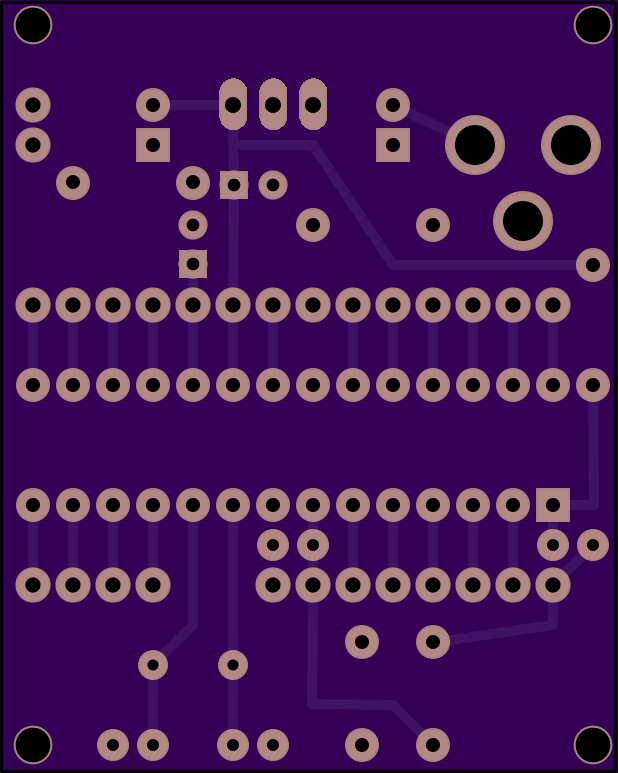

Kelduino 1.1

2 layer board of 1.55 x 1.93 inches (39.3 x 49.1 mm)
Uploaded: May 3rd 2015
Shared: May 3rd 2015
Total Price: $14.90

reset switch moved to facilitate bringing out RESET TX and RX lines. Provided space for JST connector at the top right (add 2 pin JST) to serve as 3 volt inp…

reset switch moved to facilitate bringing out RESET TX and RX lines. Provided space for JST connector at the top right (add 2 pin JST) to serve as 3 volt inp…

Embeddable link to order this shared Project

Non RGB LCD interface board for Arduino

2 layer board of 1.65 x 0.79 inches (42.0 x 20.0 mm)
Uploaded: April 12th 2015
Shared: April 16th 2015
Total Price: $6.50

simple interface board that connects non RGB LCD's to arduino simply and easily; Based on Budd Churchward's design which I didn't find shared on this site.

simple interface board that connects non RGB LCD's to arduino simply and easily; Based on Budd Churchward's design which I didn't find shared on this site.

Embeddable link to order this shared Project
