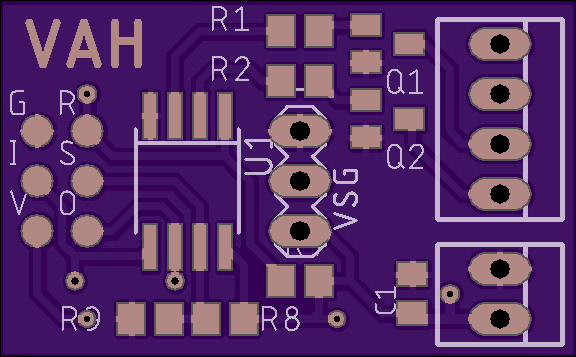

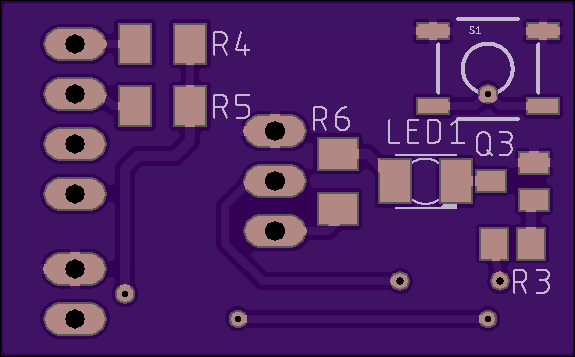

2 layer board of 1.15 x 0.71 inches (29.2 x 18.1 mm)
Uploaded:
April 30, 2018
Shared:
May 01, 2018
Total Price:
$4.05
An attiny85 board to work in conjunction with a radar-based presence detection module to turn on and off a couple of LED string lights to light up my entrance hallway.
The attiny85 sleeps if no presence is detected, the module however consumes around 2mA, which is significantly more than a PI…
An attiny85 board to work in conjunction with a radar-based presence detection module to turn on and off a couple of LED string lights to light up my entrance hallway.
The attiny85 sleeps if no presence is detected, the module however consumes around 2mA, which is significantly more than a PIR sensor, but with the added advantage of being able to detect persons at a larger and wider range while being hidden in an enclosure.
