Raspberry Pi CM4 Base Carrier v01

2 layer board of 2.37 x 2.17 inches (60.1 x 55.1 mm)
Uploaded: November 13th 2020
Shared: November 13th 2020
Total Price: $25.65

Example carrier board for the Raspberry Pi Compute Module 4. NOTE: v01 prototype, untested

Example carrier board for the Raspberry Pi Compute Module 4. NOTE: v01 prototype, untested

Embeddable link to order this shared Project

USB Male Type A Breakout Board

2 layer board of 0.41 x 0.71 inches (10.3 x 17.9 mm)
Uploaded: March 7th 2018
Shared: March 7th 2018
Total Price: $1.40

USB Male Type A breakout board for pairing with an Arduino Pro Micro.

USB Male Type A breakout board for pairing with an Arduino Pro Micro.

Embeddable link to order this shared Project

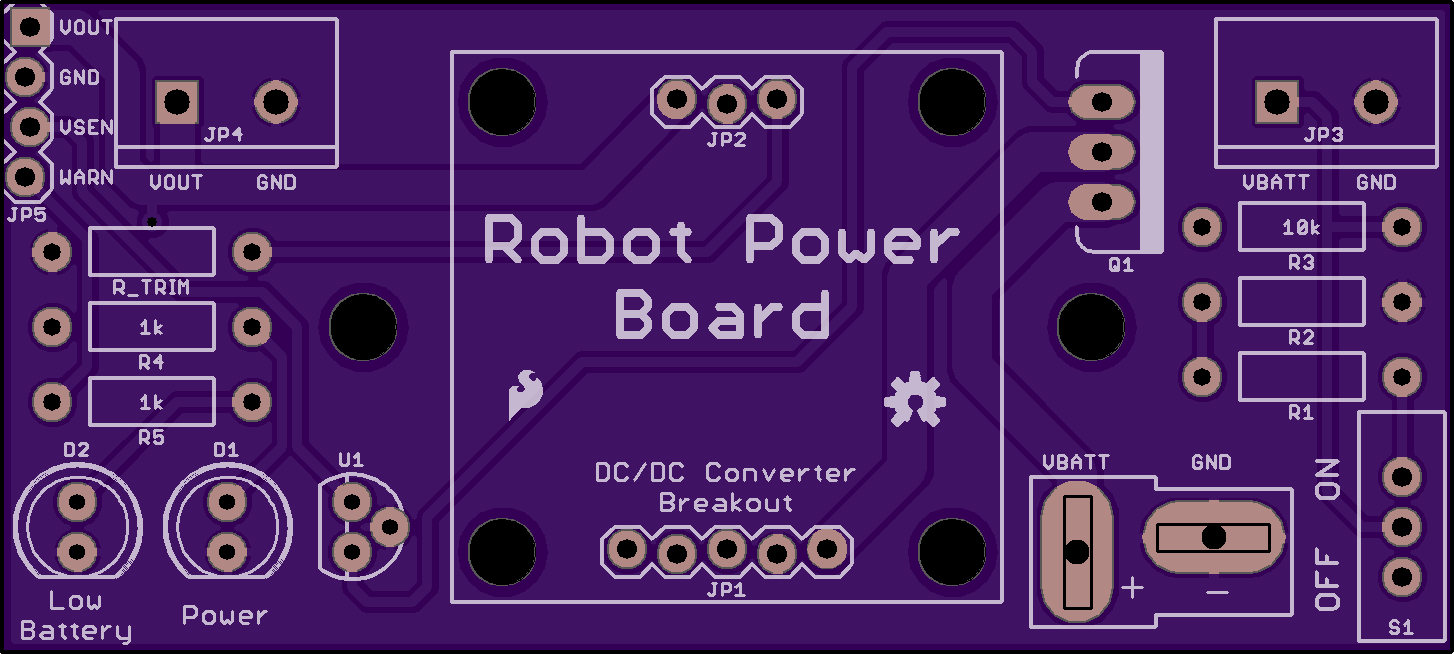

EdiBot Power Board

2 layer board of 2.91 x 1.31 inches (73.9 x 33.2 mm)
Uploaded: April 16th 2015
Shared: October 20th 2015
Total Price: $19.00

Robot power board that provides low voltage cutoff and DC/DC conversion.

Robot power board that provides low voltage cutoff and DC/DC conversion.

Embeddable link to order this shared Project

MiCS-4514 Breakout

2 layer board of 0.51 x 1.01 inches (13.0 x 25.7 mm)
Uploaded: October 17th 2014
Shared: October 22nd 2014
Total Price: $2.55

Breakout board for the MiCS-4514 CO and NOx sensor

Breakout board for the MiCS-4514 CO and NOx sensor

Embeddable link to order this shared Project

MiCS-2614 Breakout

2 layer board of 0.51 x 0.71 inches (13.0 x 18.0 mm)
Uploaded: October 17th 2014
Shared: October 22nd 2014
Total Price: $1.80

Breakout board for the MiCS-2614 O3 sensor

Breakout board for the MiCS-2614 O3 sensor

Embeddable link to order this shared Project
