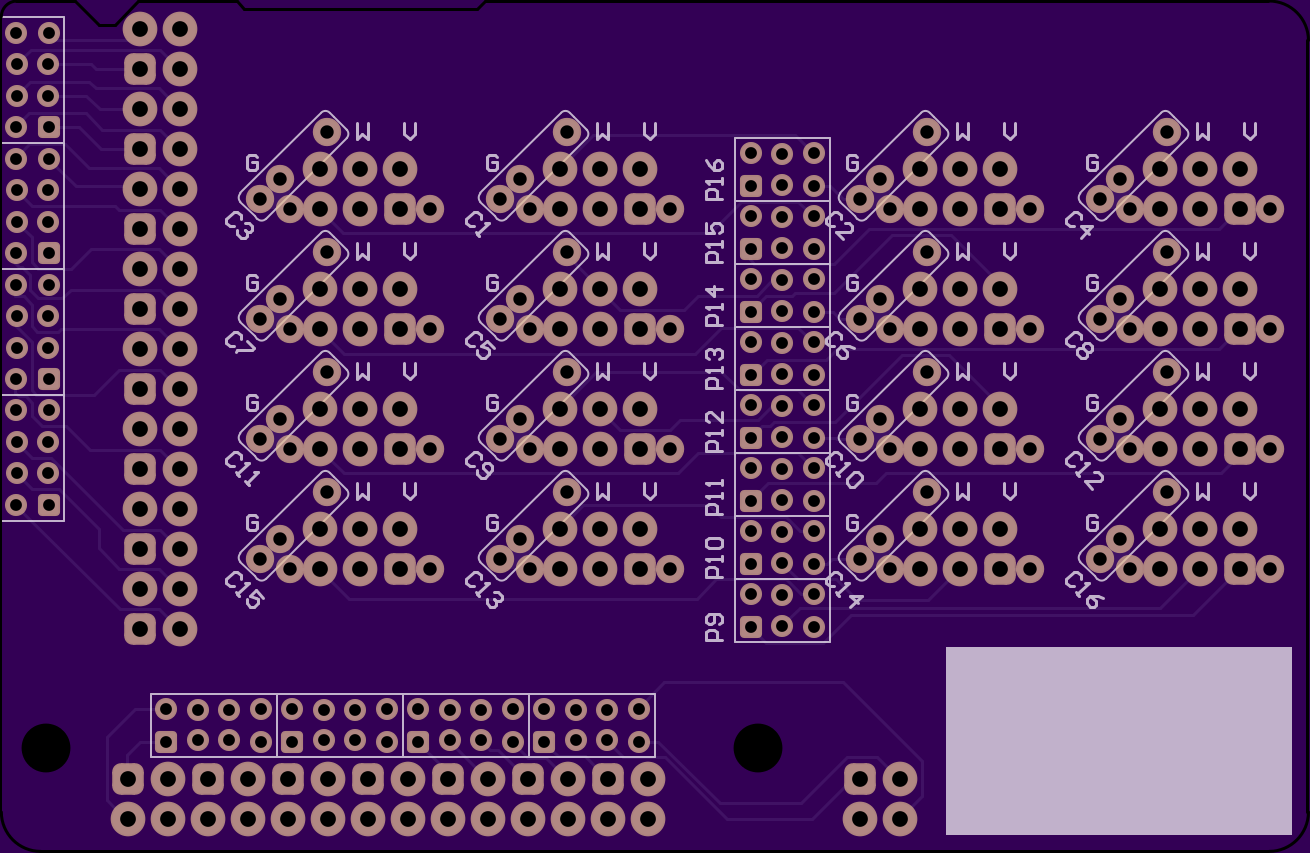

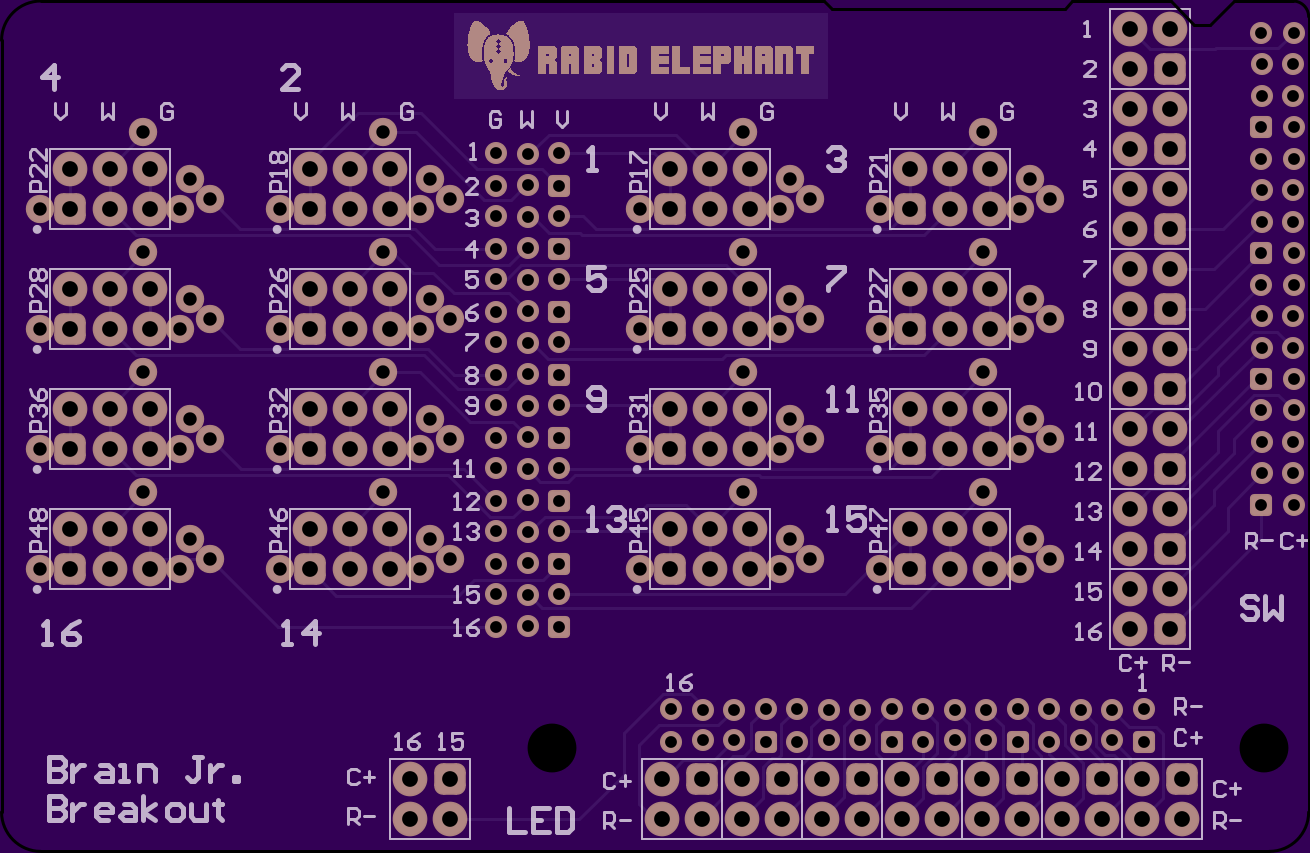

BrainJr_Breakout v1
2 layer board of 3.28 x 2.13 inches (83.2 x 54.2 mm)
Uploaded:
July 29th 2015
Shared:
January 23rd 2018
Total Price:
$34.95
Main purpose is to break everything out to 0.1" and 2x3 IDCs for analogues for easy connectivity to pots, etc. Use pot breakouts for other end.
Main purpose is to break everything out to 0.1" and 2x3 IDCs for analogues for easy connectivity to pots, etc. Use pot breakouts for other end.

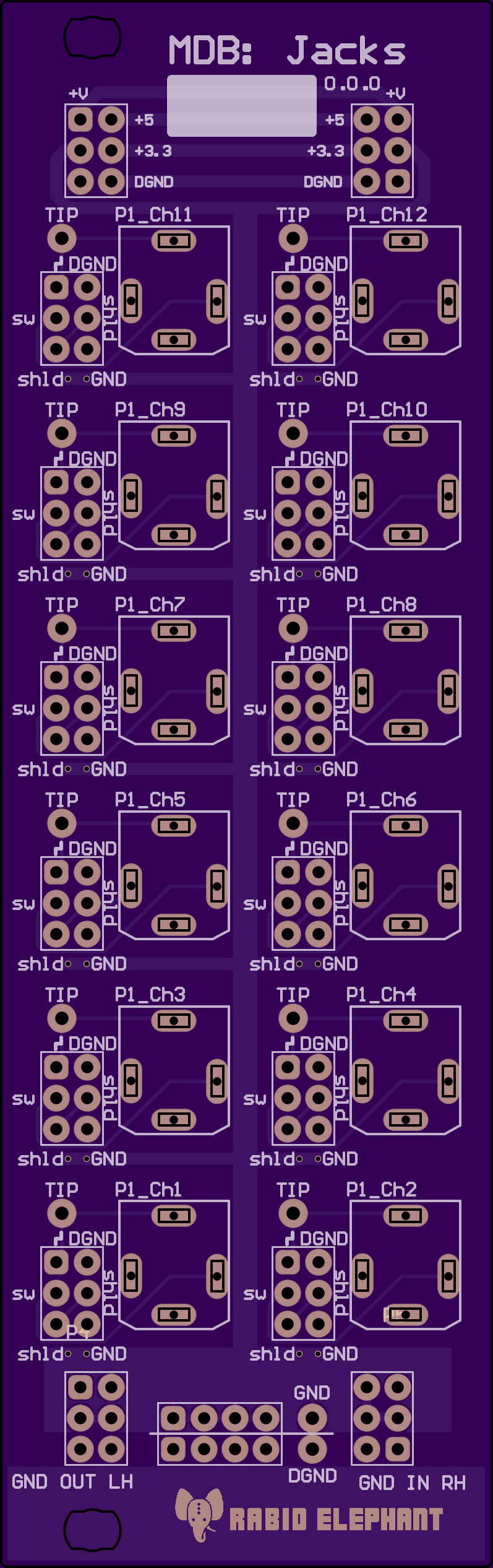

MDB_JackBoard_0_0_0
2 layer board of 1.60 x 5.07 inches (40.5 x 128.7 mm)
Uploaded:
September 29th 2015
Shared:
January 19th 2016
Total Price:
$40.40
This is part of our "Modular Dev Board" system for the Eurorack format. We use these internally for rapidly prototyping/testing modules before committing to final prototype modules.
This module features 3.5mm SC330 jacks (you can find these at Erthernvar).
This is part of our "Modular Dev Board" system for the Eurorack format. We use these internally for rapidly prototyping/testing modules before committing to final prototype modules.
This module features 3.5mm SC330 jacks (you can find these at Erthernvar).
