Shared Projects by PhantomicLabs

Shared Projects by PhantomicLabs

RS-232 Serial Tap - CrossConnect v1

2 layer board of 2.70 x 1.29 inches (68.6 x 32.7 mm)
Uploaded: September 3rd 2018
Shared: September 3rd 2018
Total Price: $17.35

RS-232 Serial Tap - CrossConnect v1

Part 1 of 2.

RS-232 Serial Tap - CrossConnect v1

Part 1 of 2.

Embeddable link to order this shared Project

CNC Limit Switch Module v1.0

2 layer board of 1.30 x 1.44 inches (33.0 x 36.5 mm)
Uploaded: July 5th 2018
Shared: July 5th 2018
Total Price: $9.30

CNC Limit Switch Module v1.0 for 1610 CNC engraver. Derived from the following design.

https://github.com/gnea/grbl/wiki/Wiring-Limit-Switches

CNC Limit Switch Module v1.0 for 1610 CNC engraver. Derived from the following design.

https://github.com/gnea/grbl/wiki/Wiring-Limit-Switches

Embeddable link to order this shared Project

IV-3a VFD Breakout w/ RGB LED v1.1

2 layer board of 0.91 x 0.91 inches (23.1 x 23.1 mm)
Uploaded: July 1st 2018
Shared: July 1st 2018
Total Price: $4.10

IV-3a VFD Breakout w/ RGB LED v1.1

Filament: 1.7V/AC 10mA Grid/Segments: 30V/DC 50mA

RGB LED is standard 3535 neopixel.

Made this for my own testing, but this is the second iteration. Can maybe be used with IV-6 VFD tubes as well, but haven't tested that yet. Enjoy.

IV-3a VFD Breakout w/ RGB LED v1.1

Filament: 1.7V/AC 10mA Grid/Segments: 30V/DC 50mA

RGB LED is standard 3535 neopixel.

Made this for my own testing, but this is the second iteration. Can maybe be used with IV-6 VFD tubes as well, but haven't tested that yet. Enjoy.

Embeddable link to order this shared Project

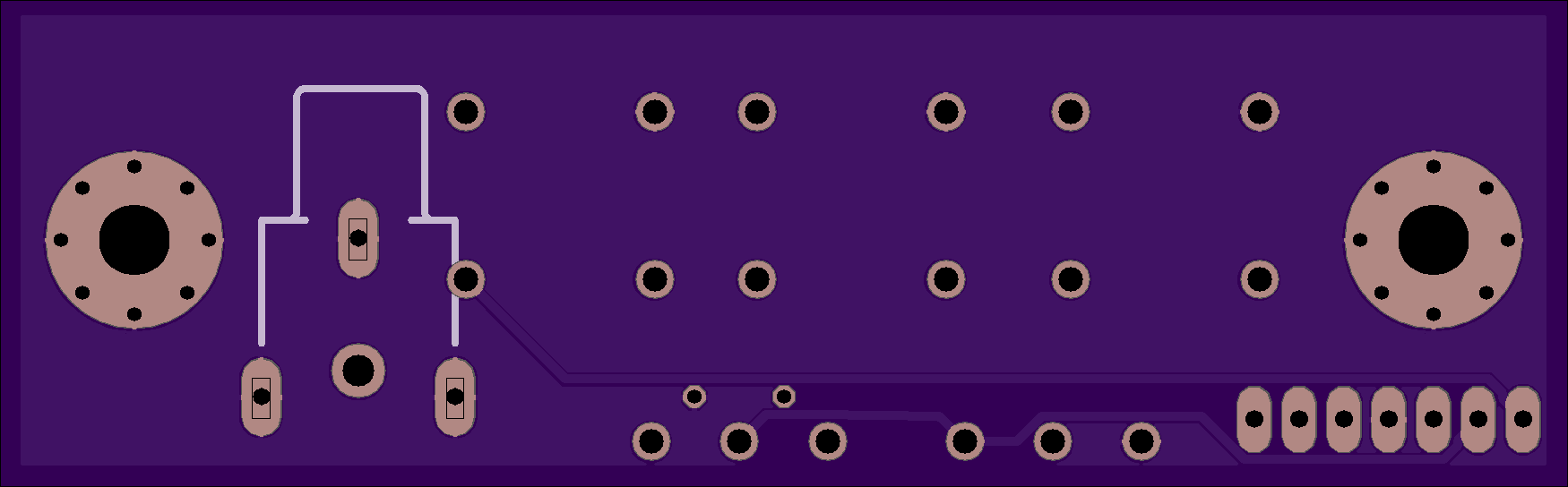

devilCaster v1 - Connector board for Telecaster Triple Deluxe (UNTESTED)

2 layer board of 3.50 x 1.09 inches (88.9 x 27.6 mm)
Uploaded: September 16th 2017
Shared: September 16th 2017
Total Price: $19.00

devilCaster - Connector board for Telecaster Triple Deluxe. Factory HHH wiring with DP3T pickup switch. All the device connections are done on the board, and mounted inside the body cavity. Made this as a base for other circuit level modifications. More to come.

devilCaster - Connector board for Telecaster Triple Deluxe. Factory HHH wiring with DP3T pickup switch. All the device connections are done on the board, and mounted inside the body cavity. Made this as a base for other circuit level modifications. More to come.

Embeddable link to order this shared Project

sourDough plcc44 breakout (UNTESTED)

2 layer board of 1.20 x 2.24 inches (30.5 x 56.8 mm)
Uploaded: September 9th 2017
Shared: September 16th 2017
Total Price: $13.40

PLCC-44 breakout

PLCC-44 breakout

Embeddable link to order this shared Project
