MCP23008I2C2ChTHTr1

Top
Bottom

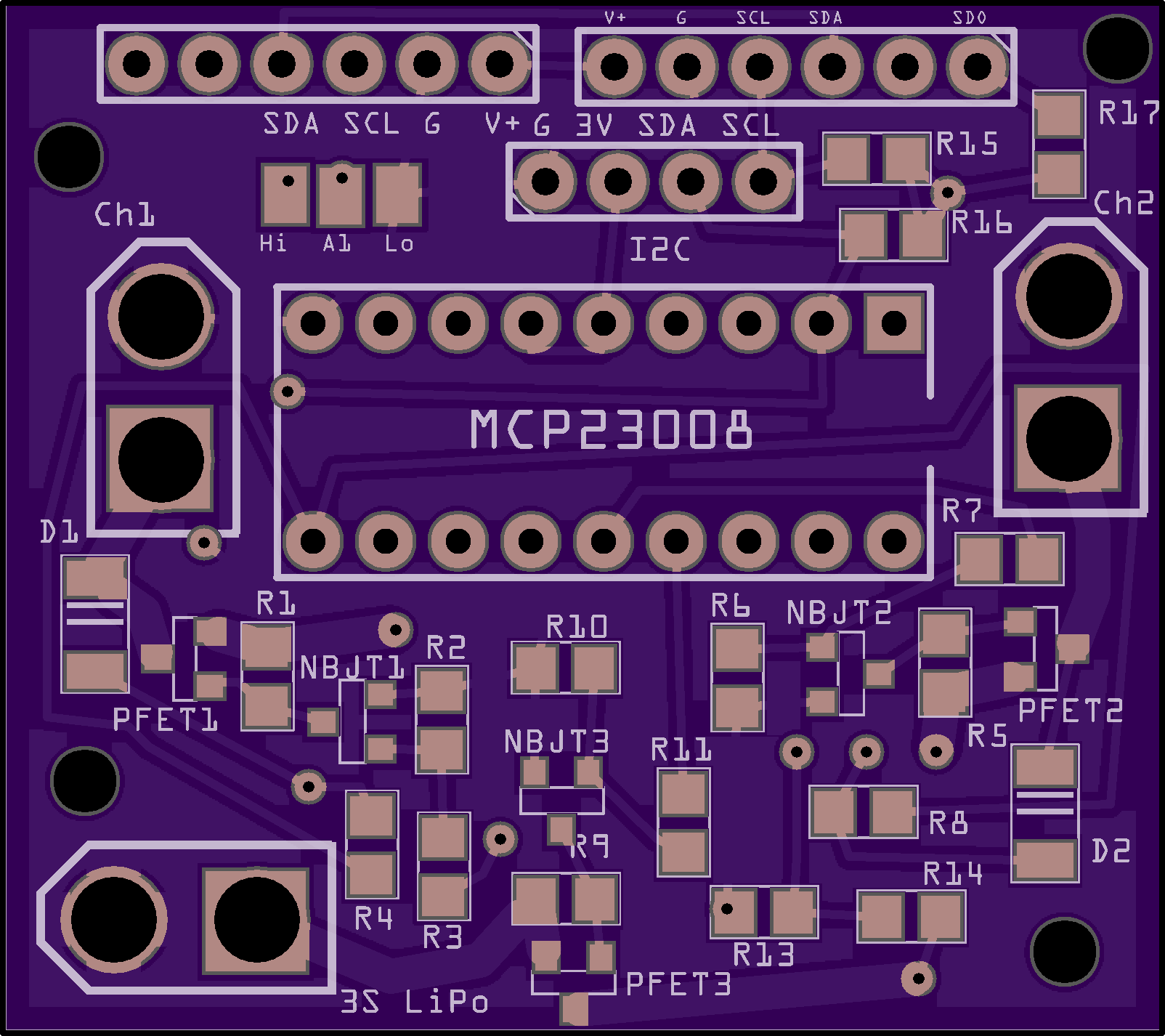

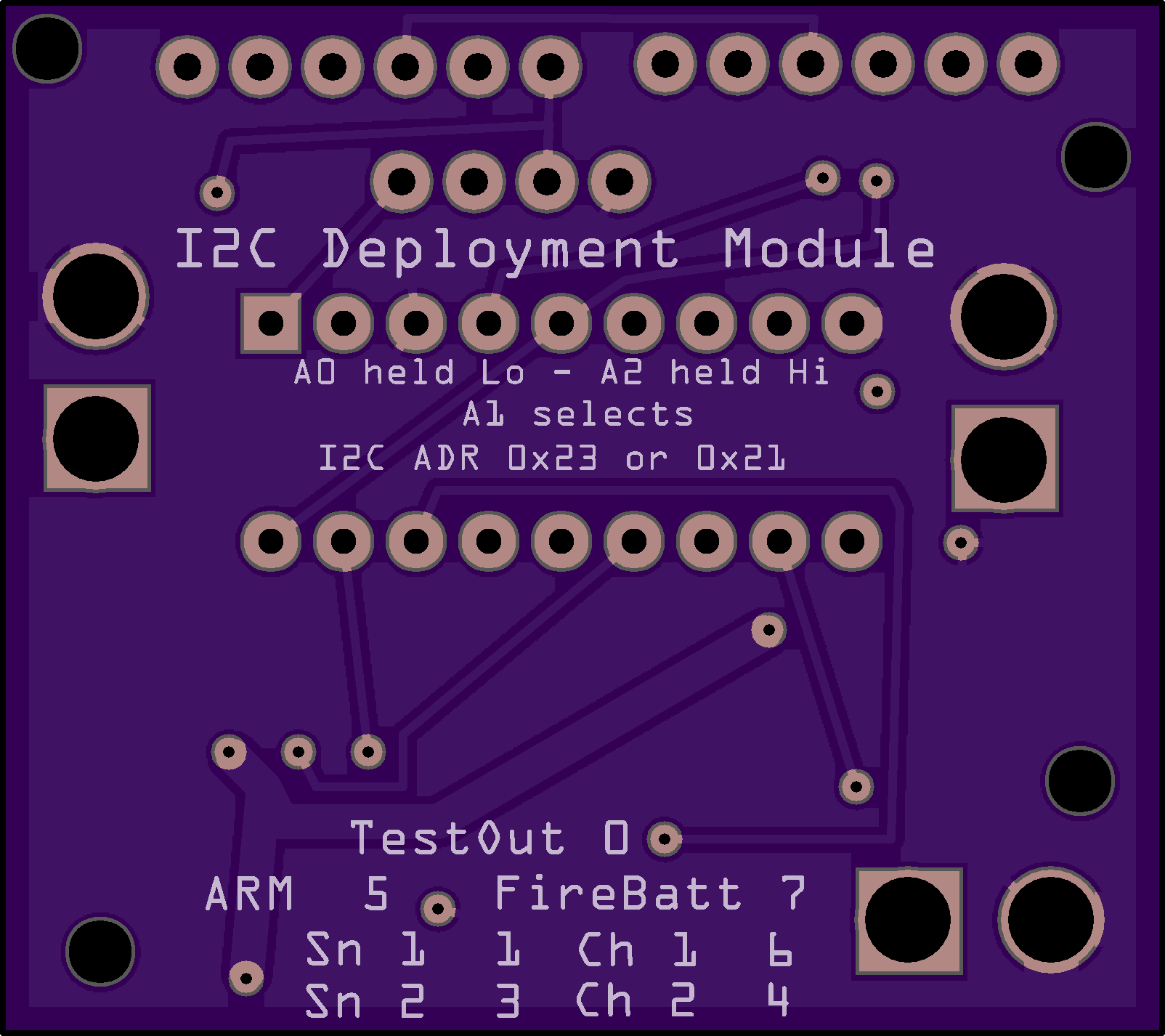

2 layer board of 1.60 x 1.42 inches (40.6 x 36.1 mm)
Uploaded: August 08, 2025
Shared: August 08, 2025
Total Price: $11.30

I2C dual deployment actuator for rocket or drone use. Has bookmatched headers for HW-611 breakout of BMP280. R1 15kΩ R2 4.7kΩ R3 3.0kΩ R4 15kΩ R5 15kΩ R6 4.7kΩ R7 3.0kΩ R8 15kΩ R9 15kΩ R10 4.7k R11 3.0kΩ R13 470Ω R14 74kΩ R15 10kΩ R16 10kΩ R17 10kΩ D1,2 Rectifie…

Show full description

I2C dual deployment actuator for rocket or drone use. Has bookmatched headers for HW-611 breakout of BMP280. R1 15kΩ R2 4.7kΩ R3 3.0kΩ R4 15kΩ R5 15kΩ R6 4.7kΩ R7 3.0kΩ R8 15kΩ R9 15kΩ R10 4.7k R11 3.0kΩ R13 470Ω R14 74kΩ R15 10kΩ R16 10kΩ R17 10kΩ D1,2 Rectifie…

Show full description

Top
Bottom
  • Actions

      Ordering shared project

      Hey there! Before ordering, make sure you have all the info you need to complete and use this design. This usually means a component list, and sometimes additional information such as assembly notes, source code, or usage guides.
      Since this is a project designed by a community member, it may contain design errors that prevent it from working as intended. OSH Park cannot place any guarantees about the functionality or correctness of the design.
      Order Board
    • Order Board
    • Download
    • Permalink
    • Embed link
Embeddable link to order this shared Project
