Teeny-Um. Tiny Open Xenium

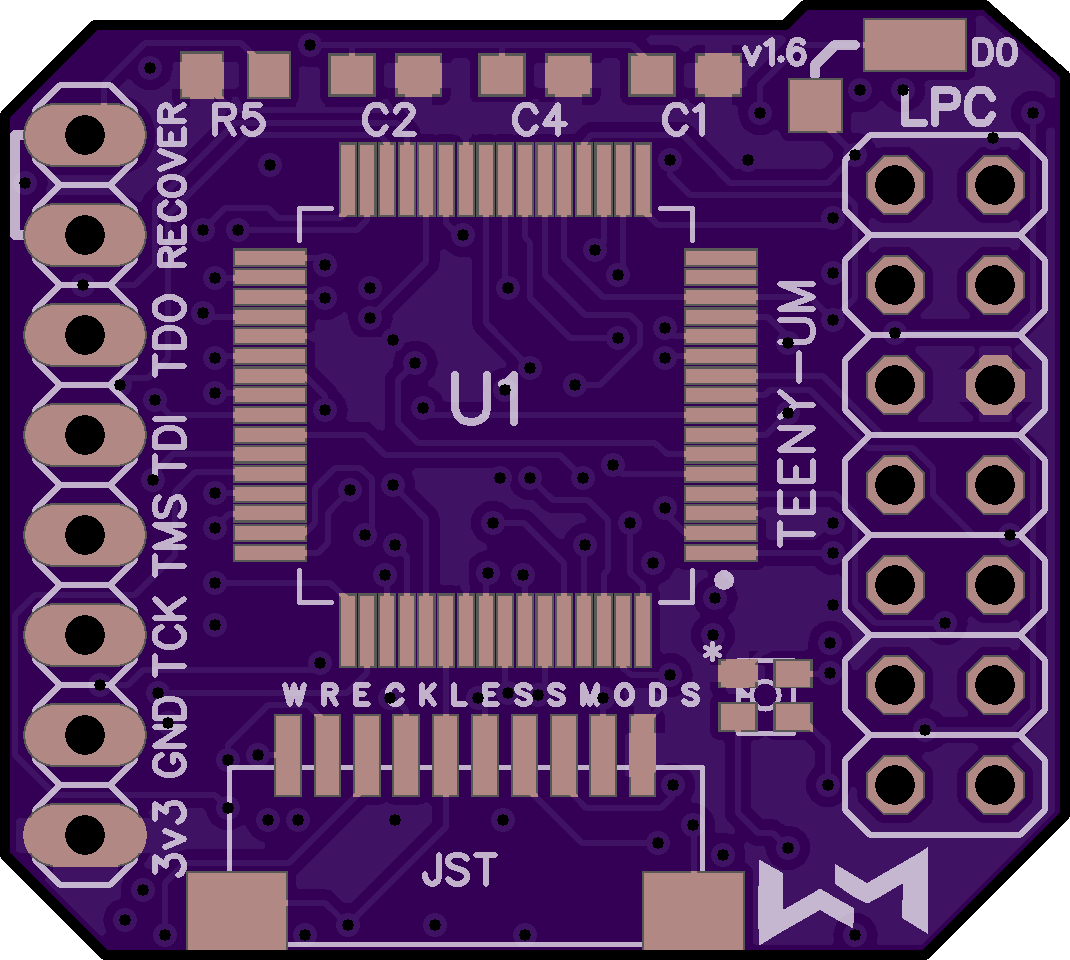

Top

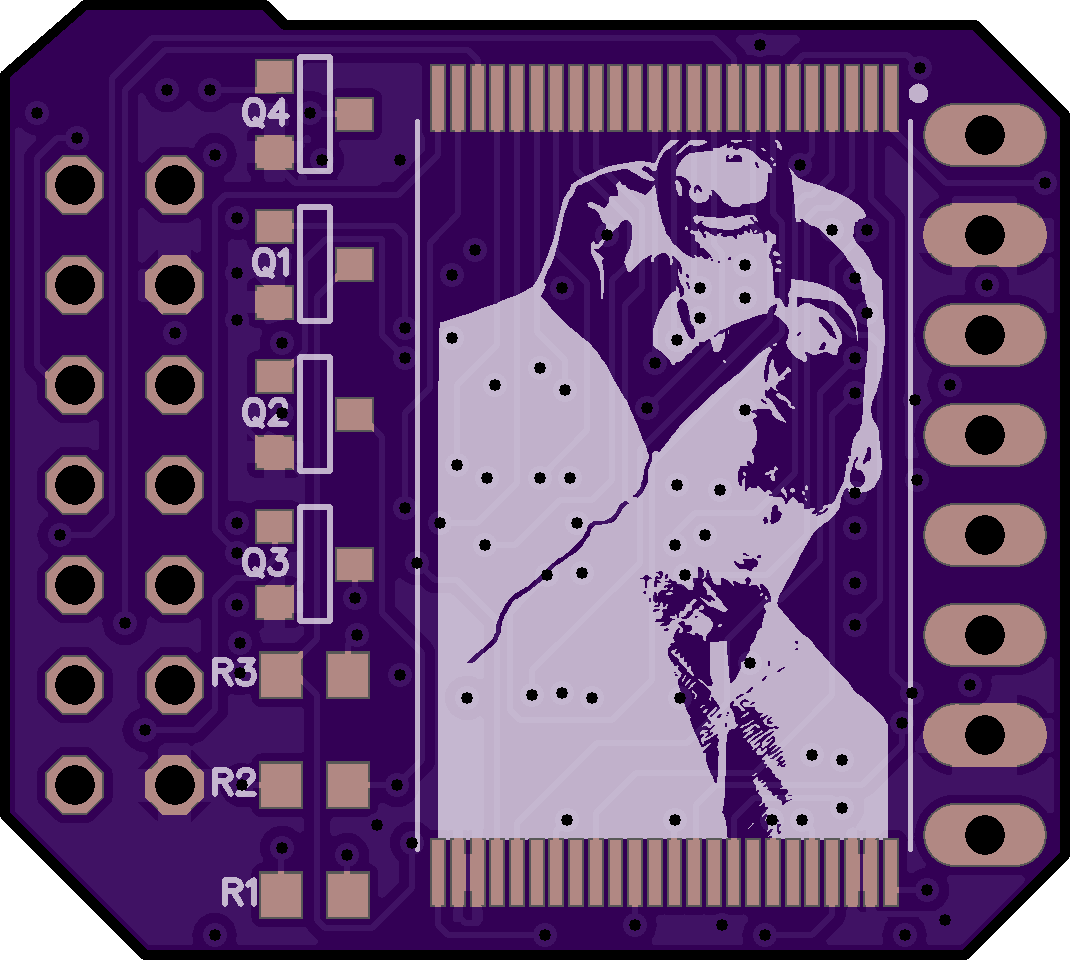

Bottom

4 layer board of 1.06 x 0.95 inches (27.0 x 24.2 mm)
Uploaded: July 31, 2022
Shared: July 31, 2022
Total Price: $10.10

Tiny Open Xenium BOM and assembly instructions at Ryzee119's GitHub Layout is different from the original, but components are labelled the same, and programming header is the same as original. https://github.com/Ryzee119/OpenXenium

Make sure to order in 4 layers

Tiny Open Xenium BOM and assembly instructions at Ryzee119's GitHub Layout is different from the original, but components are labelled the same, and programming header is the same as original. https://github.com/Ryzee119/OpenXenium

Make sure to order in 4 layers

Top
Bottom
