EKG crap - prototype
2 layer board of 0.86 x 0.71 inches (21.7 x 17.9 mm)
Uploaded:
September 06, 2014
Shared:
September 06, 2014
Total Price:
$3.00
A little 2 sided board which gives an analog output of an EKG signal on one side, has an uC (with a 12 bit ADC) and a pin strip on the other for random stuff. uC is C8051F411. AFE is AD8232. Will release details when tested.
A little 2 sided board which gives an analog output of an EKG signal on one side, has an uC (with a 12 bit ADC) and a pin strip on the other for random stuff. uC is C8051F411. AFE is AD8232. Will release details when tested.
12V LED strip dimmer - prototype
2 layer board of 1.23 x 0.42 inches (31.3 x 10.8 mm)
Uploaded:
September 04, 2014
Shared:
September 06, 2014
Total Price:
$2.60
Yet another one! uC is C8051F411. More information will come when it's tested.
Yet another one! uC is C8051F411. More information will come when it's tested.
Wheel lights thing - prototype

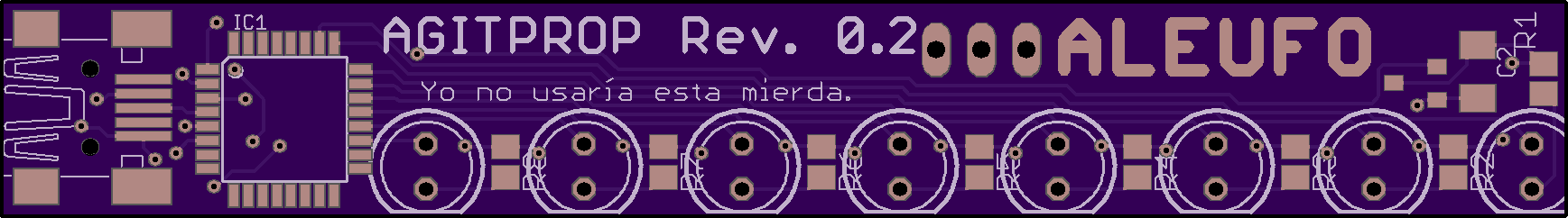

2 layer board of 3.47 x 0.48 inches (88.2 x 12.3 mm)
Uploaded:
September 03, 2014
Shared:
September 03, 2014
Total Price:
$8.35
Yet another one of these thingies that display stuff on a wheel while it spins. uC is C8051F320. A magnetic switch is used to guess the angular rate. The large pads are for a surface mount battery holder. Cheers.
Yet another one of these thingies that display stuff on a wheel while it spins. uC is C8051F320. A magnetic switch is used to guess the angular rate. The large pads are for a surface mount battery holder. Cheers.
