PICOTNCEMU

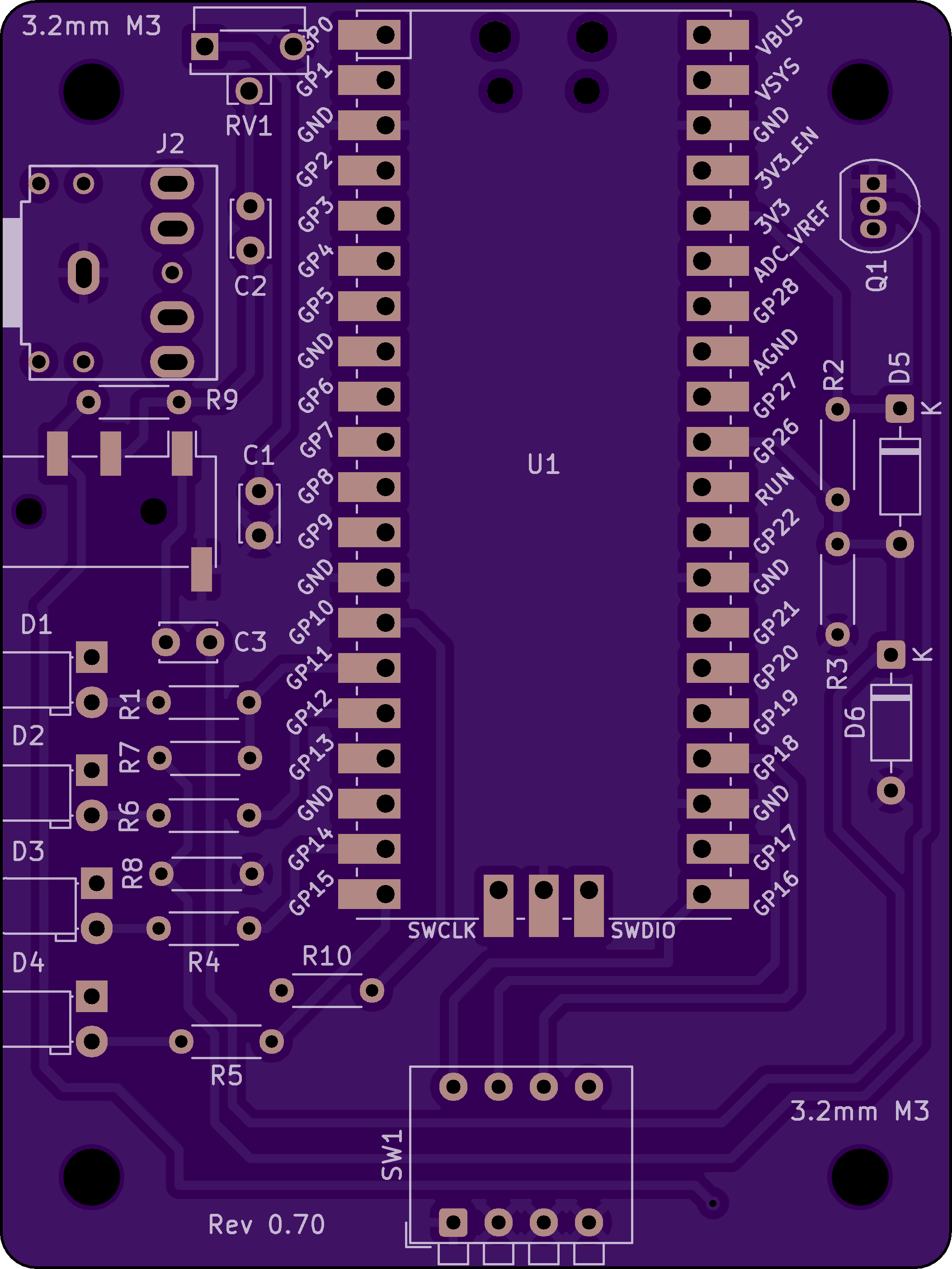

Top

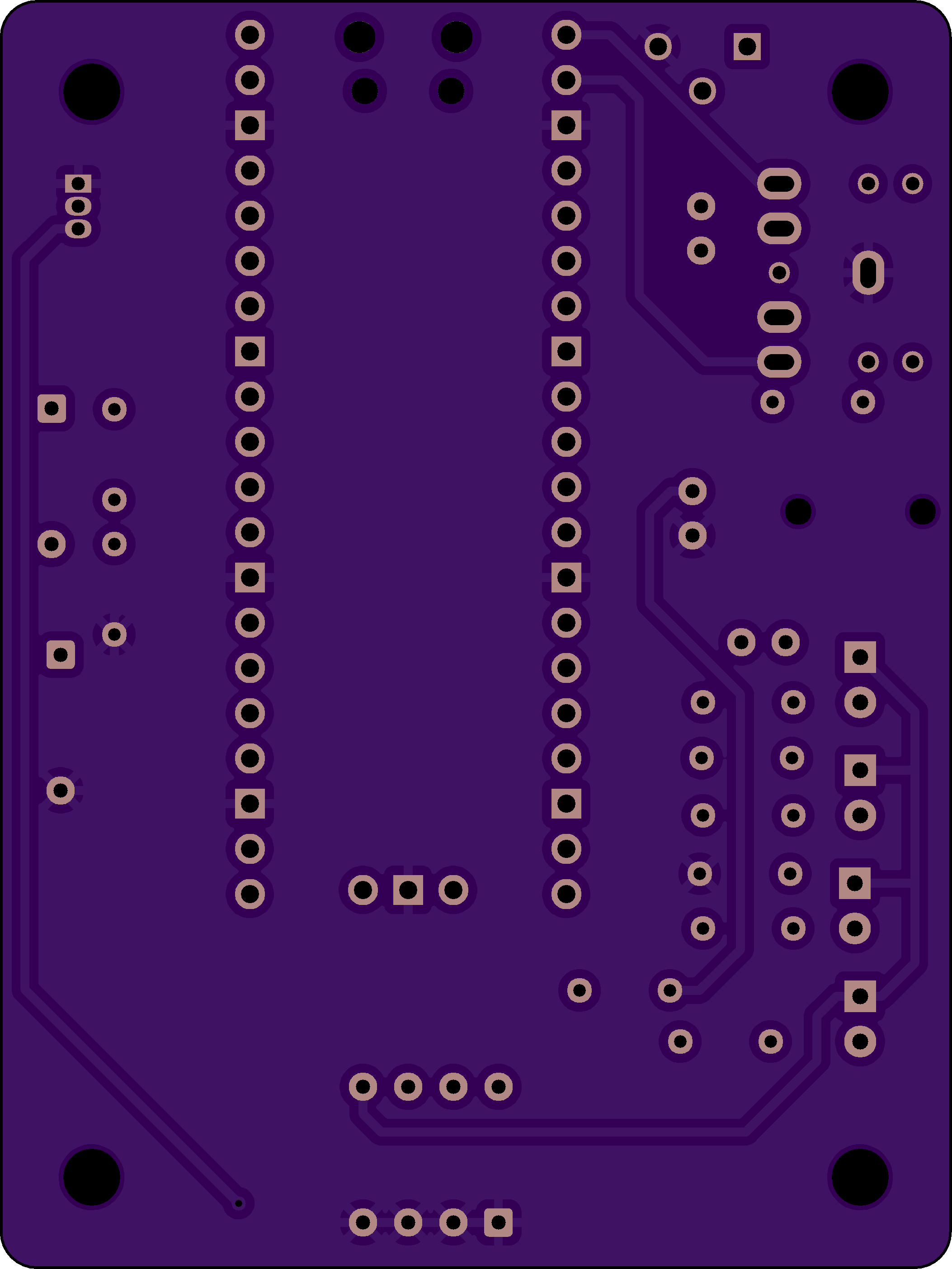

Bottom

2 layer board of 2.10 x 2.80 inches (53.3 x 71.1 mm)
Uploaded: November 18, 2025
Shared: November 28, 2025
Total Price: $29.40

This is the revised V.70 pcb for the pico_tnc+emu project for amateur packet radio. It includes the 100 ohm resistor from pwm output.

This is the revised V.70 pcb for the pico_tnc+emu project for amateur packet radio. It includes the 100 ohm resistor from pwm output.

Top
Bottom
