K-rAd Casio Trigger-Mate.zip
2 layer board of 1.38 x 3.86 inches (35.1 x 98.1 mm)
Uploaded:
December 1st 2017
Shared:
March 13th 2023
Total Price:
$26.65
an interface for 5v trigger outputs to the Casio drum stick inputs on the Casio MT series synths. still not tested
an interface for 5v trigger outputs to the Casio drum stick inputs on the Casio MT series synths. still not tested
AliceStereoControlTWOREV7
2 layer board of 0.79 x 4.32 inches (20.1 x 109.8 mm)
Uploaded:
February 9th 2021
Shared:
March 13th 2023
Total Price:
$17.10
the control panel pcb for ALICE 3 dual gang pots, a 2D2T switch, and 4 jacks could be used for any circuit.
the control panel pcb for ALICE 3 dual gang pots, a 2D2T switch, and 4 jacks could be used for any circuit.
AliceStereoLimiterTWOREV8
2 layer board of 1.66 x 4.29 inches (42.1 x 108.8 mm)
Uploaded:
February 9th 2021
Shared:
March 13th 2023
Total Price:
$35.50
A stereo limiter based on a circuit from the classic british Alice console. Essentially the first portable recording console that almost all current mixers are based on. e.g. allen and heath, sound craft, mackie
A stereo limiter based on a circuit from the classic british Alice console. Essentially the first portable recording console that almost all current mixers are based on. e.g. allen and heath, sound craft, mackie

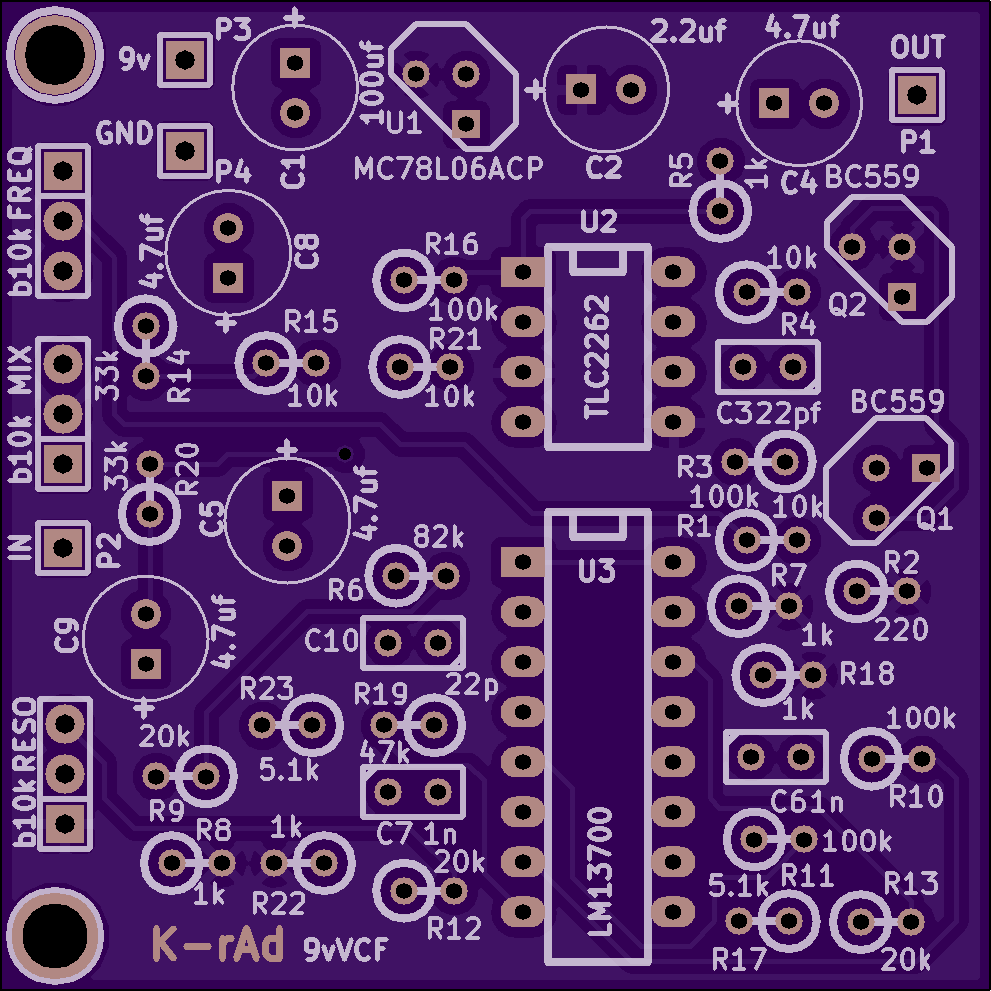

K-rAd_9vVCF
2 layer board of 1.98 x 1.98 inches (50.4 x 50.4 mm)
Uploaded:
April 15th 2014
Shared:
November 14th 2014
Total Price:
$19.65
LPF from ericarcher.net A low pass filter that runs on a 9 volt battery and sounds great!
LPF from ericarcher.net A low pass filter that runs on a 9 volt battery and sounds great!

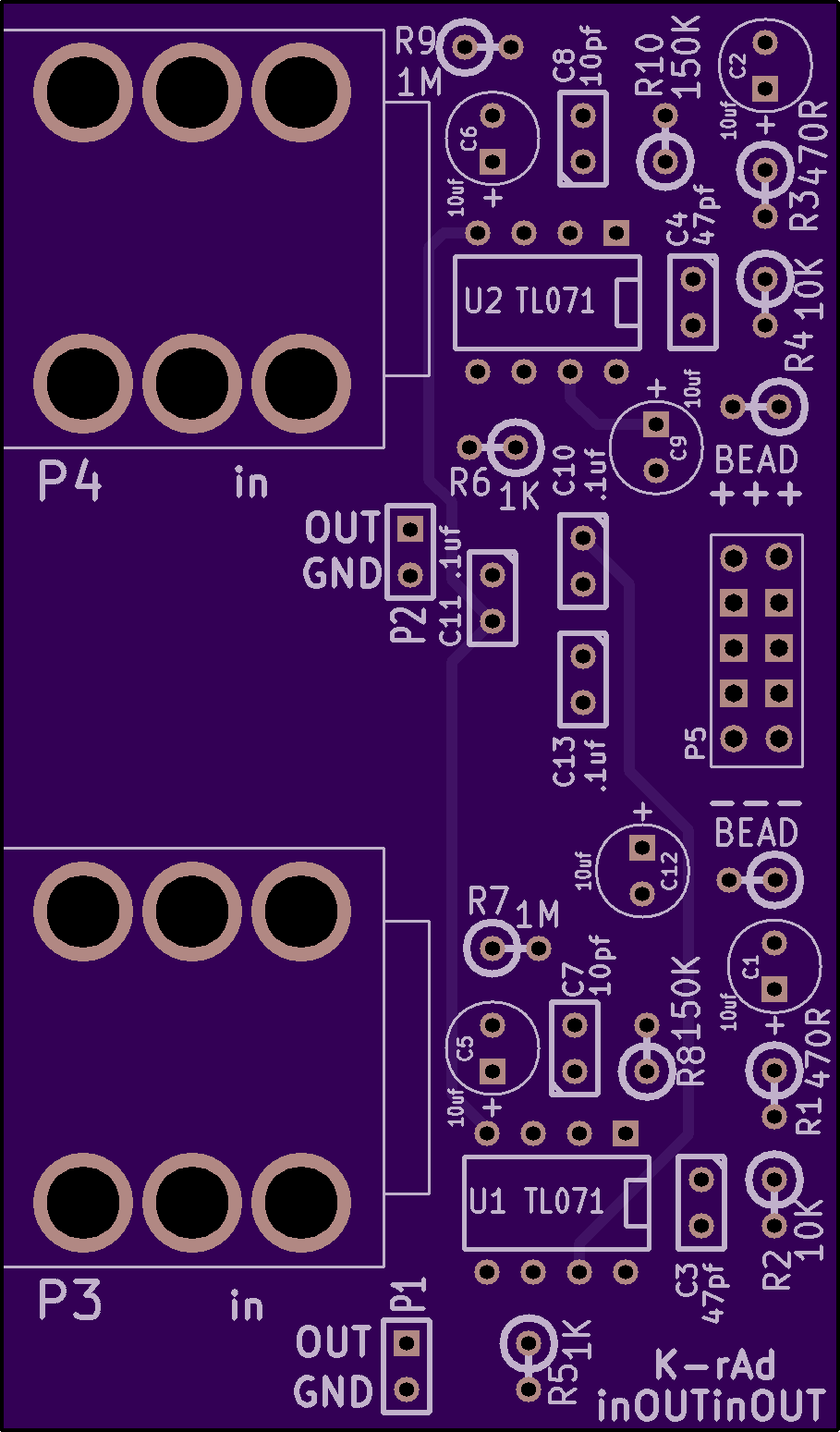

inOUTinOUT
2 layer board of 1.82 x 3.10 inches (46.2 x 78.7 mm)
Uploaded:
August 8th 2014
Shared:
November 14th 2014
Total Price:
$28.15
output attenuator and external input amplifier for guitar pedal interfacing
output attenuator and external input amplifier for guitar pedal interfacing
