HIH8120-breakout-1.1.brd
2 layer board of 0.51 x 1.18 inches (12.9 x 29.9 mm)
Uploaded:
September 29th 2017
Shared:
July 19th 2018
Total Price:
$2.95

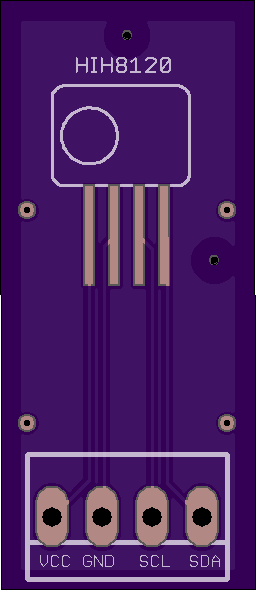

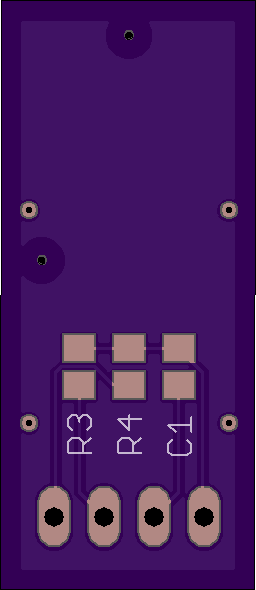

Breakout board for Honeywell HIH8120/HIH8121 Temperature and Humidity sensor
Breakout board for Honeywell HIH8120/HIH8121 Temperature and Humidity sensor

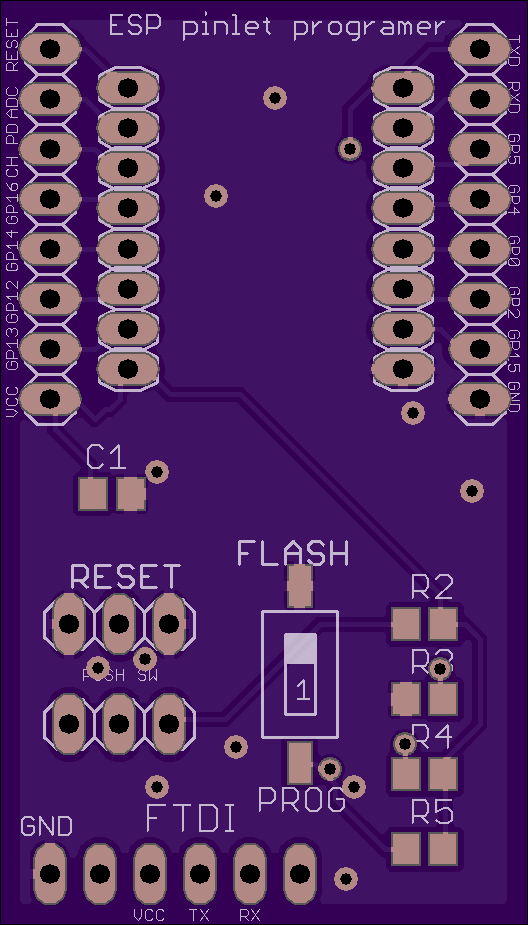

ESP-82266 pinlet programer
2 layer board of 1.05 x 1.85 inches (26.8 x 47.0 mm)
Uploaded:
February 26th 2017
Shared:
May 2nd 2018
Total Price:
$9.70
Extension to the ESPARDUCAM project pinlet board which provides a convenient conversion from the ESP8266 boards which have 2mm pitch pin holes to a 2.54mm standard breadboard pitch size. The extension is the FTDI connector and reset and flash mode switches.
Extension to the ESPARDUCAM project pinlet board which provides a convenient conversion from the ESP8266 boards which have 2mm pitch pin holes to a 2.54mm standard breadboard pitch size. The extension is the FTDI connector and reset and flash mode switches.
ESP pinlet board for ESP8266
2 layer board of 1.02 x 0.83 inches (25.9 x 21.0 mm)
Uploaded:
February 24th 2017
Shared:
February 24th 2017
Total Price:
$4.20
This board provides a convenient conversion from the ESP8266 boards which have 2mm pitch pin holes to a 2.54mm standard breadboard pitch size. The pinlet board is from the ESPARDUCAM Project by kanflo. Pogo pins can…
Show full description
This board provides a convenient conversion from the ESP8266 boards which have 2mm pitch pin holes to a 2.54mm standard breadboard pitch size. The pinlet board is from the ESPARDUCAM Project by kanflo. Pogo pins can…
