My Projects

uvc_magnet_interface.kicad_pcb

2 layer board of 2.37 x 4.50 inches (60.2 x 114.3 mm)
Uploaded: September 9th 2021
Shared: September 9th 2021
Total Price: $53.25

Magnet Interface Board (UVC)

Magnet Interface Board (UVC)

Embeddable link to order this shared Project

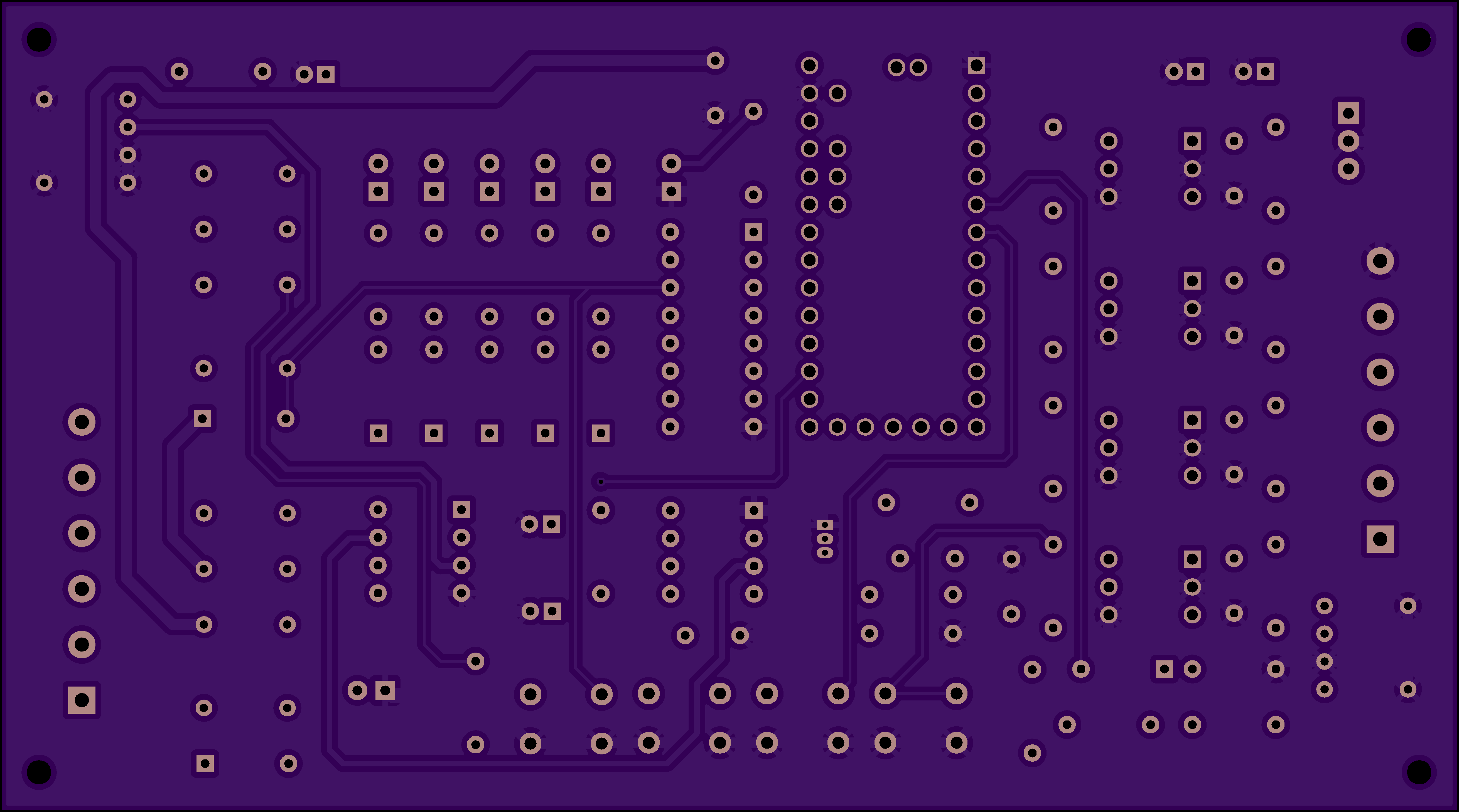

csb_control.kicad_pcb

2 layer board of 6.30 x 3.94 inches (160.0 x 100.0 mm)
Uploaded: September 1st 2021
Shared: September 1st 2021
Total Price: $124.00

Core Snubber Control board

Core Snubber Control board

Embeddable link to order this shared Project
